formstack 2.5.0

A cross-platform ResearchKit and ODK alternative for Flutter. Build dynamic forms and surveys with 35 input types, 35+ validators, repeat groups, offline save, and multi-language.

FormStack

A cross-platform alternative to Apple ResearchKit for Flutter. Build dynamic forms, surveys, and research questionnaires from Dart objects or JSON -- on iOS, Android, Web, macOS, Windows, and Linux.

35 input types, 9 step types, 35+ validators, conditional navigation, structured consent flows, answer review, progress tracking, and full extensibility. Every ResearchKit UI pattern can be reproduced with FormStack.

Why FormStack over ResearchKit?

	ResearchKit	FormStack
Platforms	iOS only	iOS, Android, Web, macOS, Windows, Linux
Language	Swift/Objective-C	Dart (Flutter)
Form source	Code only	Dart objects or JSON
Input types	~15 answer formats	35 input types
Validators	Basic (length, regex)	35+ built-in + custom subclassing
Extensibility	Subclass ORKStep	Subclass FormStep, BaseStepView, ResultFormat, RelevantCondition
Results	ORKTaskResult hierarchy	TaskResult/StepResult with timestamps + JSON export
Consent flow	ORKConsentDocument	ConsentStep with sections + agreement
Review step	ORKReviewStep	ReviewStep with formatted answer display
Progress bar	Built-in	Built-in with step counter

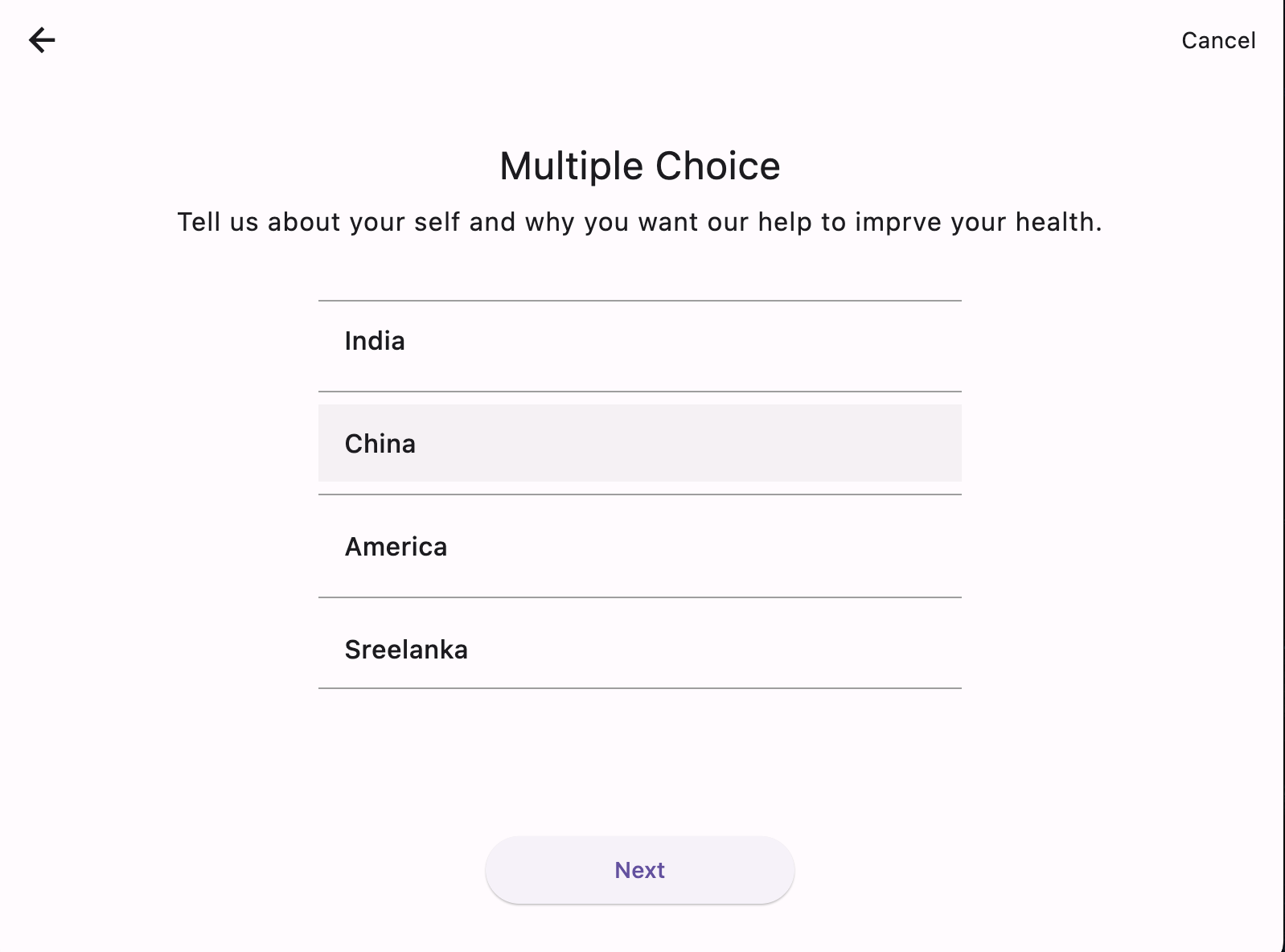

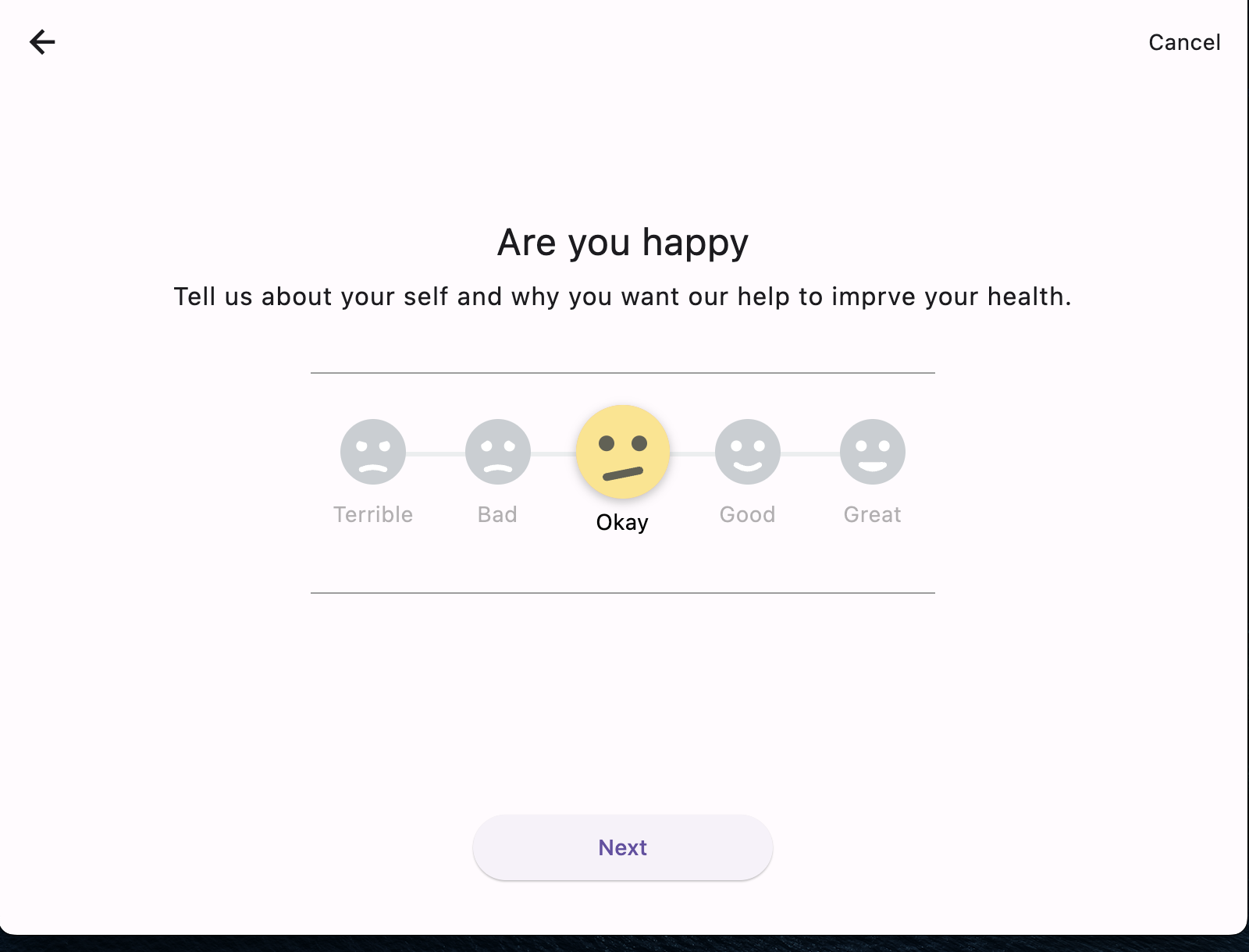

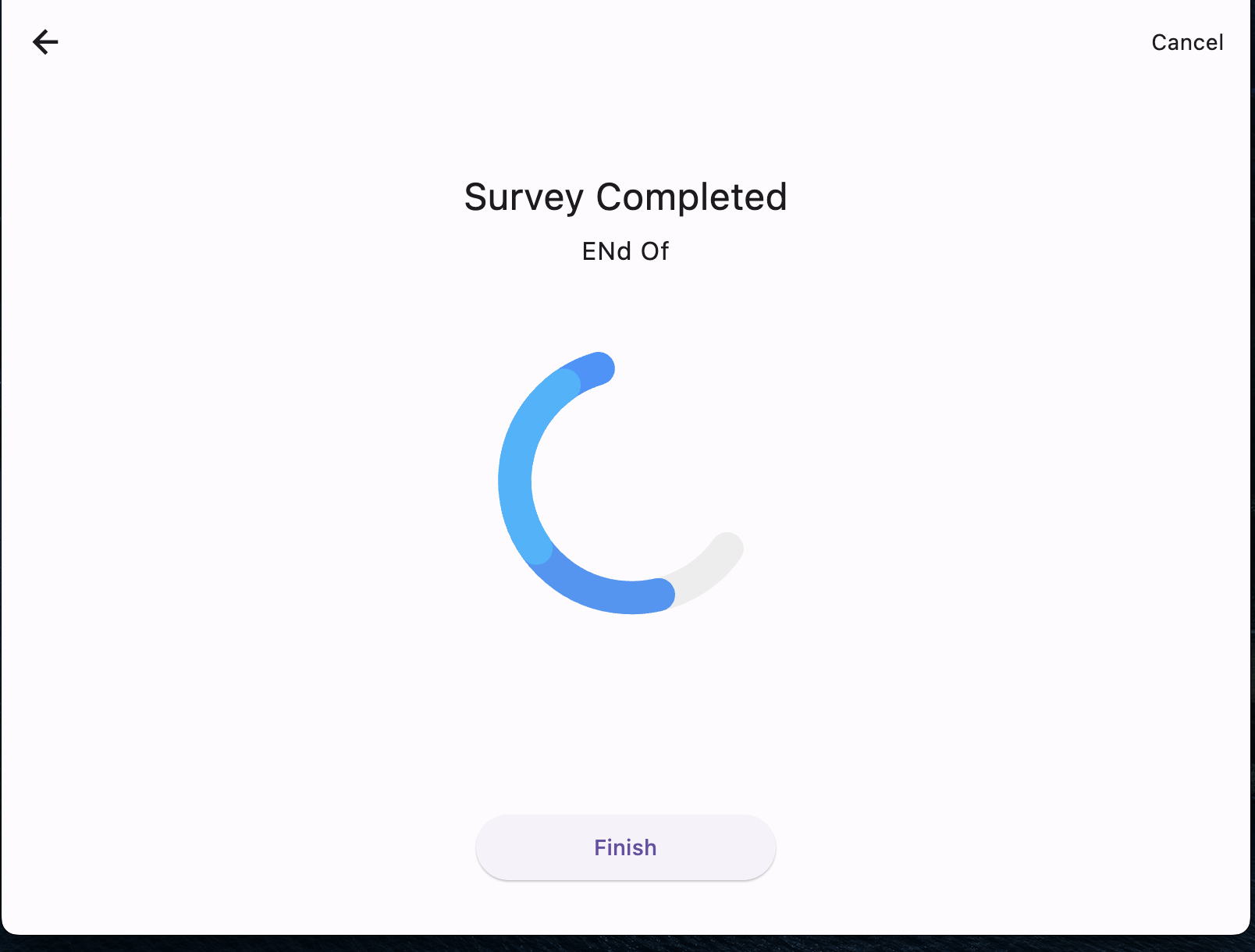

Screenshots

ResearchKit to FormStack Migration

If you're migrating from Apple ResearchKit, here's how the concepts map:

Step Types

ResearchKit (iOS)	FormStack (Flutter)	Notes
ORKInstructionStep	InstructionStep	Supports Lottie animations, static images, and video URLs
ORKQuestionStep	QuestionStep	35 input types vs ResearchKit's ~15
ORKFormStep	NestedStep	Multiple fields on one screen with cross-field validation
ORKCompletionStep	CompletionStep	Loading/success/error Lottie animations, async callbacks
ORKConsentDocument + ORKVisualConsentStep	ConsentStep	Expandable sections with 8 predefined types
ORKConsentReviewStep	ConsentStep (agreement checkbox)	Built into ConsentStep
ORKReviewStep	ReviewStep	Displays all answers before submission
ORKSignatureStep	QuestionStep(inputType: InputType.signature)	Canvas drawing, returns base64 PNG
ORKWebViewStep	DisplayStep(displayStepType: DisplayStepType.web)	WebView content
ORKNavigableOrderedTask	FormStack.api().form(steps: [...])	Conditional navigation via relevantConditions

Answer Formats

ResearchKit (iOS)	FormStack (Flutter)	Code
ORKTextAnswerFormat	InputType.text	QuestionStep(inputType: InputType.text, numberOfLines: 3)
ORKNumericAnswerFormat	InputType.number	QuestionStep(inputType: InputType.number)
ORKScaleAnswerFormat	InputType.slider	QuestionStep(inputType: InputType.slider, minValue: 0, maxValue: 10)
ORKBooleanAnswerFormat	InputType.boolean	QuestionStep(inputType: InputType.boolean)
ORKTextChoiceAnswerFormat (single)	InputType.singleChoice	QuestionStep(inputType: InputType.singleChoice, options: [...])
ORKTextChoiceAnswerFormat (multi)	InputType.multipleChoice	QuestionStep(inputType: InputType.multipleChoice, options: [...])
ORKImageChoiceAnswerFormat	InputType.imageChoice	QuestionStep(inputType: InputType.imageChoice, options: [...])
ORKValuePickerAnswerFormat	InputType.dropdown	QuestionStep(inputType: InputType.dropdown, options: [...])
ORKDateAnswerFormat	InputType.date	QuestionStep(inputType: InputType.date)
ORKTimeOfDayAnswerFormat	InputType.time	QuestionStep(inputType: InputType.time)
ORKLocationAnswerFormat	InputType.mapLocation	QuestionStep(inputType: InputType.mapLocation)

Navigation Rules

ResearchKit (iOS)	FormStack (Flutter)	Code
ORKPredicateStepNavigationRule	ExpressionRelevant	ExpressionRelevant(identifier: GenericIdentifier(id: "step"), expression: "IN value")
ORKDirectStepNavigationRule	ExpressionRelevant with FOR_ALL	ExpressionRelevant(identifier: ..., expression: "FOR_ALL")
Custom delegate	DynamicConditionalRelevant	DynamicConditionalRelevant(identifier: ..., isValidCallBack: (result) => ...)

Results

ResearchKit (iOS)	FormStack (Flutter)	Code
ORKTaskResult	TaskResult	FormStack.api().getTaskResult()
ORKStepResult	StepResult	Includes startTime, endTime, duration, value
result.startDate / endDate	step.startTime / endTime	Automatic timestamp recording
JSON serialization	exportAsJson()	FormStack.api().exportAsJson(formName: "myForm")

Quick Migration Example

ResearchKit (Swift):

let step1 = ORKInstructionStep(identifier: "intro")
step1.title = "Welcome"
step1.text = "This survey takes 5 minutes"

let step2 = ORKQuestionStep(identifier: "name")
step2.title = "Your Name"
step2.answerFormat = ORKTextAnswerFormat(maximumLength: 50)

let step3 = ORKQuestionStep(identifier: "satisfaction")
step3.title = "How satisfied are you?"
step3.answerFormat = ORKScaleAnswerFormat(maximumValue: 10, minimumValue: 0, defaultValue: 5, step: 1)

let task = ORKOrderedTask(identifier: "survey", steps: [step1, step2, step3])
let taskVC = ORKTaskViewController(task: task, taskRun: nil)

FormStack (Dart) - same UI, all platforms:

FormStack.api().form(steps: [
  InstructionStep(
    id: GenericIdentifier(id: "intro"),
    title: "Welcome",
    text: "This survey takes 5 minutes",
  ),
  QuestionStep(
    id: GenericIdentifier(id: "name"),
    title: "Your Name",
    inputType: InputType.name,
    lengthLimit: 50,
  ),
  QuestionStep(
    id: GenericIdentifier(id: "satisfaction"),
    title: "How satisfied are you?",
    inputType: InputType.slider,
    minValue: 0,
    maxValue: 10,
    stepValue: 1,
    defaultValue: 5,
  ),
]);

// Render in any Flutter widget
Scaffold(body: FormStack.api().render());

---

Installation

dependencies:
  formstack: ^2.5.0

flutter pub get

Quick Start

import 'package:formstack/formstack.dart';

// Build and render a form
FormStack.api().form(steps: [
  QuestionStep(
    title: "Your Name",
    inputType: InputType.name,
    id: GenericIdentifier(id: "name"),
  ),
  QuestionStep(
    title: "Email",
    inputType: InputType.email,
    id: GenericIdentifier(id: "email"),
  ),
  CompletionStep(
    title: "Done!",
    id: GenericIdentifier(id: "done"),
    onFinish: (result) => print(result),
  ),
]);

// In your widget
Scaffold(body: FormStack.api().render());

Or load from JSON:

await FormStack.api().loadFromAsset('assets/form.json');
Scaffold(body: FormStack.api().render());

---

Supported Input Types

Text Inputs

InputType	Description	Keyboard	Validation

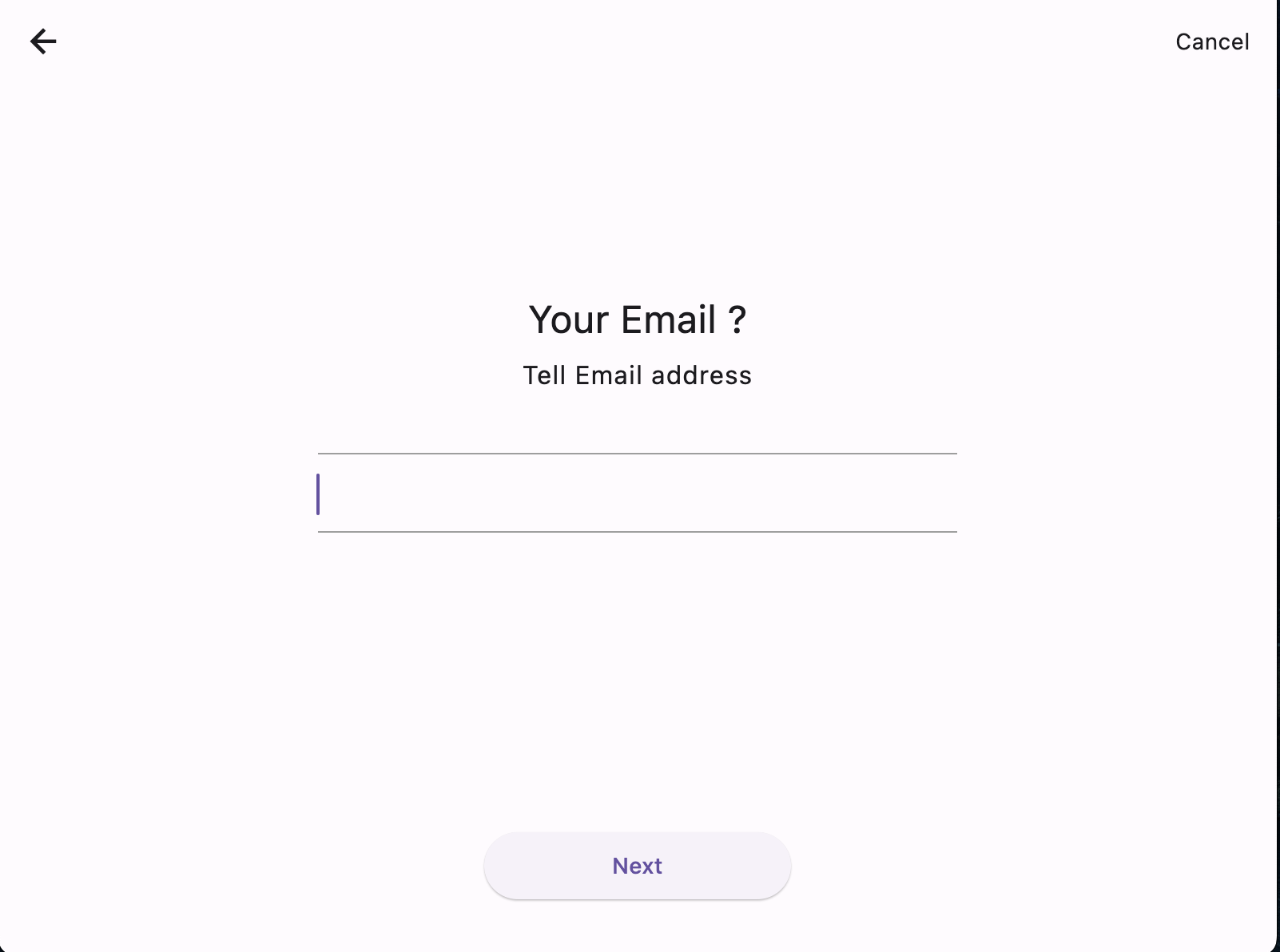

email	Email address	Email keyboard	Regex email validation

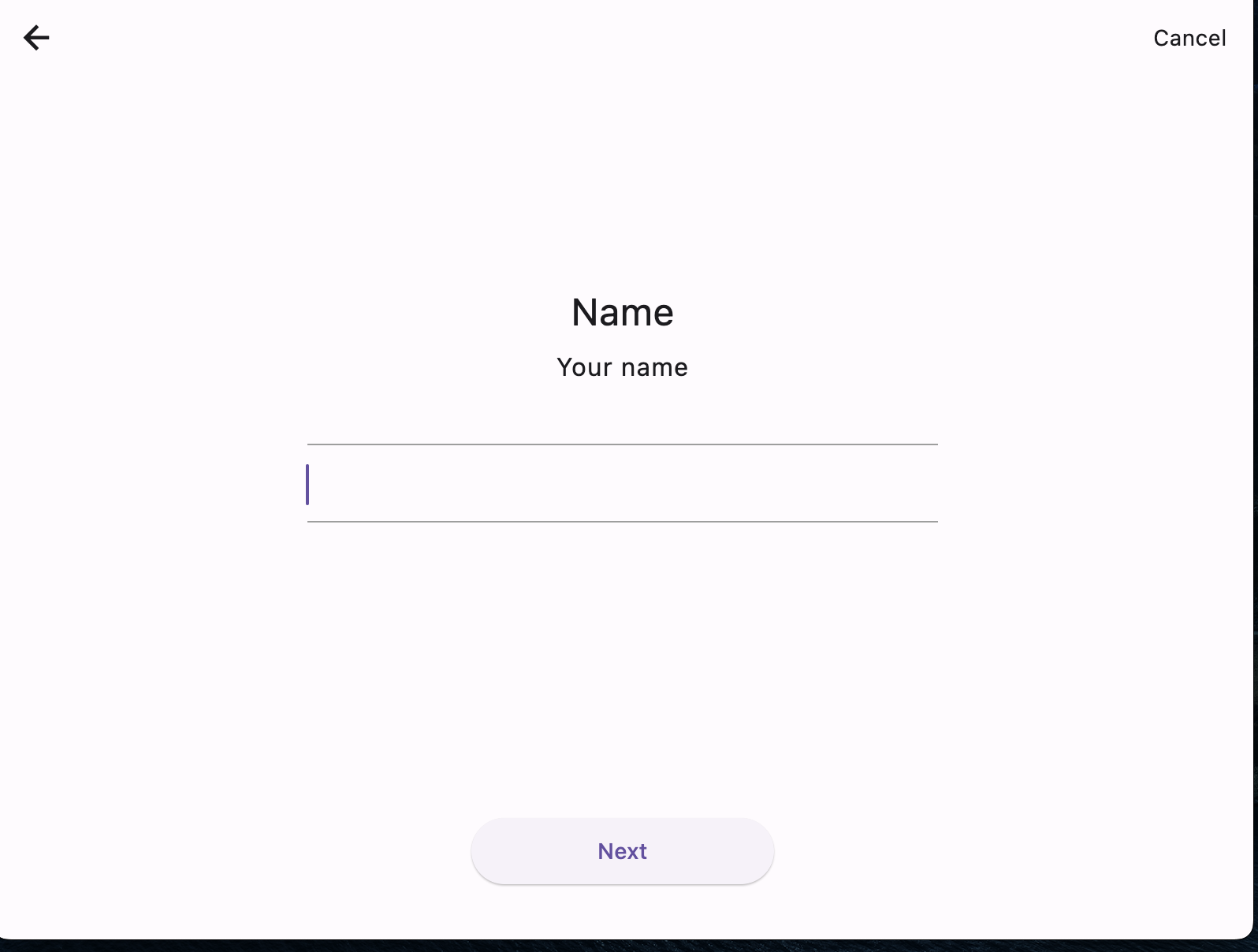

name	Person name	Text, auto-capitalize words	Letters only, min 2 chars
password	Secure password	Visible password	Uppercase, lowercase, digit, special char, 8+

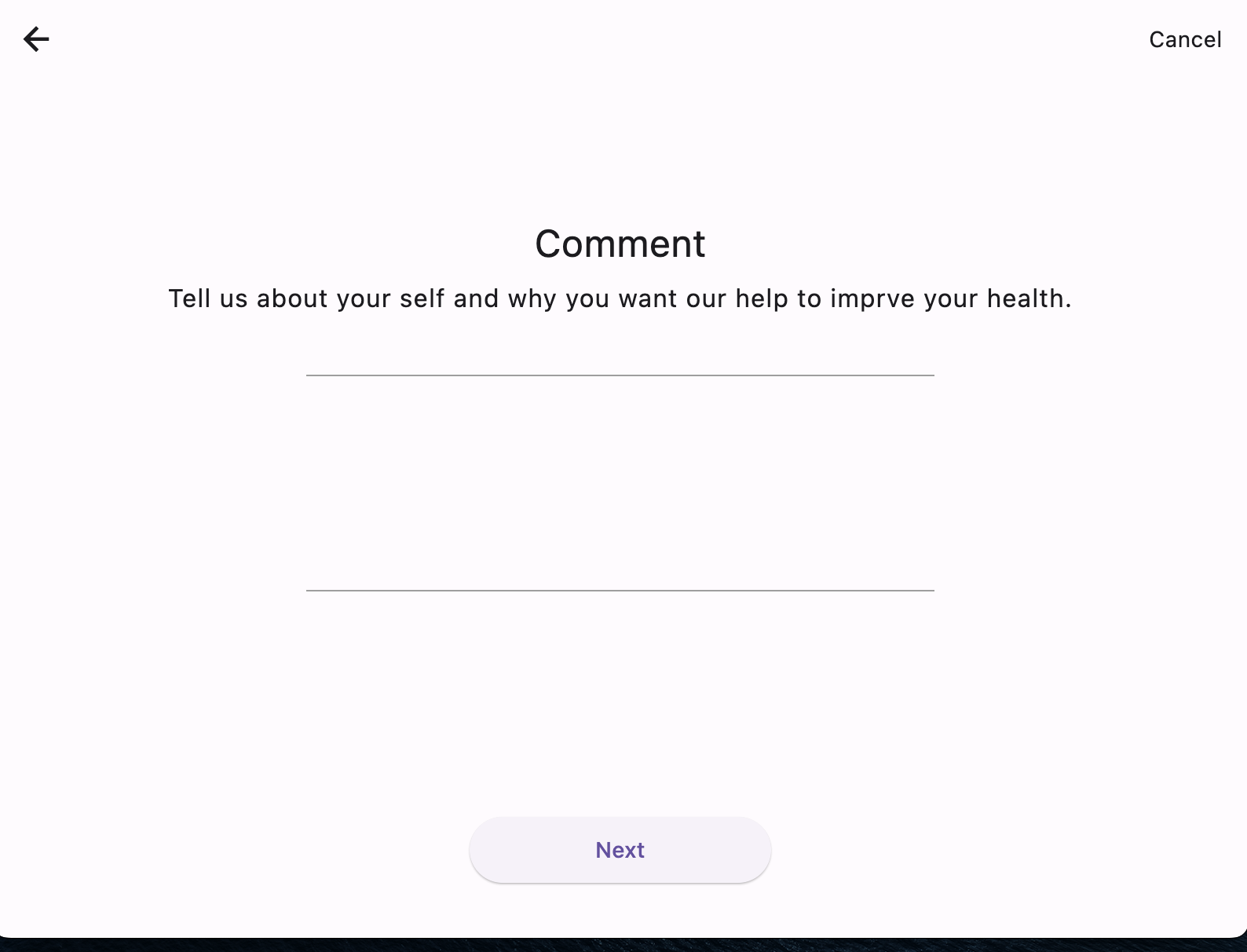

text	General text	Multiline	Non-empty, configurable numberOfLines
number	Numeric input	Number pad	Digits only, supports mask formatting
phone	Phone with country code	Phone	Country code dropdown + E.164 format
currency	Money amount	Decimal number	Currency symbol prefix, formatted input

Date & Time

InputType	Description	Result Type

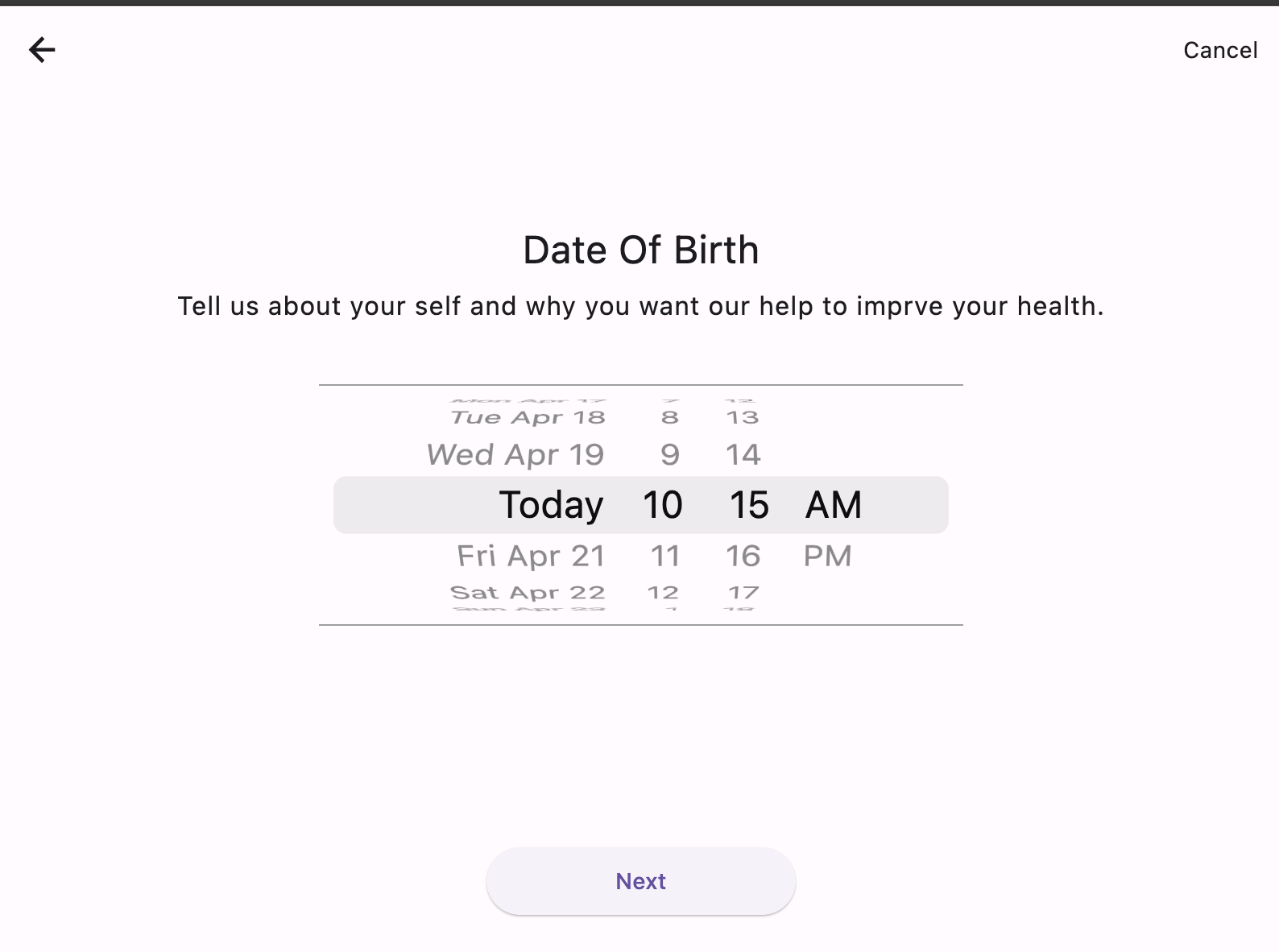

date	Date picker	DateTime

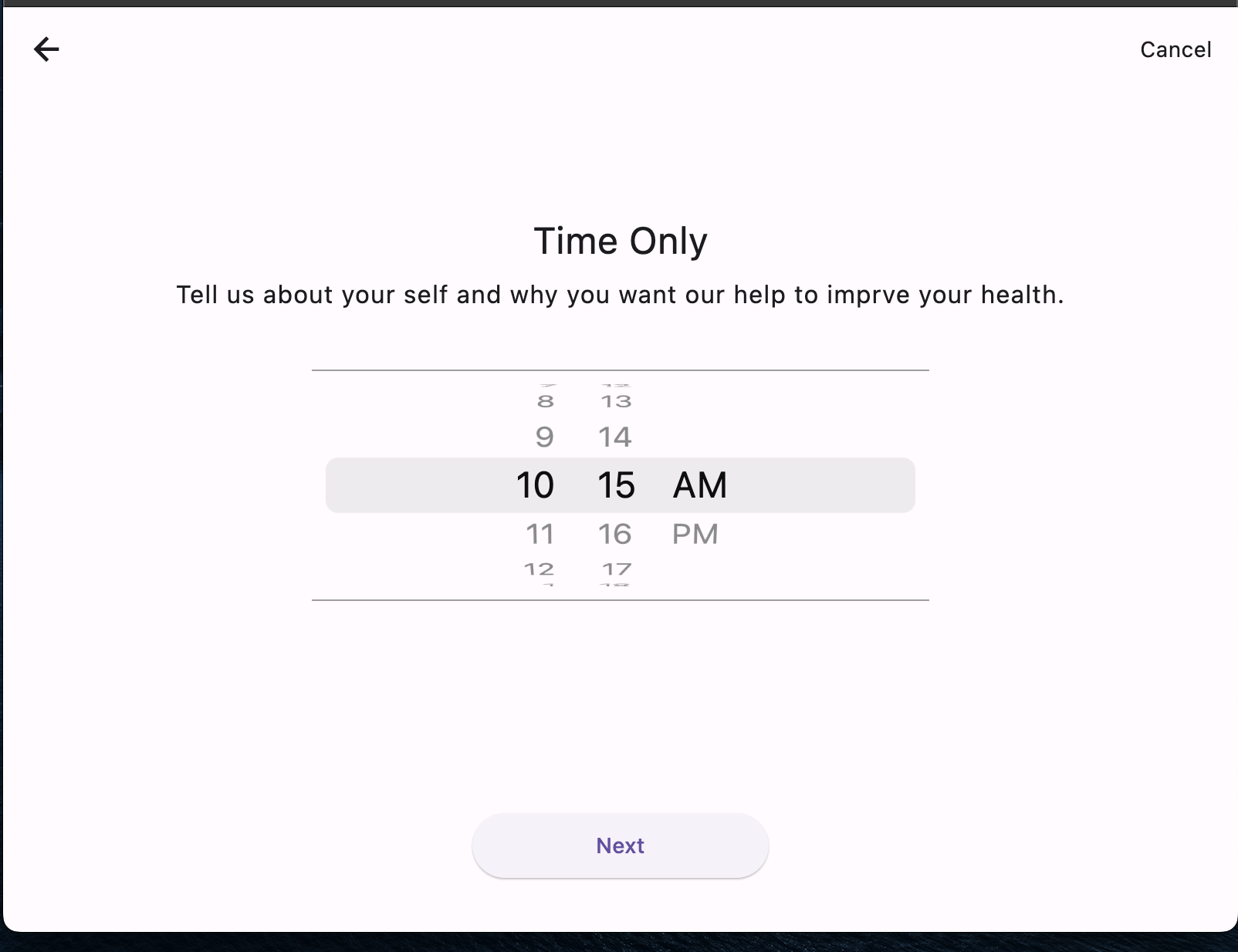

time	Time picker	DateTime
dateTime	Combined date + time	DateTime

Choice Inputs

InputType	Description	Selection Styles

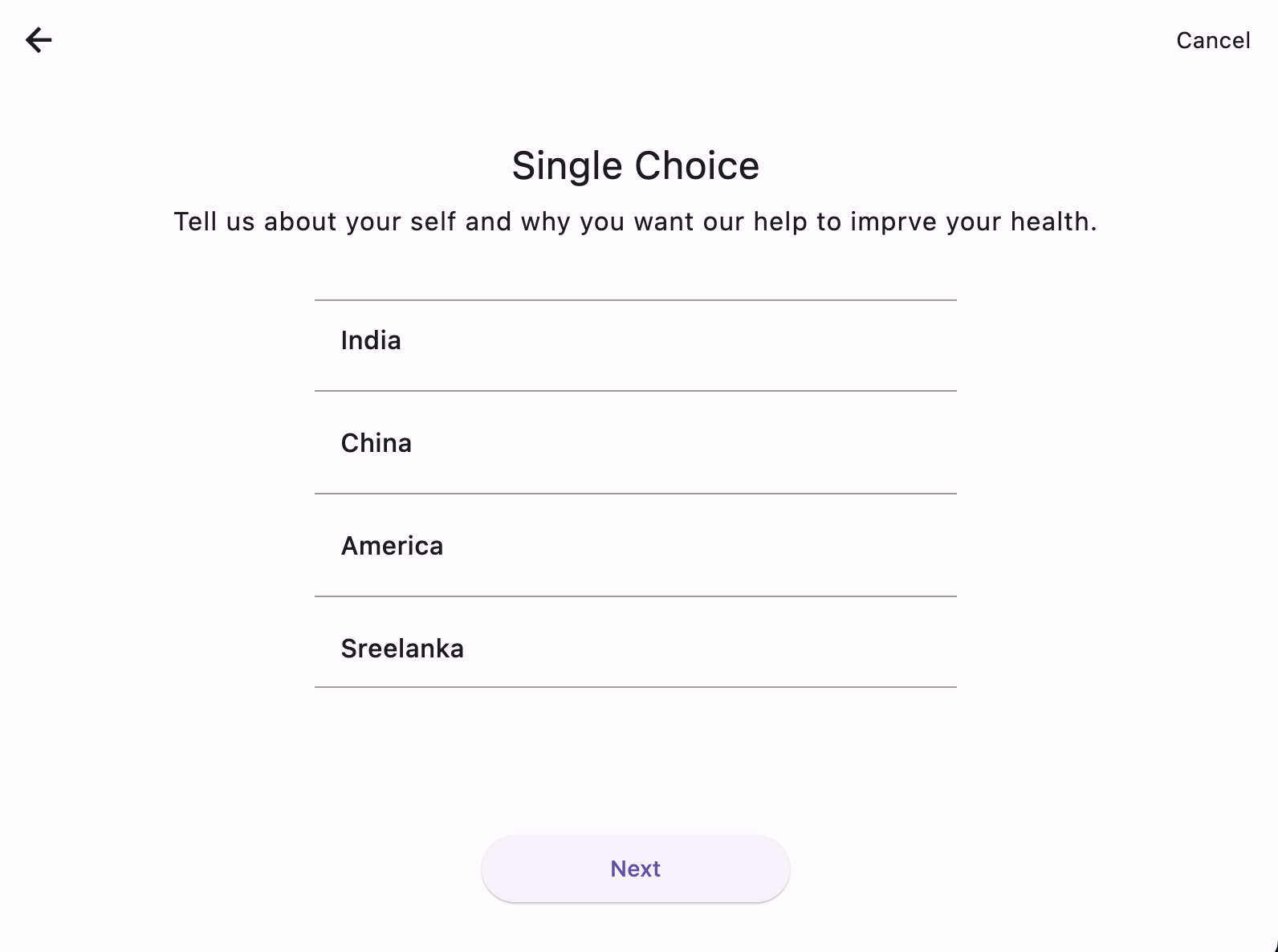

singleChoice	Select one option	arrow, tick, toggle

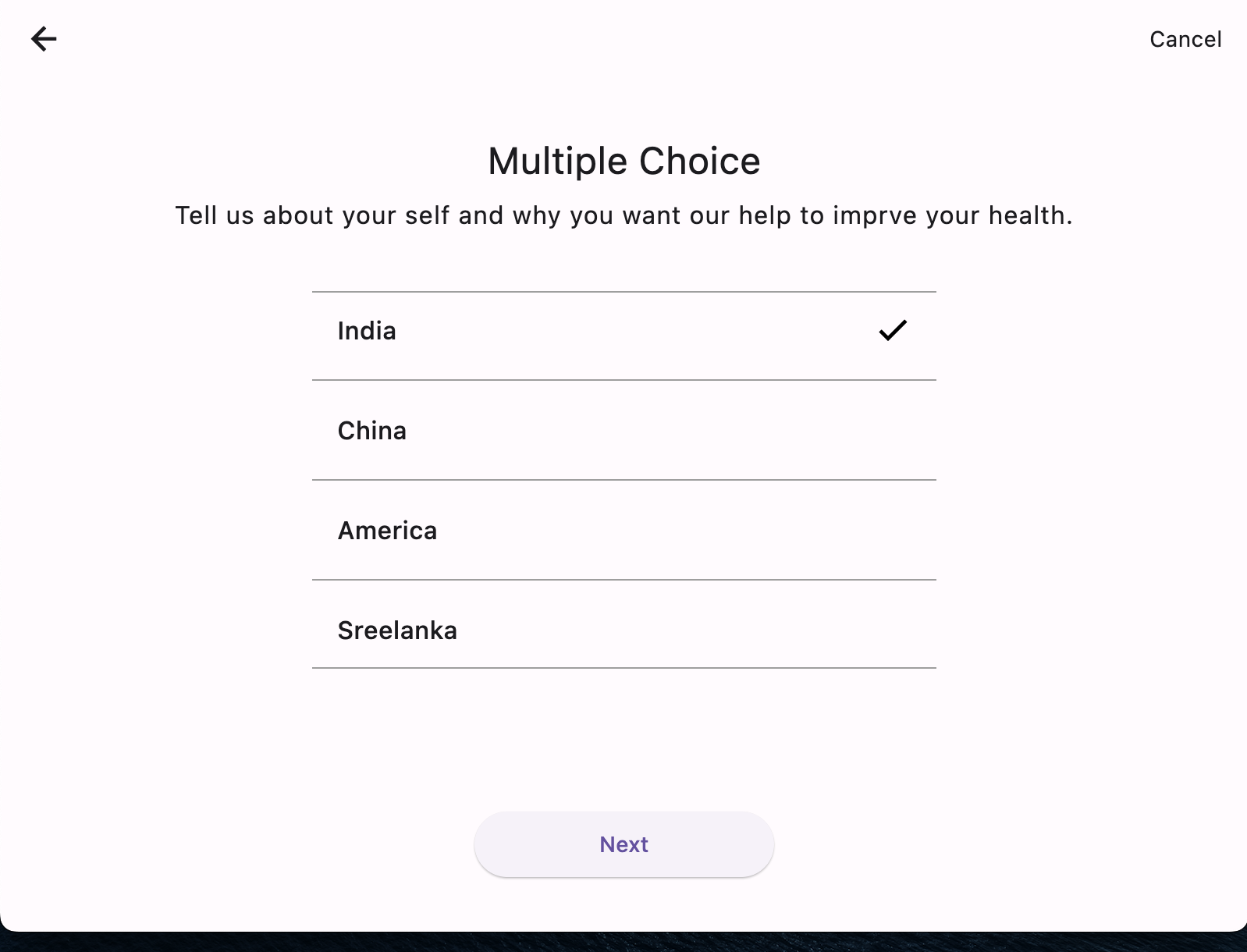

multipleChoice	Select multiple	tick, toggle
dropdown	Dropdown menu	Standard dropdown
ranking	Drag-to-reorder list	Reorderable with rank numbers
boolean	Yes/No toggle buttons	Two-button selection
imageChoice	Select from a grid of images	Image cards with labels

Survey & Rating

InputType	Description	Result Type
slider	Range slider	double (configurable min/max/step)
rating	Star rating	int (1 to N stars)
nps	Net Promoter Score (0-10)	int (color-coded scale)
smile	Emoji satisfaction	int (1-5 scale)

Media & Files

InputType	Description	Result Type
file	File picker with filters	PlatformFile
avatar	Circular image upload	String (base64)
banner	Rectangular image upload	String (base64)
signature	Draw signature on canvas	String (base64 PNG)
mapLocation	Google Maps picker	Location coordinates
geotrace	Trace a path/line on map	List<Map> (lat/lng points)
geoshape	Draw a polygon on map	List<Map> (lat/lng points)

Special

InputType	Description	Result Type
otp	Multi-digit OTP entry	int
consent	Checkbox with agreement text	bool
dynamicKeyValue	Add/remove key-value pairs	List<KeyValue>
htmlEditor	Rich text editor	String
hidden	Hidden data field (no UI, auto-advances)	dynamic
calculate	Auto-computed from other results	dynamic
barcode	Barcode/QR scanner with manual fallback	String
audio	Audio recording with timer	String

---

Step Types

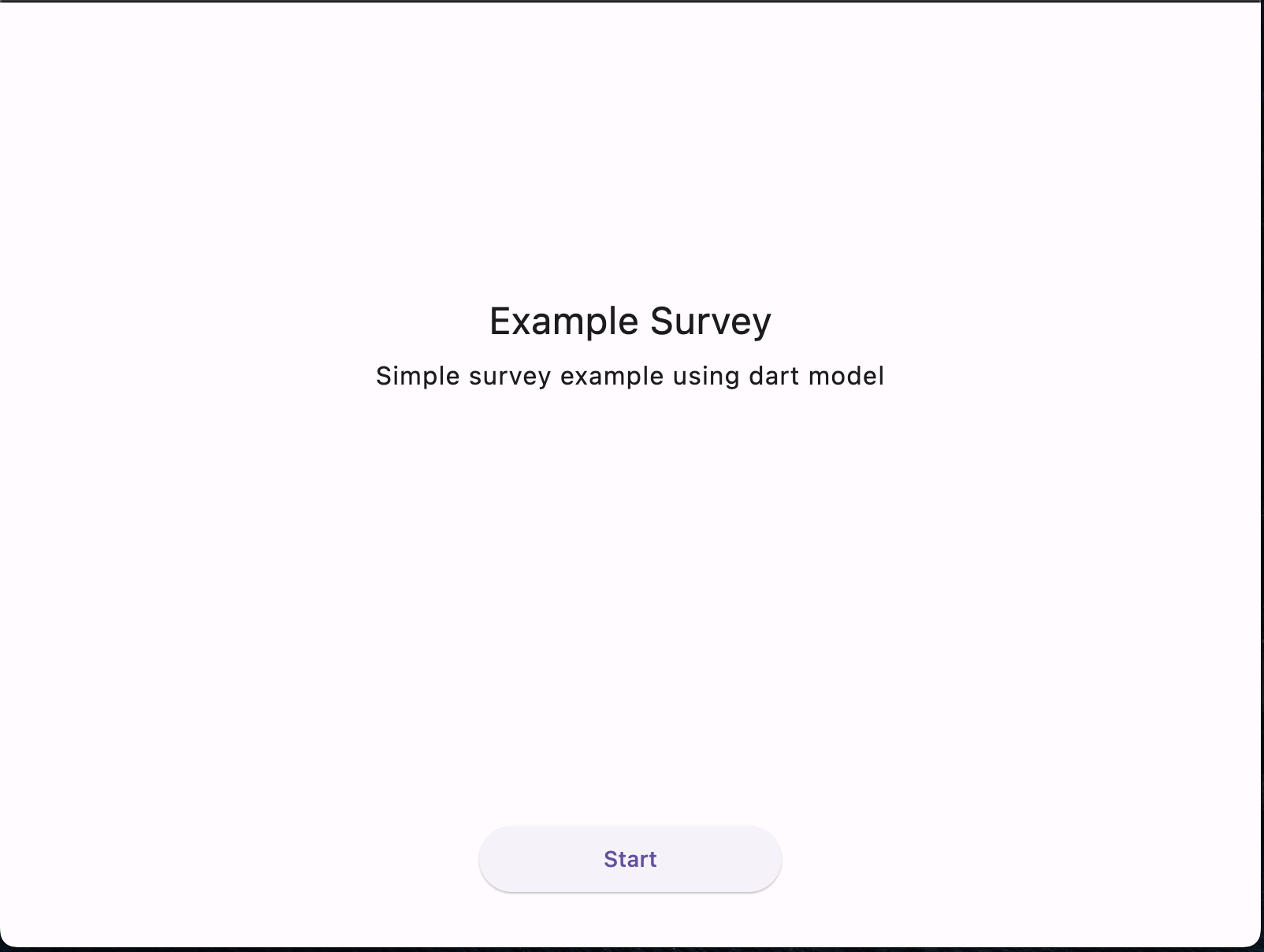

InstructionStep

Welcome screens, information pages, instructions.

InstructionStep(
  id: GenericIdentifier(id: "welcome"),
  title: "Customer Survey",
  text: "This will take about 2 minutes",
  cancellable: false,
  display: Display.medium,
)

QuestionStep

The main input step. Supports all 28 input types.

QuestionStep(
  id: GenericIdentifier(id: "email"),
  title: "Email Address",
  text: "We'll send your receipt here",
  inputType: InputType.email,
  inputStyle: InputStyle.outline,
  isOptional: false,
  hint: "[e-mail]",
)

CompletionStep

Form completion with loading/success/error animations.

CompletionStep(
  id: GenericIdentifier(id: "done"),
  title: "Submitting...",
  autoTrigger: false,
  onFinish: (result) => print("Result: $result"),
  onBeforeFinishCallback: (result) async {
    await submitToApi(result);
    return true; // false shows error animation
  },
)

NestedStep

Multiple fields on a single screen.

NestedStep(
  id: GenericIdentifier(id: "contact"),
  title: "Contact Information",
  verticalPadding: 10,
  validationExpression: "",
  steps: [
    QuestionStep(title: "", inputType: InputType.name, label: "First Name",
        id: GenericIdentifier(id: "first"), width: 400),
    QuestionStep(title: "", inputType: InputType.name, label: "Last Name",
        id: GenericIdentifier(id: "last"), width: 400),
    QuestionStep(title: "", inputType: InputType.email, label: "Email",
        id: GenericIdentifier(id: "email"), width: 400),
  ],
)

ReviewStep

Displays all collected answers for review before submission. Place before CompletionStep.

ReviewStep(
  id: GenericIdentifier(id: "review"),
  title: "Review Your Answers",
  text: "Verify before submitting",
  nextButtonText: "Submit",
)

ConsentStep

Structured consent document with expandable sections, agreement checkbox, and optional signature. Modeled after Apple ResearchKit's consent flow.

ConsentStep(
  id: GenericIdentifier(id: "consent"),
  title: "Informed Consent",
  requiresSignature: true,
  agreementText: "I agree to participate",
  sections: [
    ConsentSection(
      type: ConsentSectionType.overview,
      title: "About This Study",
      summary: "Brief overview...",
      content: "Full details shown on expand...",
    ),
    ConsentSection(
      type: ConsentSectionType.privacy,
      title: "Your Privacy",
      summary: "Data is encrypted and anonymized.",
    ),
    ConsentSection(
      type: ConsentSectionType.withdrawing,
      title: "Withdrawing",
      summary: "You can stop at any time.",
    ),
  ],
)

ConsentSectionType values: overview, dataGathering, privacy, dataUse, timeCommitment, studyTasks, withdrawing, custom

RepeatStep

Dynamic repeating sections where users add/remove entries. Modeled after ODK's repeat.

RepeatStep(
  id: GenericIdentifier(id: "members"),
  title: "Household Members",
  minRepeat: 1,
  maxRepeat: 10,
  addButtonText: "Add Member",
  steps: [
    QuestionStep(title: "", inputType: InputType.name, label: "Name",
        id: GenericIdentifier(id: "name"), width: 400),
    QuestionStep(title: "", inputType: InputType.number, label: "Age",
        id: GenericIdentifier(id: "age"), width: 400),
  ],
)

Result: List<Map<String, dynamic>> - one map per repetition.

DisplayStep

Show web content or data lists.

DisplayStep(
  id: GenericIdentifier(id: "info"),
  url: "https://example.com/terms",
  displayStepType: DisplayStepType.web,
)

---

Validation

Built-in Validators

// Text validators
ResultFormat.email("Invalid email")
ResultFormat.name("Invalid name")
ResultFormat.password("Weak password")
ResultFormat.text("Required")
ResultFormat.number("Must be a number")
ResultFormat.phone("Invalid phone")
ResultFormat.url("Invalid URL")

// Numeric range validators
ResultFormat.min("Must be at least 18", 18)
ResultFormat.max("Cannot exceed 100", 100)
ResultFormat.range("Must be 1-10", 1, 10)
ResultFormat.age("Invalid age (0-150)")
ResultFormat.percentage("Must be 0-100")

// String length validators
ResultFormat.minLength("Too short", 3)
ResultFormat.maxLength("Too long", 50)
ResultFormat.pattern("Invalid format", r'^[A-Z]{3}\d{4}$')
ResultFormat.length("Must be exactly 6 digits", 6)

// Choice validators
ResultFormat.singleChoice("Please select one")
ResultFormat.multipleChoice("Select at least one")
ResultFormat.minSelections("Select at least 2", 2)
ResultFormat.maxSelections("Select at most 3", 3)

// Specialty validators
ResultFormat.creditCard("Invalid card number")    // Luhn algorithm
ResultFormat.ssn("Invalid SSN")                    // ###-##-####
ResultFormat.zipCode("Invalid zip")                // #####(-####)
ResultFormat.iban("Invalid IBAN")                  // ISO 13616
ResultFormat.consent("You must agree")             // Must be true
ResultFormat.dateRange("Invalid date", "dd-MM-yyyy",
    minDate: DateTime(2000), maxDate: DateTime(2030)) // Date bounds
ResultFormat.fileSize("File too large", 5242880)   // Max bytes
ResultFormat.notNull("Required")
ResultFormat.notBlank("Cannot be empty")
ResultFormat.notEmpty("List cannot be empty")

// Custom validator
ResultFormat.custom("Must start with 'hello'",
    (value) => value.startsWith('hello'))

// Compose multiple validators
ResultFormat.compose([
  ResultFormat.minLength("Too short", 3),
  ResultFormat.maxLength("Too long", 50),
  ResultFormat.pattern("Letters only", r'^[a-zA-Z\s]+$'),
])

---

Styling

Input Styles

inputStyle: InputStyle.basic      // Flat, no border
inputStyle: InputStyle.outline    // Full border
inputStyle: InputStyle.underLined // Bottom border only

Component Styles

componentsStyle: ComponentsStyle.minimal  // Clean, minimal
componentsStyle: ComponentsStyle.basic    // Card-style with background

Display Sizes

display: Display.small       // Compact
display: Display.normal      // Standard (default)
display: Display.medium      // Larger headings
display: Display.large       // Big text
display: Display.extraLarge  // Maximum size

Selection Types (for choices)

selectionType: SelectionType.arrow    // Navigate arrows
selectionType: SelectionType.tick     // Checkmark
selectionType: SelectionType.toggle   // Switch toggle
selectionType: SelectionType.dropdown // Dropdown menu

Custom Theme (Dart)

QuestionStep(
  title: "Styled",
  inputType: InputType.text,
  style: UIStyle(
    Colors.indigo,       // Button background
    Colors.white,        // Button foreground
    Colors.indigo,       // Input border color
    8.0,                 // Title bottom padding
    12.0,                // Button border radius
    inputBackground: Colors.grey.shade100,
    inputTextColor: Colors.black87,
    titleColor: Colors.indigo,
    iconColor: Colors.indigo,
    cardBackground: Colors.white,
    fontSize: 16.0,
  ),
)

Custom Theme (JSON)

Apply a form-level theme to all steps, or style individual steps:

{
  "my_form": {
    "theme": {
      "backgroundColor": "#3F51B5",
      "foregroundColor": "#FFFFFF",
      "borderColor": "#3F51B5",
      "borderRadius": 12,
      "inputBackground": "#F5F5F5",
      "inputTextColor": "#212121",
      "titleColor": "#3F51B5",
      "subtitleColor": "#757575",
      "iconColor": "#3F51B5",
      "cardBackground": "#FFFFFF",
      "fontSize": 16
    },
    "steps": [
      {
        "type": "QuestionStep",
        "id": "name",
        "title": "Your Name",
        "inputType": "name",
        "style": {
          "backgroundColor": "#FF5722",
          "foregroundColor": "#FFFFFF",
          "borderRadius": 24
        }
      }
    ]
  }
}

The theme key applies to all steps as a default. Individual step style overrides the form theme.

Dark Mode

FormStack automatically adapts to your app's theme. No configuration needed:

MaterialApp(
  theme: ThemeData.light(useMaterial3: true),
  darkTheme: ThemeData.dark(useMaterial3: true),
  themeMode: ThemeMode.system, // Auto dark/light
  home: Scaffold(body: FormStack.api().render()),
)

All colors resolve from Theme.of(context).colorScheme at runtime.

---

Cascading Selects

Filter choices based on previous answers:

QuestionStep(
  title: "State",
  inputType: InputType.dropdown,
  options: allStates, // Full list
  choiceFilter: (options, results) =>
      options.where((o) => o.value == results["country"]).toList(),
)

Calculated Fields

Auto-compute values from other step results:

QuestionStep(
  title: "BMI",
  inputType: InputType.calculate,
  calculateCallback: (results) {
    final weight = double.tryParse(results["weight"]?.toString() ?? "") ?? 0;
    final height = double.tryParse(results["height"]?.toString() ?? "") ?? 1;
    return (weight / (height * height)).toStringAsFixed(1);
  },
  helperText: "Calculated from height and weight",
)

Multi-Language Support

final locale = FormStackLocale(
  defaultLocale: 'en',
  translations: {
    'en': {'name_title': 'Your Name', 'name_hint': 'Enter full name'},
    'es': {'name_title': 'Tu Nombre', 'name_hint': 'Ingrese nombre completo'},
    'fr': {'name_title': 'Votre Nom', 'name_hint': 'Entrez le nom complet'},
  },
);

QuestionStep(
  title: locale.t('name_title'),
  hint: locale.t('name_hint'),
  inputType: InputType.name,
)

// Switch language at runtime
locale.setLocale('es');

Conditional Navigation

Route users to different steps based on their answers:

QuestionStep(
  id: GenericIdentifier(id: "role"),
  title: "Your Role",
  inputType: InputType.singleChoice,
  autoTrigger: true,
  options: [
    Options("dev", "Developer"),
    Options("designer", "Designer"),
  ],
  relevantConditions: [
    ExpressionRelevant(
      identifier: GenericIdentifier(id: "dev_questions"),
      expression: "IN dev",
    ),
    ExpressionRelevant(
      identifier: GenericIdentifier(id: "design_questions"),
      expression: "IN designer",
    ),
  ],
)

Expression syntax:

• IN value - Result contains the value
• NOT_IN value - Result does not contain the value
• FOR_ALL - Always matches (converge paths)
• = value / != value - Exact match

Cross-form navigation with formName:

ExpressionRelevant(
  identifier: GenericIdentifier(id: "step_id"),
  expression: "IN selected_option",
  formName: "another_form",  // Navigate to a different form
)

---

API Reference

FormStack

// Create/get instance (supports named instances)
FormStack.api()
FormStack.api(name: "myForm")

// Build form from Dart objects
FormStack.api().form(steps: [...], name: "formName")

// Load from JSON
await FormStack.api().loadFromAsset('assets/form.json')
await FormStack.api().loadFromAssets(['assets/a.json', 'assets/b.json'])

// Render
FormStack.api().render()
FormStack.api().render(name: "formName")

// Pre-fill data
FormStack.api().setResult({"email": "[e-mail]"}, formName: "myForm")

// Set validation error on a field
FormStack.api().setError(GenericIdentifier(id: "email"), "Already taken", formName: "myForm")

// Update options dynamically
FormStack.api().setOptions([Options("a", "A")], GenericIdentifier(id: "choice"))

// Disable specific fields
FormStack.api().setDisabledUI(["field_id_1", "field_id_2"])

// Completion callback with async pre-validation
FormStack.api().addCompletionCallback(
  GenericIdentifier(id: "done"),
  formName: "myForm",
  onFinish: (result) => print(result),
  onBeforeFinishCallback: (result) async {
    final success = await api.submit(result);
    return success; // false = show error animation
  },
);

// Progress tracking
double progress = FormStack.api().getFormProgress();       // 0.0 - 1.0
int step = FormStack.api().getCurrentStepIndex();
bool done = FormStack.api().isFormCompleted();
Map stats = FormStack.api().getFormStats();
// stats: {totalSteps, completedSteps, requiredSteps, optionalSteps, progress, isCompleted}

// Back navigation control
FormStack.api().systemBackNavigation(true, () => print("Back pressed"));

// Cleanup
FormStack.clearForms();
FormStack.api().clearConfiguration();

---

JSON Schema

All step types and properties are supported in JSON. Wrap forms in a named object:

{
  "my_form": {
    "backgroundAnimationFile": "assets/bg.json",
    "steps": [
      {
        "type": "InstructionStep",
        "id": "welcome",
        "title": "Welcome",
        "text": "Complete this survey",
        "cancellable": false,
        "display": "medium"
      },
      {
        "type": "QuestionStep",
        "id": "name",
        "title": "Full Name",
        "inputType": "name",
        "inputStyle": "outline",
        "isOptional": false,
        "hint": "John Doe",
        "helperText": "Enter your legal name"
      },
      {
        "type": "QuestionStep",
        "id": "satisfaction",
        "title": "How satisfied are you?",
        "inputType": "slider",
        "minValue": 0,
        "maxValue": 10,
        "stepValue": 1,
        "defaultValue": 5
      },
      {
        "type": "QuestionStep",
        "id": "rating",
        "title": "Rate our service",
        "inputType": "rating",
        "ratingCount": 5
      },
      {
        "type": "QuestionStep",
        "id": "recommend",
        "title": "Would you recommend us?",
        "inputType": "nps"
      },
      {
        "type": "QuestionStep",
        "id": "country",
        "title": "Country",
        "inputType": "dropdown",
        "componentsStyle": "basic",
        "options": [
          {"key": "US", "title": "United States"},
          {"key": "UK", "title": "United Kingdom"},
          {"key": "IN", "title": "India"}
        ]
      },
      {
        "type": "QuestionStep",
        "id": "phone",
        "title": "Phone",
        "inputType": "phone",
        "phoneCountryCode": "+1"
      },
      {
        "type": "QuestionStep",
        "id": "budget",
        "title": "Budget",
        "inputType": "currency",
        "currencySymbol": "$"
      },
      {
        "type": "QuestionStep",
        "id": "priorities",
        "title": "Rank by priority",
        "inputType": "ranking",
        "options": [
          {"key": "speed", "title": "Speed"},
          {"key": "quality", "title": "Quality"},
          {"key": "cost", "title": "Cost"}
        ]
      },
      {
        "type": "QuestionStep",
        "id": "agree",
        "title": "Agreement",
        "inputType": "consent",
        "consentText": "I agree to the terms and conditions"
      },
      {
        "type": "QuestionStep",
        "id": "sig",
        "title": "Signature",
        "inputType": "signature"
      },
      {
        "type": "CompletionStep",
        "id": "done",
        "title": "Thank you!",
        "autoTrigger": true
      }
    ]
  }
}

Supported JSON Fields

All Steps: type, id, title, text, description, hint, label, display, isOptional, cancellable, disabled, nextButtonText, backButtonText, cancelButtonText, footerBackButton, componentsStyle, crossAxisAlignmentContent, titleIconAnimationFile, titleIconMaxWidth, width, helperText, defaultValue, semanticLabel, style

QuestionStep: inputType, inputStyle, options, selectionType, autoTrigger, numberOfLines, count, maxCount, mask, filter, maxHeight, lengthLimit, textAlign, relevantConditions, minValue, maxValue, stepValue, minSelections, maxSelections, consentText, currencySymbol, phoneCountryCode, ratingCount

CompletionStep: autoTrigger, successLottieAssetsFilePath, loadingLottieAssetsFilePath, errorLottieAssetsFilePath

NestedStep: steps, validationExpression, verticalPadding

DisplayStep: url, displayStepType, data

---

Examples

The example app demonstrates all features across 12 demo screens:

Demo	Features
All Input Types	Core input types: text, email, name, password, number, date, time, choices, OTP, smile, file, key-value, avatar, banner
Styles & Display	InputStyle, ComponentsStyle, Display sizes, UIStyle, JSON theming, dark mode
Selection Types	Arrow, tick, toggle, dropdown
Validation	Email, password, phone, URL, age, zip, dateRange, custom, compose
Conditional Nav	ExpressionRelevant branching and path convergence
Nested Steps	Multi-field screens with cross-field validation
API Features	setResult, setError, callbacks, progress tracking
Survey Components	Slider, rating, NPS, consent, signature, ranking, phone, currency
ResearchKit Features	Boolean, image choice, consent flow, review step, progress bar, timestamps
Data Collection (ODK)	RepeatStep, calculate, hidden, cascading selects, barcode, audio, geotrace, geoshape
Multi-Language & Offline	FormStackLocale, runtime language switching, DisplayStep, offline save/resume
Load from JSON	Multi-file JSON loading with form linking

Run the example:

cd example
flutter run

---

Extensibility

FormStack is designed for extension at every layer, following Apple ResearchKit's architecture.

Custom Validators

Subclass ResultFormat directly:

class PalindromeValidator extends ResultFormat {
  final String errorMsg;
  PalindromeValidator(this.errorMsg);

  @override
  bool isValid(dynamic input) {
    final str = (input as String?)?.toLowerCase() ?? '';
    return str == str.split('').reversed.join();
  }

  @override
  String error() => errorMsg;
}

// Use it
QuestionStep(
  inputType: InputType.text,
  resultFormat: PalindromeValidator("Must be a palindrome"),
)

Custom Input Widgets

Extend BaseStepView to create custom inputs:

class ColorPickerWidget extends BaseStepView<QuestionStep> {
  ColorPickerWidget(super.formStackForm, super.formStep, super.text);

  Color _selected = Colors.red;

  @override
  Widget? buildWInputWidget(BuildContext context, QuestionStep formStep) {
    return StatefulBuilder(builder: (context, setState) {
      // Your custom color picker UI here
    });
  }

  @override
  bool isValid() => true;
  @override
  String validationError() => "";
  @override
  dynamic resultValue() => _selected.value;
  @override
  void requestFocus() {}
  @override
  void clearFocus() {}
}

Custom Step Types

Subclass FormStep for entirely new step types:

class VideoStep extends FormStep {
  final String videoUrl;
  VideoStep({required this.videoUrl, super.id, super.title});

  @override
  FormStepView buildView(FormStackForm formStackForm) {
    return MyVideoStepView(formStackForm, this, text);
  }
}

Custom Navigation Rules

Subclass RelevantCondition:

class ScoreThresholdCondition extends RelevantCondition {
  final int threshold;
  ScoreThresholdCondition({required super.identifier, required this.threshold});

  @override
  bool isValid(dynamic result) => (result as int?) != null && result >= threshold;
}

Step Lifecycle Callbacks

Hook into step events for analytics or custom behavior:

QuestionStep(
  title: "Email",
  inputType: InputType.email,
  onStepWillPresent: (step) => analytics.trackStepView(step.id?.id),
  onStepDidComplete: (step, result) => analytics.trackStepComplete(step.id?.id, result),
)

Structured Result Export

Get typed results with timestamps (modeled after ResearchKit's ORKTaskResult):

final taskResult = FormStack.api().getTaskResult(formName: "myForm");
print(taskResult.totalDuration);
print(taskResult.completedSteps);

// Full JSON export with step-level timestamps and metadata
final json = FormStack.api().exportAsJson(formName: "myForm");
await http.post('/api/submit', body: jsonEncode(json));

// Access individual step results
final email = FormStack.api().getStepResult("email");
final step = FormStack.api().getStep("email");
print(step?.startTime); // When user saw this step
print(step?.endTime);   // When user completed it

---

Architecture

lib/
  formstack.dart              # Public API exports
  src/
    formstack.dart             # FormStack singleton API
    formstack_form.dart        # Form navigation and state
    input_types.dart           # InputType enum (35 values)
    core/
      form_step.dart           # Base FormStep class, enums
      parser.dart              # JSON parser
      ui_style.dart            # UIStyle, HexColor
      form_locale.dart         # FormStackLocale (multi-language)
    step/
      question_step.dart       # QuestionStep (all input types)
      completion_step.dart     # CompletionStep (finish with animation)
      instruction_step.dart    # InstructionStep (info/video screens)
      nested_step.dart         # NestedStep (multi-field)
      display_step.dart        # DisplayStep (web/list content)
      review_step.dart         # ReviewStep (answer review before submit)
      consent_step.dart        # ConsentStep (consent document flow)
      repeat_step.dart         # RepeatStep (dynamic repeating sections)
      pop_step.dart            # PopStep (navigation)
    result/
      result_format.dart       # 35+ validators (subclassable)
      step_result.dart         # StepResult, TaskResult hierarchy
      common_result.dart       # Options, KeyValue, DynamicData
      identifiers.dart         # GenericIdentifier, StepIdentifier
    relevant/
      relevant_condition.dart  # RelevantCondition base
      expression_relevant_condition.dart  # Expression-based routing
      dynamic_relevant_condition.dart     # Callback-based routing
    ui/views/input/
      text_input_field.dart    # Text/email/password/number
      choice_input_field.dart  # Single/multiple choice
      date_input_field.dart    # Date/time pickers
      slider_input_field.dart  # Range slider
      rating_input_field.dart  # Star rating
      nps_input_field.dart     # Net Promoter Score
      consent_input_field.dart # Checkbox consent
      signature_input_field.dart # Signature pad
      ranking_input_field.dart # Drag-to-reorder
      phone_input_field.dart   # Phone with country code
      currency_input_field.dart # Currency input
      boolean_input_field.dart  # Yes/No toggle
      image_choice_input_field.dart # Image grid selection
      otp_input_field.dart     # OTP digits
      smile_input_field.dart   # Emoji rating
      image_input_field.dart   # Avatar/banner upload
      dynamic_key_value_field.dart # Key-value pairs
      map_input_field.dart     # Google Maps
      hidden_input_field.dart   # Hidden data field
      calculate_input_field.dart # Calculated field
      barcode_input_field.dart  # Barcode/QR scanner
      audio_input_field.dart    # Audio recording
      geotrace_input_field.dart # Geotrace/geoshape map input
      html_input_field.dart    # Rich text editor

License

MIT License. See LICENSE for details.

Links

• pub.dev
• API Docs
• Issues
• Source
