Flutter Advanced DevTools 🛠️ #

A comprehensive, production-ready developer tools package for Flutter applications. Boost your development workflow with powerful debugging, network monitoring, performance tracking, and customizable theming.

📸 Screenshots #

Main Screen Network Logger Performance Monitor

Environment Switcher Network Details Permissions

✨ Features #

Feature	Description
🎨 Customizable Theme	Match your app's branding with preset or custom themes
🌐 Environment Switcher	Switch between Dev/Staging/Production environments on-the-fly
📡 Network Logger	Full HTTP request/response tracking with Dio integration

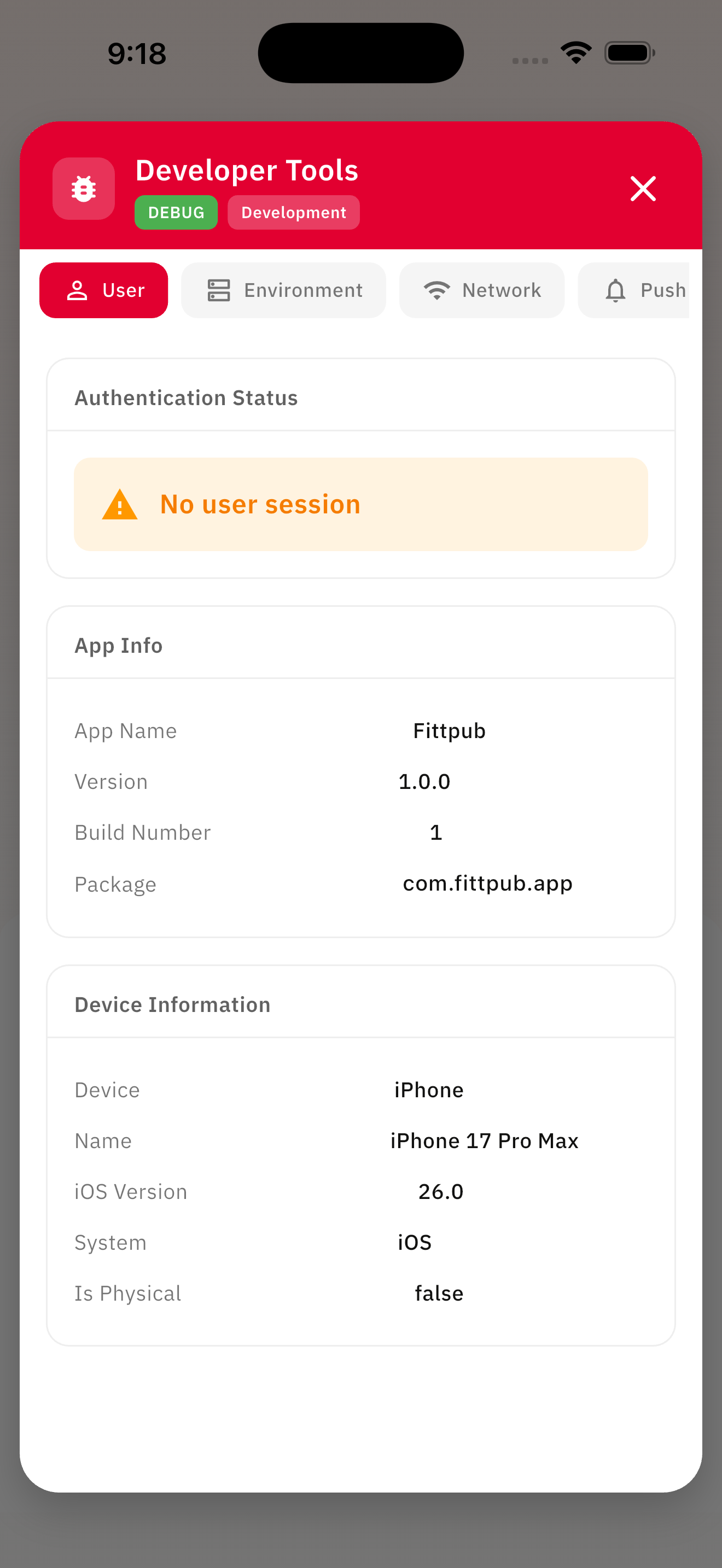

👤 User Info	View auth tokens, user data, and device information
⚡ Performance Monitor	Real-time CPU, RAM, and FPS tracking
🔔 Push Notifications	Test and debug Firebase Cloud Messaging

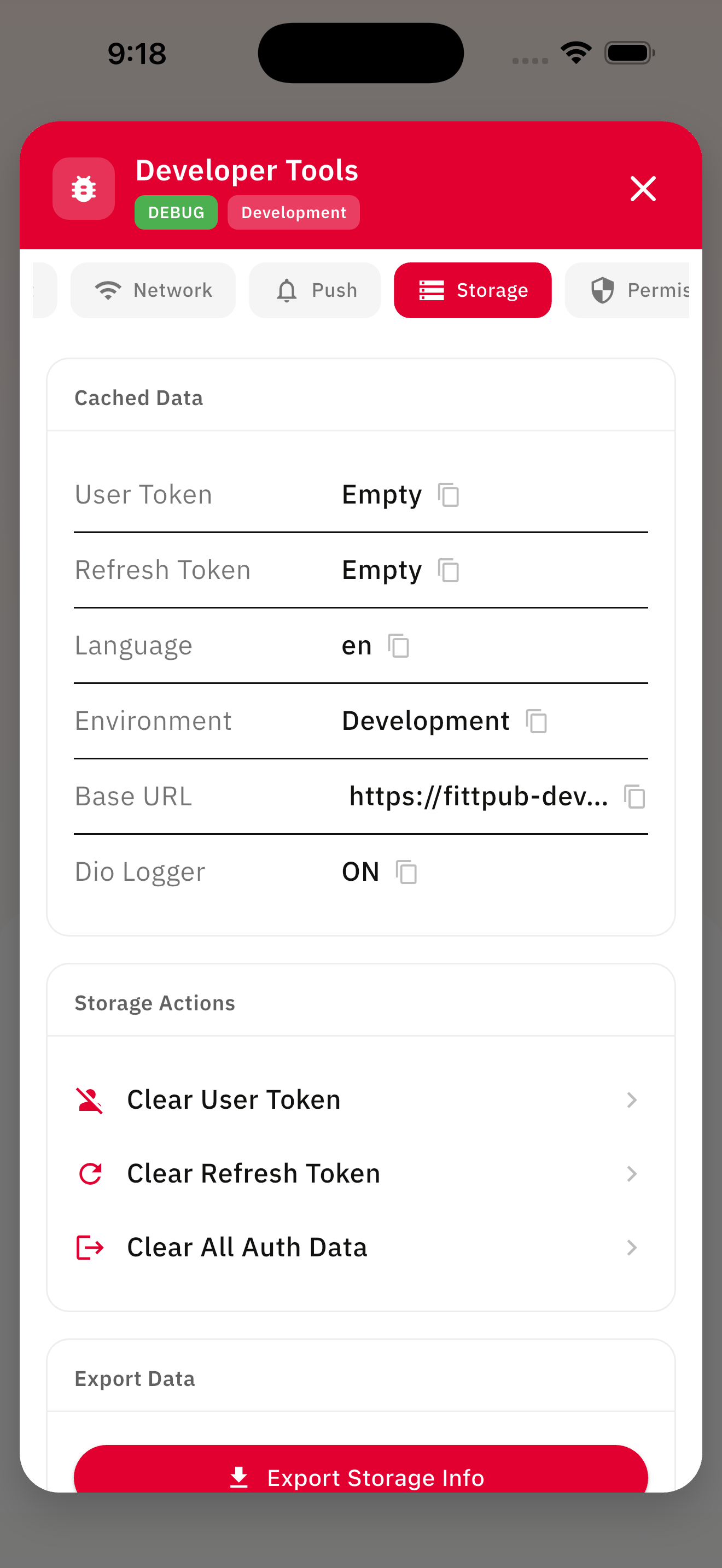

💾 Storage Inspector	Browse and inspect cached/stored data
🔐 Permissions Manager	Check and request app permissions
📢 UI Event Logger	Track toasts, dialogs, and user interactions
⚠️ Exception Logger	Catch and view runtime errors
⚙️ Debug Settings	Hot reload, debug paint, performance overlay & more

📦 Installation #

Add this to your package's pubspec.yaml file:

dependencies:
  flutter_advanced_devtools: ^0.1.0

Then run:

flutter pub get

🚀 Quick Start #

1. Basic Setup #

import 'package:flutter/material.dart';
import 'package:flutter_advanced_devtools/flutter_advanced_devtools.dart';

void main() async {
  WidgetsFlutterBinding.ensureInitialized();

  // Initialize DevTools with your custom environments
  await DevToolsConfig().init(
    environments: [
      const Environment(
        name: 'Development',
        baseUrl: 'https://api.dev.yourapp.com/',
        description: 'Development server',
      ),
      const Environment(
        name: 'Staging',
        baseUrl: 'https://api.staging.yourapp.com/',
        description: 'Staging server for QA',
      ),
      const Environment(
        name: 'Production',
        baseUrl: 'https://api.yourapp.com/',
        description: 'Production server',
        isProduction: true,
      ),
    ],
  );

  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return DevToolsWrapper(
      child: MaterialApp(
        title: 'My App',
        theme: ThemeData(primarySwatch: Colors.blue),
        home: const HomePage(),
      ),
    );
  }
}

2. Customize Theme (Optional) #

void main() async {
  WidgetsFlutterBinding.ensureInitialized();

  final config = DevToolsConfig();
  await config.init();

  // Option 1: Use preset themes
  config.setTheme(DevToolsTheme.purple());

  // Option 2: Generate from your app color
  config.setTheme(DevToolsTheme.fromAppColor(Color(0xFF6200EE)));

  // Option 3: Fully custom theme
  config.setTheme(DevToolsTheme(
    primaryColor: Color(0xFF1976D2),
    secondaryColor: Color(0xFF64B5F6),
    successColor: Color(0xFF4CAF50),
    warningColor: Color(0xFFFF9800),
    errorColor: Color(0xFFF44336),
  ));

  runApp(const MyApp());
}

📡 Network Logger Integration with Dio #

The Network Logger automatically captures ALL HTTP requests/responses made through your Dio instance, regardless of where in your app they originate.

Step 1: Create Your Dio Helper #

import 'package:dio/dio.dart';
import 'package:flutter_advanced_devtools/flutter_advanced_devtools.dart';

class DioHelper {
  static late Dio dio;

  static void init() {
    dio = Dio(BaseOptions(
      baseUrl: DevToolsConfig().currentBaseUrl,
      connectTimeout: const Duration(seconds: 30),
      receiveTimeout: const Duration(seconds: 30),
      receiveDataWhenStatusError: true,
    ));

    // 🔥 Add NetworkLoggerInterceptor to capture all network activity
    if (DevToolsConfig().isDioLoggerEnabled) {
      dio.interceptors.add(NetworkLoggerInterceptor());
    }

    // Add other interceptors (auth, retry, etc.)
    // dio.interceptors.add(AuthInterceptor());
  }

  static Future<void> reinitialize() async {
    // Update base URL when environment changes
    dio.options.baseUrl = DevToolsConfig().currentBaseUrl;

    // Re-add interceptors
    dio.interceptors.clear();
    if (DevToolsConfig().isDioLoggerEnabled) {
      dio.interceptors.add(NetworkLoggerInterceptor());
    }
  }
}

Step 2: Initialize in main.dart #

void main() async {
  WidgetsFlutterBinding.ensureInitialized();

  // Initialize DevTools with reinitialize callback
  await DevToolsConfig().init(
    onReinitializeDio: DioHelper.reinitialize, // Called when settings change
    environments: [
      // Your environments...
    ],
  );

  // Initialize Dio with interceptor
  DioHelper.init();

  runApp(const MyApp());
}

Step 3: Make Requests Anywhere #

// In your repositories, services, or anywhere in your app
class UserRepository {
  Future<List<User>> getUsers() async {
    try {
      final response = await DioHelper.dio.get('/users');
      // ✅ This request is automatically logged in DevTools!
      return (response.data as List)
          .map((json) => User.fromJson(json))
          .toList();
    } catch (e) {
      // ✅ Errors are also logged!
      rethrow;
    }
  }

  Future<User> createUser(Map<String, dynamic> data) async {
    final response = await DioHelper.dio.post('/users', data: data);
    // ✅ POST requests are logged with request/response bodies!
    return User.fromJson(response.data);
  }
}

What Gets Logged? #

The Network Logger captures:

✅ All HTTP methods (GET, POST, PUT, DELETE, PATCH, etc.)
✅ Request details (URL, headers, body)
✅ Response details (status code, headers, body)
✅ Timing (request duration in milliseconds)
✅ Errors (network failures, timeouts, server errors)
✅ Request origin (doesn't matter where in your app it's called from!)

View Network Logs #

Shake your device 3 times (or tap the DevTools FAB)
Navigate to the "Network" tab
See all requests in real-time with:
- Method badges (GET, POST, etc.)
- Status codes with color coding
- Request/response times
- Full request/response inspection
- Copy/share functionality

🎯 How to Access DevTools #

Method 1: Shake Gesture (Recommended) #

Shake your device 3 times within 1 second to toggle DevTools.

Method 2: Floating Action Button #

Tap the floating developer button (visible in debug/profile builds).

Method 3: Programmatic #

// Trigger from your code (useful for custom gestures)
DevToolsService().toggleOverlay();

📖 Feature Details #

🌐 Environment Switching #

Switch between environments in real-time without rebuilding:

// Define environments during initialization
await DevToolsConfig().init(
  environments: [
    Environment(
      name: 'Local',
      baseUrl: 'http://localhost:3000/',
      description: 'Local development server',
    ),
    Environment(
      name: 'Development',
      baseUrl: 'https://api.dev.example.com/',
      description: 'Remote dev server',
    ),
    Environment(
      name: 'Production',
      baseUrl: 'https://api.example.com/',
      description: 'Live server',
      isProduction: true,
    ),
  ],
);

Features:

Switch environments from DevTools UI
Automatically reinitializes Dio with new base URL
Persists selection across app restarts
Custom environment support

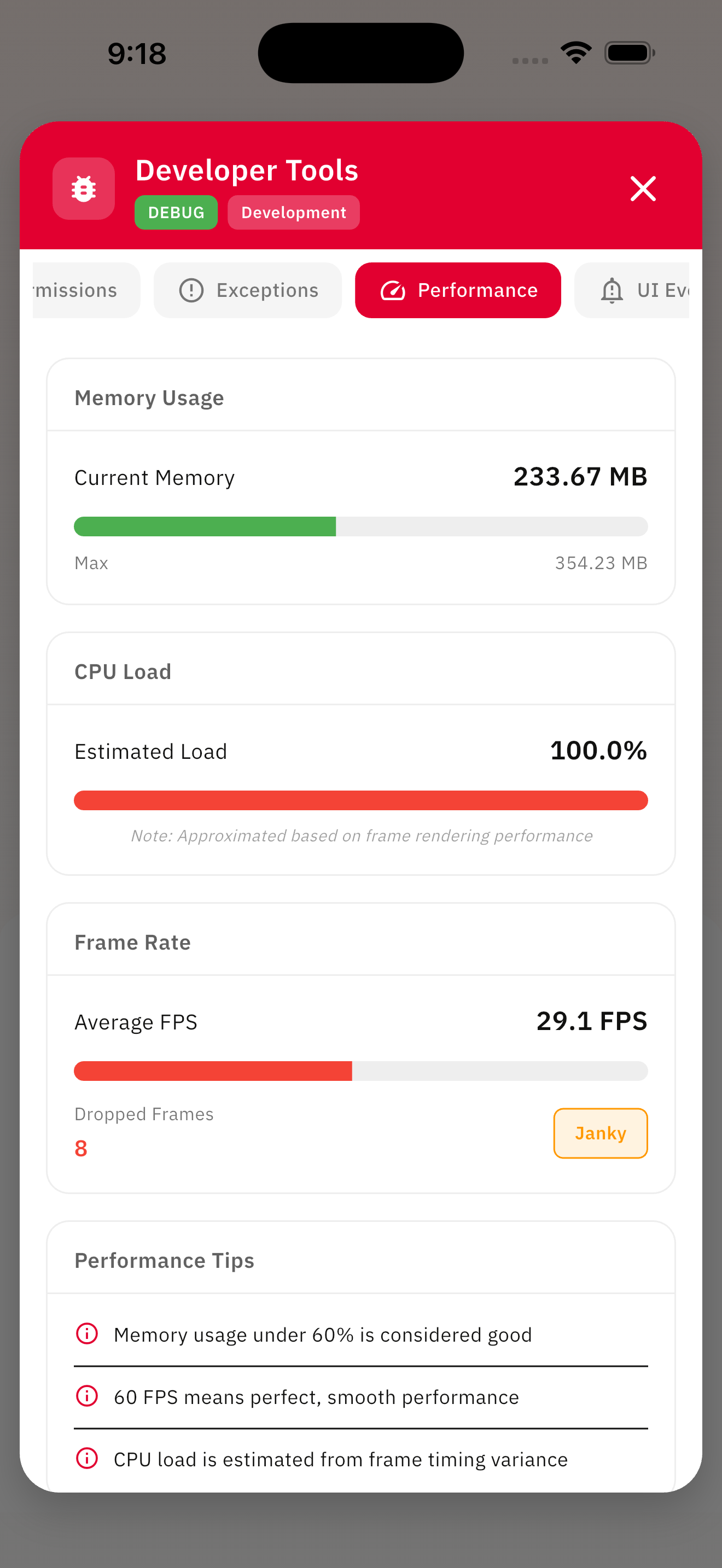

⚡ Performance Monitoring #

Real-time performance metrics updated every 2 seconds:

Metric	Description
Memory	Current RAM usage (MB)
CPU	Estimated CPU load (0-100%)
FPS	Frame rate & dropped frames

// Access performance data programmatically
final stats = PerformanceMonitor().getCurrentStats();
print('Memory: ${stats.memoryUsageMB} MB');
print('CPU: ${stats.cpuUsage}%');
print('FPS: ${stats.fps}');

📢 UI Event Logger #

Automatically tracks user interactions:

import 'package:flutter_advanced_devtools/flutter_advanced_devtools.dart';

// Manually log custom events
UIEventLogger().logEvent(
  type: UIEventType.custom,
  message: 'User completed onboarding',
  data: {'step': 3, 'time_spent': '2m 34s'},
);

Auto-logged events:

Button taps
Navigation changes
Toasts/SnackBars
Dialog displays
Custom user actions

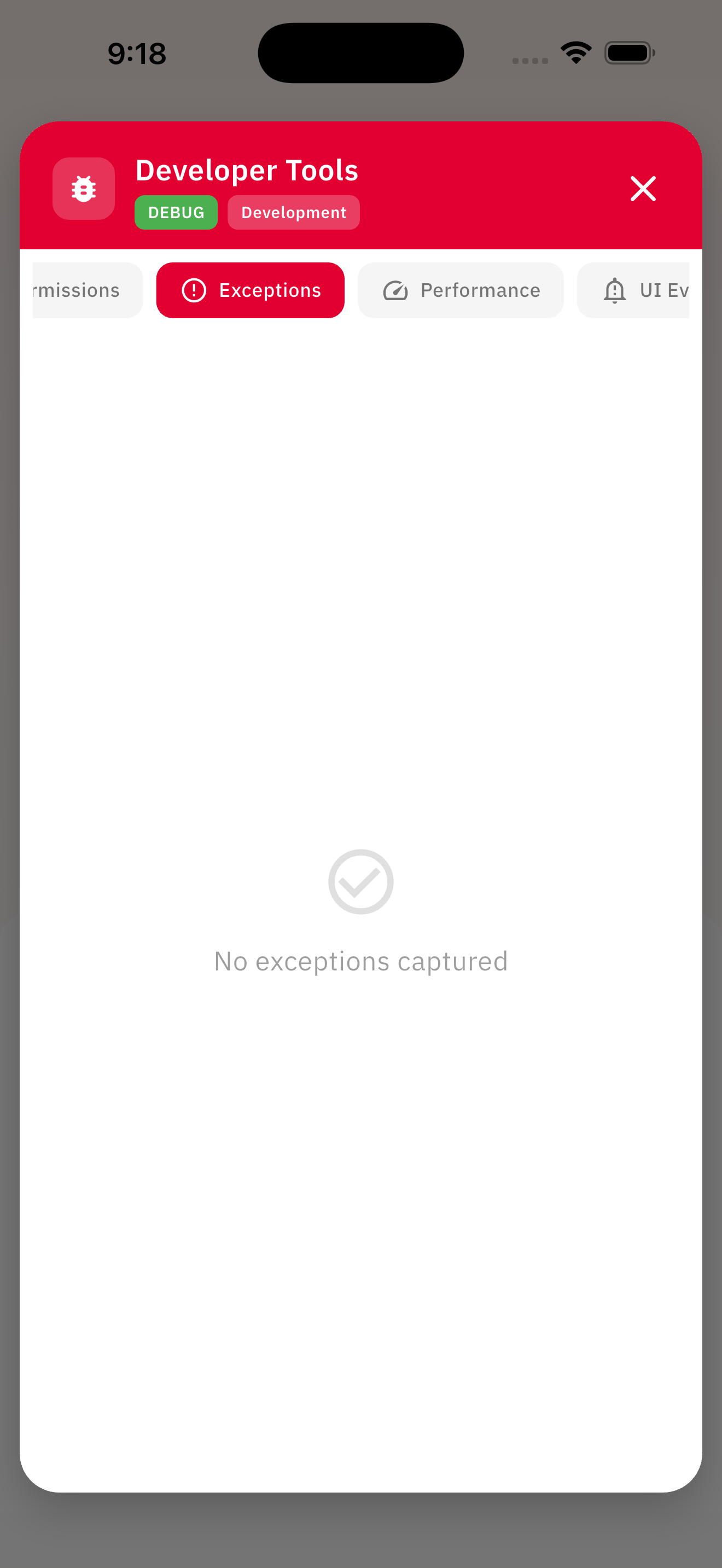

⚠️ Exception Logger #

Catch and view all runtime errors:

void main() async {
  // Initialize exception handling
  FlutterError.onError = (FlutterErrorDetails details) {
    ExceptionLogger().logException(
      details.exception,
      details.stack,
      context: 'Flutter Framework Error',
    );
  };

  runZonedGuarded(() async {
    WidgetsFlutterBinding.ensureInitialized();
    await DevToolsConfig().init();
    runApp(const MyApp());
  }, (error, stack) {
    ExceptionLogger().logException(error, stack, context: 'Async Error');
  });
}

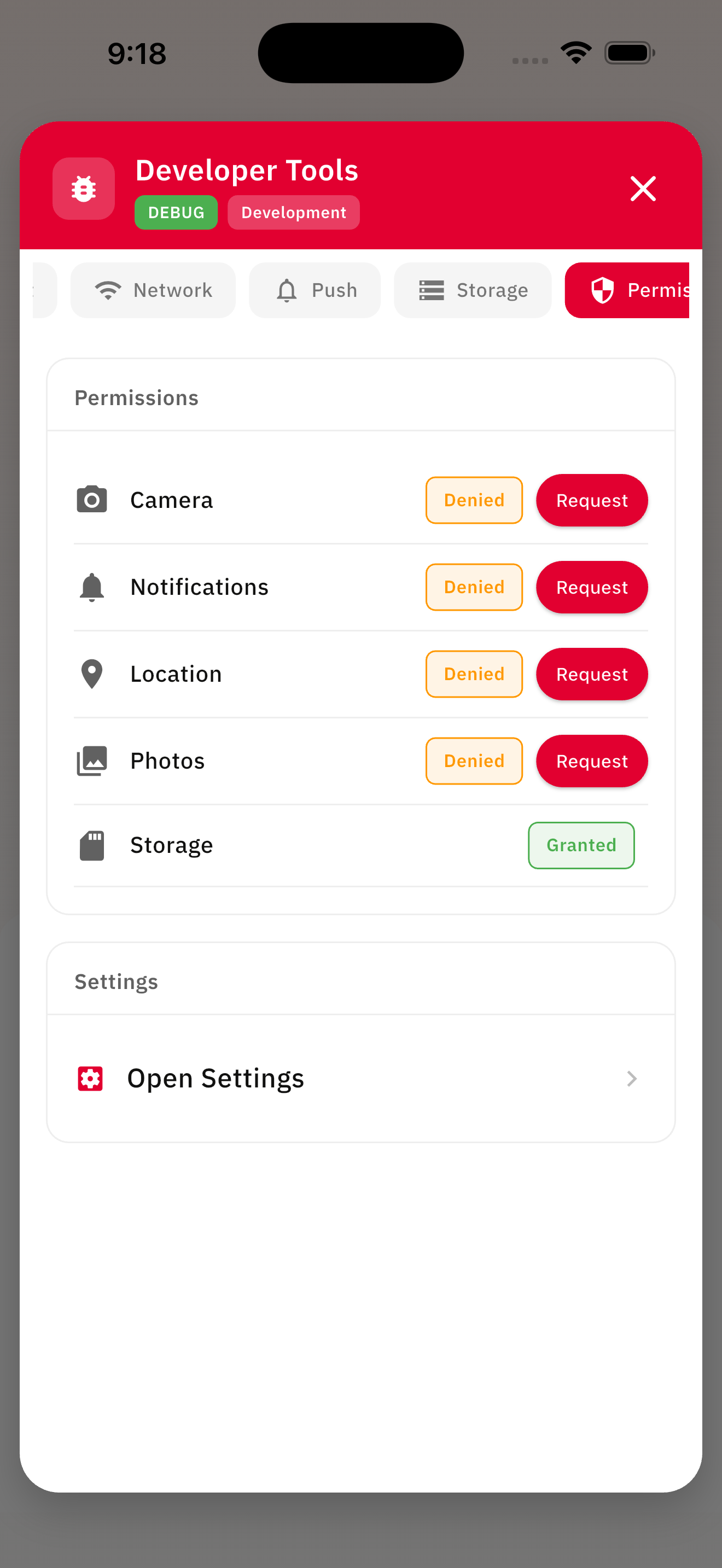

🔐 Permissions Manager #

View and request app permissions:

// The DevTools UI automatically shows:
// - Camera, Location, Storage, Notifications, etc.
// - Current permission status
// - Request button for denied permissions

Requires permission_handler package (already included).

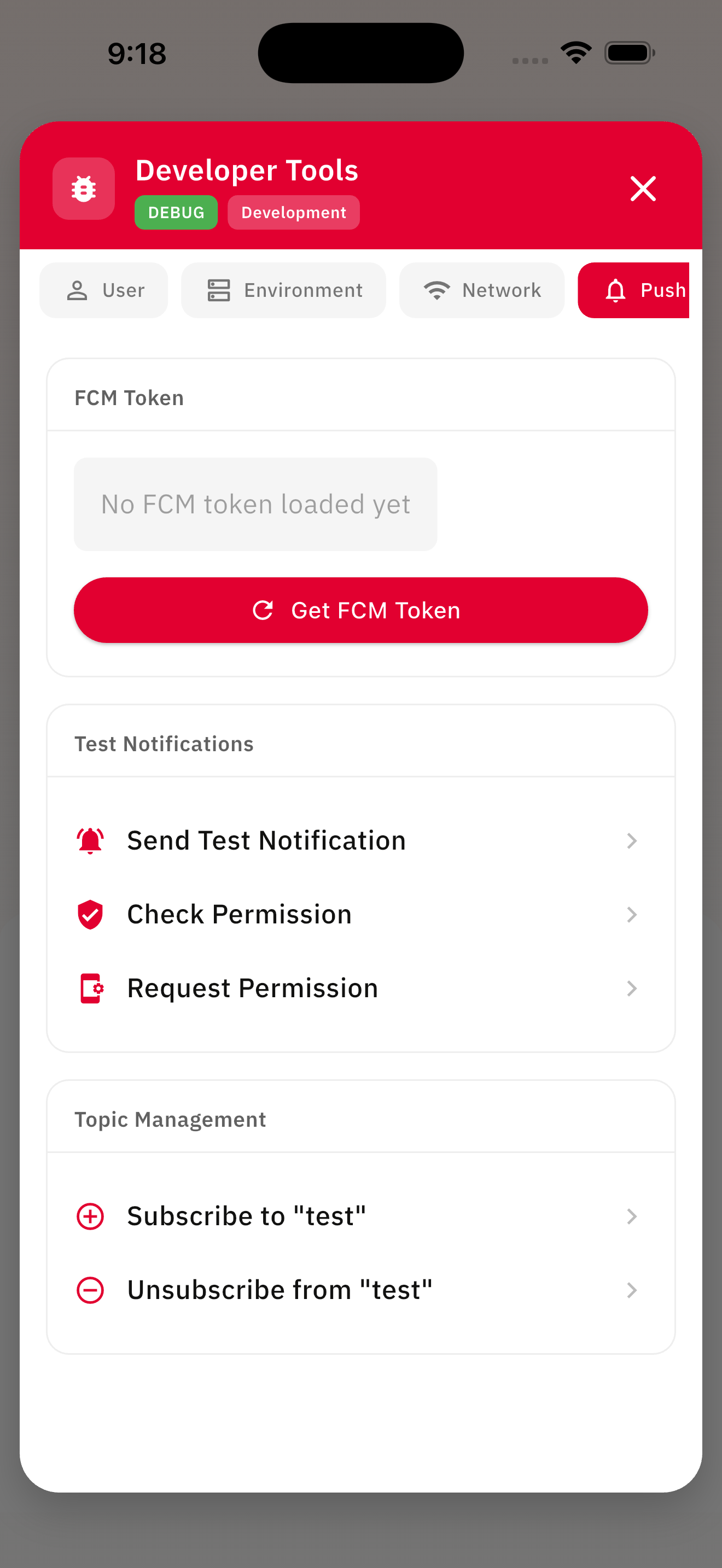

🔔 Firebase Debugging #

Test push notifications without external tools:

View current FCM token
Copy token for testing
Check notification permissions
View last notification payload
Test local notifications

⚙️ Configuration #

Build-Mode Behavior #

DevTools automatically adjusts based on build mode:

Build Mode	DevTools	Network Logger	Performance Monitor
Debug	✅ Enabled	✅ Enabled	✅ Enabled
Profile	✅ Enabled	⚠️ Optional	✅ Enabled
Release	❌ Disabled	❌ Disabled	❌ Disabled

No code changes needed! DevTools is automatically disabled in release builds.

Advanced Configuration #

final config = DevToolsConfig();

// Check current state
print('Build Mode: ${DevToolsConfig.buildModeString}');
print('Base URL: ${config.currentBaseUrl}');
print('Logger Enabled: ${config.isDioLoggerEnabled}');
print('Environment: ${config.currentEnvironmentName}');

// Toggle features
await config.setDioLoggerEnabled(false);
await config.setNetworkAnalysisEnabled(true);

// Reset to defaults
await config.resetToDefault();

// Get environment info
final info = config.getEnvironmentInfo();

🌍 Localization #

Built-in support for:

✅ English (EN)
✅ Arabic (AR) with full RTL support

203+ translation keys covering all DevTools features.

To add your own language, extend the localization files in assets/lang/.

🎨 Theme Customization #

Preset Themes #

DevToolsTheme.material()  // Blue (Material Design)
DevToolsTheme.green()     // Green
DevToolsTheme.orange()    // Orange
DevToolsTheme.purple()    // Purple
DevToolsTheme.red()       // Red
DevToolsTheme.teal()      // Teal
DevToolsTheme.dark()      // Dark mode

Auto-Generate from App Color #

// Automatically creates a harmonious theme
config.setTheme(DevToolsTheme.fromAppColor(
  Theme.of(context).primaryColor,
));

Fully Custom Theme #

config.setTheme(DevToolsTheme(
  primaryColor: Color(0xFF1E88E5),
  secondaryColor: Color(0xFF64B5F6),
  successColor: Color(0xFF43A047),
  warningColor: Color(0xFFFB8C00),
  errorColor: Color(0xFFE53935),
  backgroundColor: Color(0xFFFAFAFA),
  textColor: Color(0xFF212121),
  cardColor: Colors.white,
  borderRadius: 12.0,
  elevation: 4.0,
));

🏗️ Package Structure #

flutter_advanced_devtools/
├── lib/
│   ├── flutter_advanced_devtools.dart      # Main export file
│   ├── dev_tools_config.dart                # Configuration & state
│   ├── dev_tools_theme.dart                 # Theme system
│   ├── dev_tools_preferences.dart           # Persistent storage
│   ├── dev_tools_service.dart               # Core service
│   ├── network_logger.dart                  # HTTP interceptor 🔥
│   ├── exception_logger.dart                # Error tracking
│   ├── ui_event_logger.dart                 # UI event tracking
│   ├── performance_monitor.dart             # Performance metrics
│   ├── firebase_debug_service.dart          # FCM debugging
│   └── widgets/
│       ├── dev_tools_wrapper.dart           # Root wrapper
│       ├── dev_tools_overlay.dart           # Main UI
│       ├── dev_tools_fab.dart               # Floating button
│       └── dev_toast.dart                   # Custom toasts
├── assets/
│   └── lang/
│       ├── en.json                          # English translations
│       └── ar.json                          # Arabic translations
└── example/                                 # Example app

📚 Examples #

Check out the /example folder for complete examples:

✅ Basic Setup - Minimal integration
✅ Dio Integration - Full network logging
✅ Custom Theming - Theme customization
✅ Environment Switching - Multi-environment setup
✅ Advanced Configuration - All features enabled

🔧 Dependencies #

dependencies:
  flutter:
    sdk: flutter
  dio: ^5.0.0                               # For network interceptor
  device_info_plus: ^9.0.0                  # Device information
  package_info_plus: ^4.0.0                 # App version info
  permission_handler: ^11.0.0               # Permissions
  firebase_messaging: ^14.0.0               # FCM support
  flutter_local_notifications: ^16.0.0      # Local notifications
  sensors_plus: ^4.0.0                      # Shake detection
  share_plus: ^7.0.0                        # Share logs
  shared_preferences: ^2.0.0                # Persistent storage

🤝 Contributing #

Contributions are welcome! Please follow these steps:

Fork the repository
Create your feature branch (git checkout -b feature/AmazingFeature)
Commit your changes (git commit -m 'Add some AmazingFeature')
Push to the branch (git push origin feature/AmazingFeature)
Open a Pull Request

📄 License #

This project is licensed under the MIT License - see the LICENSE file for details.

🙏 Acknowledgments #

Inspired by modern developer tools and debugging practices
Built with ❤️ for the Flutter community
Special thanks to all contributors

📞 Support #

📧 Email: ahmedelmwafy@gmail.com
🐛 Issues: GitHub Issues

🌟 Show Your Support #

If this package helped you, please give it a ⭐️ on GitHub!

Made with ❤️ for Flutter developers worldwide

flutter_advanced_devtools 1.0.9 flutter_advanced_devtools: ^1.0.9 copied to clipboard

Metadata
