hollow 1.0.0

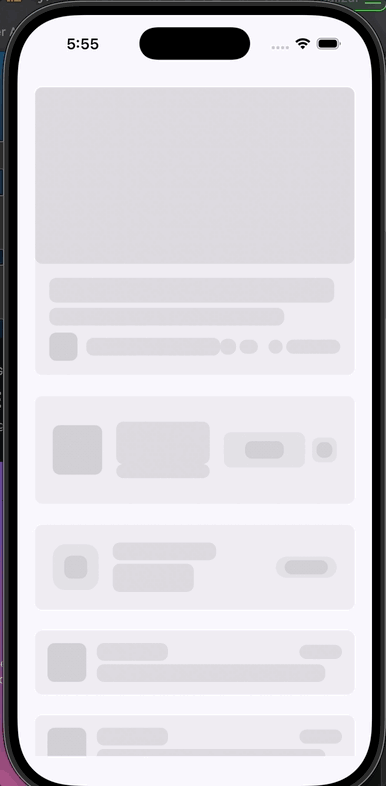

Skeleton loading screens for Flutter. Generates pixel-perfect shimmer placeholders from your real RenderObject tree.

hollow

Pixel-perfect skeleton loading screens for Flutter — extracted from your real RenderObject tree, no manual measurement required.

Features

• Pixel-perfect skeletons from your real RenderObject tree — no manual measurement
• Globally synchronized shimmer animation
• One-command CLI: dart run hollow:build
• Independent border radius per corner
• Dark mode support out of the box
• Adaptive bone widths (percentage-based) for different screen sizes

---

Concept

hollow bridges the gap between loading states and real UI by capturing the actual layout of your widgets. Instead of hand-crafting skeleton placeholders that drift from reality, wrap any widget in Skeleton(...), run the CLI, and get pixel-perfect shimmer placeholders that match your real layout — automatically.

---

Install

dependencies:
  hollow: ^1.0.0

flutter pub add hollow

---

Usage

1. Wrap widgets with Skeleton

import 'package:hollow/hollow.dart';

Skeleton(
  name: 'blog-card',
  loading: isLoading,
  child: BlogCard(data: post),
)

2. Run the CLI to capture

flutter devices                        # find your device id
dart run hollow:build -d iPhone        # scan, capture, generate

The CLI scans your source files via Dart AST analysis, launches your app in capture mode, walks the RenderObject tree for each Skeleton, and writes bone data to lib/bones/.

  💀 hollow build
  ──────────────────────────────────────────────────
  output  lib/bones

  ✓  blog-card               18 bones
  ✓  user-profile           11 bones

  ──────────────────────────────────────────────────
  Writing files

  → blog-card.bones.json
  → user-profile.bones.json
  → bones_registry.dart  (2 skeletons)

  💀 2 skeletons captured.

3. Register bones in main.dart

import 'package:hollow/hollow.dart';
import 'bones/bones_registry.dart';

void main() {
  registerAllBones();
  runApp(MyApp());
}

Every Skeleton(name: 'blog-card') automatically resolves its bones from the registry and displays the shimmer — no extra configuration needed.

---

How it works

The CLI runs your app with HOLLOW_BUILD=true, which makes every Skeleton render its child directly (bypassing the loading state). After the first frame, hollow walks the RenderObject tree and prints structured JSON to stdout. The CLI parses this output, writes *.bones.json files, and generates lib/bones/bones_registry.dart.

Bone positions use percentage widths (x, w as 0–100% of container) and absolute logical pixel heights (y, h) — so skeletons adapt to different screen widths without re-capturing.

Shimmer

All bones share the same AnimationController via BonePainter, producing a globally synchronized shimmer gradient. Dark mode adapts automatically via Theme.of(context).brightness.

---

Migration Guide (v0.x → v1.0.0)

1. Rename HollowSkeleton → Skeleton

// Before
HollowSkeleton(
  fixture: MyWidget(),    // <-- separate fixture widget
  loading: isLoading,
  child: MyWidget(),
)

// After
Skeleton(
  loading: isLoading,
  child: MyWidget(),      // <-- child used directly
)

2. Remove fixture

The fixture parameter is gone. The child widget is now captured directly during the build phase. If you had a separate mock/fixture widget, simply pass your real widget as child — hollow will capture it during dart run hollow:build.

3. Update HollowRunner.run fixtures (if using)

// Before
HollowRunner.run(
  fixtures: () => [
    Skeleton(name: 'card', fixture: CardWidget(), loading: false, child: SizedBox.shrink()),
  ],
)

// After — fixtures now declare child widgets directly
HollowRunner.run(
  fixtures: () => [
    Skeleton(name: 'card', loading: false, child: CardWidget()),
  ],
)

4. Update bones_registry.dart import

The generated registry path remains lib/bones/bones_registry.dart. Just re-run dart run hollow:build to regenerate it.

---

Props

Prop	Type	Default	Description
loading	bool	required	Show skeleton shimmer or real child
child	Widget	required	Your real widget — also captured for bone generation
name	String?	—	Registry lookup key and CLI capture identifier
color	Color?	theme-aware	Base bone color
highlightColor	Color?	theme-aware	Shimmer highlight color
animate	bool	true	Enable shimmer animation
fallback	Widget?	—	Shown when loading but no bones are registered
snapshotConfig	SnapshotConfig?	—	Control which render objects to exclude

---

CLI

flutter devices                              # list available devices
dart run hollow:build -d <device-id>         # capture all skeletons
dart run hollow:build -d iPhone --out lib/bones        # custom output dir
dart run hollow:build -d emulator-5554 --timeout 8000  # longer idle wait

The CLI uses package:analyzer (Dart AST) to find all Skeleton usages in your source code before launching the app — making it robust across different code patterns and Flutter versions.

---

Advanced

Exclude render object types

Skeleton(
  name: 'nav-bar',
  loading: isLoading,
  snapshotConfig: SnapshotConfig(
    excludeTypes: [MyIconWidget, CustomPaint],
  ),
  child: NavBar(),
)

Manual registration

You can register bones programmatically without the CLI:

HollowRegistry.register({
  'my-card': SkeletonResult(
    name: 'my-card',
    width: 375,
    height: 200,
    bones: [
      Bone(x: 0, y: 0, w: 100, h: 200, borderRadius: BorderRadiusData(tl: 12, tr: 12, bl: 0, br: 0)),
      Bone(x: 4, y: 16, w: 92, h: 14, borderRadius: BorderRadiusData.uniform(4)),
      Bone(x: 4, y: 38, w: 60, h: 12, borderRadius: BorderRadiusData.uniform(4)),
    ],
  ),
});

---

Limitations

• Widgets painted via CustomPaint / raw Canvas are captured as their bounding box only
• Platform views are not supported
• One breakpoint captured per build run

---

License

MIT
