floaty_chatheads 1.0.1 copy "floaty_chatheads: ^1.0.1" to clipboard
floaty_chatheads: ^1.0.1 copied to clipboard

A complete rewrite of the floating chathead plugin for Android & iOS. Supports draggable bubbles, expandable Flutter content panels, theming, snap-to-edge physics, accessibility, and bidirectional mes [...]

Floaty Chatheads #

style: very good analysis License: MIT coverage: 100% tests: 132 passed

Installation #

Add floaty_chatheads to your pubspec.yaml:

dependencies:
  floaty_chatheads: ^1.0.1

Then run:

flutter pub get

Requirements:

  • Dart SDK ^3.4.0
  • Flutter >=3.22.0
  • Android 6.0+ (API 23) / iOS 13.0+

A Flutter federated plugin for floating chathead bubbles on Android and iOS. On Android, chatheads live outside your app as system overlays powered by SYSTEM_ALERT_WINDOW. On iOS, chatheads use an app-level UIWindow overlay at the .alert + 1 window level. Both platforms can host any Flutter widget as an expandable content panel -- think Facebook Messenger-style bubbles, mini players, quick-action FABs, or full-screen dashboards.

Successor to floaty_chathead. This is a complete rewrite of the original plugin with a federated architecture, Pigeon-generated type-safe platform channels, iOS support, theming, accessibility, debug tooling, and many more features. If you are migrating from floaty_chathead, see the Migration section below.


Demo #

Android iOS

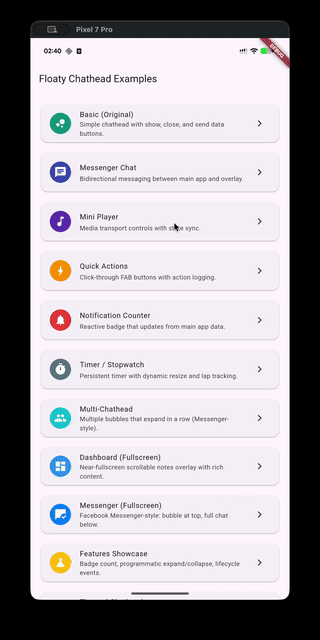

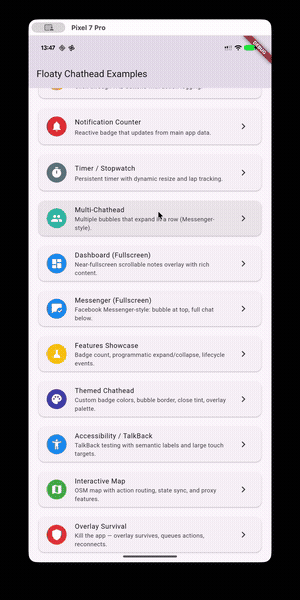

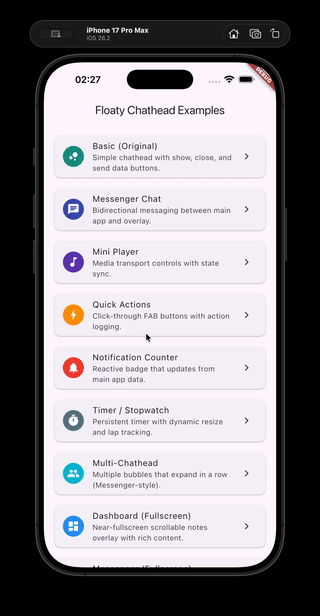

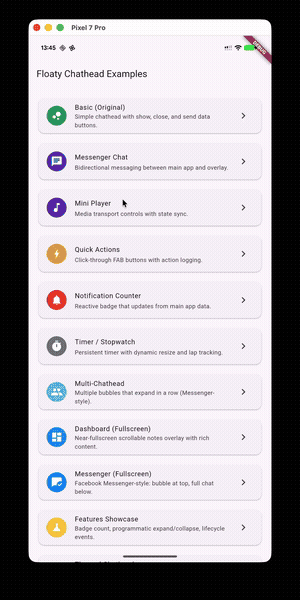

Android demo iOS demo

Platform Comparison #

The plugin exposes a single Dart API for both platforms, but the underlying implementations differ due to OS-level constraints:

Capability Android iOS
Overlay scope System-wide (above all apps) App-level (UIWindow PiP)
Permissions SYSTEM_ALERT_WINDOW + foreground service None required
Bubble rendering Native View with bitmap icon Flutter widget in UIWindow
Edge snapping Spring-based snap with configurable margin Bounds-clamped drag with animation
Entrance animations Pop, slide, fade Not yet implemented
Badge counter Native drawn badge on bubble Not yet implemented
Expand / Collapse Native toggle with accessibility Not yet implemented
Theming Badge, border, shadow, close tint, palette Not yet implemented
Size presets Full support (compact, card, half, full) Width/height respected
Debug inspector FPS, spring HUD, bounds, message log Not yet implemented
TalkBack / VoiceOver Full TalkBack support Not yet implemented
Dragging Custom touch handler + spring physics UIPanGestureRecognizer
Position persistence Supported Not yet implemented
Foreground service Persists across app switches N/A (app-level window)
Separate Flutter engine Yes Yes
Bidirectional messaging Yes Yes
Click-through flag Yes Yes (isUserInteractionEnabled)
Resize from overlay Yes Yes
Close from overlay Yes Yes
Multi-bubble Messenger-style row Via Flutter API callback
Min platform version Android 6.0+ (API 23) iOS 13.0+

Note: On iOS, checkPermission() and requestPermission() always return true since no special permission is needed. Android-only parameters (notification title, snap edge, entrance animation, theme, debug mode, etc.) are accepted by the API but silently ignored on iOS.


Features #

Category Highlights
Chathead Bubbles Draggable bubble with spring-based edge snapping (Android), entrance animations (pop, slide, fade), and multi-bubble support (Messenger-style row)
Content Panel Any Flutter widget rendered in a separate engine isolate (FlutterTextureView on Android, FlutterViewController on iOS)
Bidirectional Messaging shareData / onData streams for real-time main-app <-> overlay communication on both platforms
Badge Counter Numeric badge on the bubble, updated from either side (Android)
Theming API Badge colors, bubble border ring, shadow color, close-target tint, and a full overlay color palette forwarded to the overlay isolate (Android)
Size Presets Named presets (compact, card, halfScreen, fullScreen) instead of raw pixel values
Debug Inspector Native overlay showing FPS counter, spring velocity HUD, view bounds, and Pigeon message log (Android)
TalkBack Accessibility Content descriptions, live-region state announcements, accessibility actions (click, dismiss), and focus management (Android)
Lifecycle Events Streams for onTapped, onClosed, onExpanded, onCollapsed, onDragStart, onDragEnd
Permission Gate FloatyPermissionGate widget that polls for SYSTEM_ALERT_WINDOW and shows a fallback until granted (Android; always passes on iOS)
Programmatic Control expandChatHead(), collapseChatHead(), addChatHead(), removeChatHead(), dynamic resizeContent(), flag updates
Foreground Service Runs as a foreground service so the overlay persists across app switches (Android)

Getting Started #

1. Add the dependency #

dependencies:
  floaty_chatheads: ^1.0.1

2. Android setup #

Add the required permissions to your AndroidManifest.xml:

<uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW" />
<uses-permission android:name="android.permission.FOREGROUND_SERVICE" />
<uses-permission android:name="android.permission.FOREGROUND_SERVICE_SPECIAL_USE" />
<uses-permission android:name="android.permission.WAKE_LOCK" />

3. iOS setup #

No special permissions or Info.plist entries are needed. The overlay uses a UIWindow at windowLevel = .alert + 1 within the app's process.

Requirements:

  • iOS 13.0+
  • Swift 6.1+

4. Declare assets #

flutter:
  assets:
    - assets/chatheadIcon.png
    - assets/close.png
    - assets/closeBg.png
    - assets/notificationIcon.png

On iOS the icon assets are optional since the overlay is rendered entirely by your Flutter widget. On Android they are used for the native bubble bitmap and close-target drawable.

5. Create an overlay entry point #

Every overlay runs in its own Flutter engine, so the entry-point function must be top-level and annotated with @pragma('vm:entry-point'):

@pragma('vm:entry-point')
void overlayMain() {
  WidgetsFlutterBinding.ensureInitialized();
  runApp(const MaterialApp(
    debugShowCheckedModeBanner: false,
    home: MyOverlayWidget(),
  ));
}

This works identically on both Android and iOS -- the plugin creates a dedicated FlutterEngine (Android) or FlutterEngine + FlutterViewController (iOS) and runs the named entry point inside it.

6. Show the chathead #

import 'package:floaty_chatheads/floaty_chatheads.dart';

// Check / request permission first (no-op on iOS).
final granted = await FloatyChatheads.checkPermission();
if (!granted) await FloatyChatheads.requestPermission();

await FloatyChatheads.showChatHead(
  entryPoint: 'overlayMain',
  chatheadIconAsset: 'assets/chatheadIcon.png',
  closeIconAsset: 'assets/close.png',
  closeBackgroundAsset: 'assets/closeBg.png',
  notificationTitle: 'My Chathead',
);

Convenience Helpers #

The plugin ships convenience helpers that dramatically reduce boilerplate.

FloatyOverlayApp -- one-liner overlay bootstrap #

Replaces 5 lines of entry-point boilerplate with one call:

@pragma('vm:entry-point')
void overlayMain() => FloatyOverlayApp.run(const MyOverlayWidget());

Handles ensureInitialized(), FloatyOverlay.setUp(), and wraps your widget in a MaterialApp. Accepts optional theme and navigatorObservers.

FloatyScope -- auto-wired overlay context #

An InheritedWidget that subscribes to all overlay streams and rebuilds when any event fires. No manual stream wiring needed:

@pragma('vm:entry-point')
void overlayMain() => FloatyOverlayApp.run(
  const FloatyScope(child: MyOverlay()),
);

// Inside MyOverlay:
final scope = FloatyScope.of(context);
Text('Last message: ${scope.lastMessage}');
Text('Palette primary: ${scope.palette?.primary}');

Exposes: lastMessage, messages, lastTappedId, lastClosedId, lastExpandedId, lastCollapsedId, lastDragStart, lastDragEnd, and palette.

FloatyLauncher -- one-call launch with auto permissions #

Combines permission check + request + show into a single Future<bool>:

final shown = await FloatyLauncher.show(
  entryPoint: 'overlayMain',
  chatheadIcon: 'assets/icon.png',
  sizePreset: ContentSizePreset.card,
);

Also provides FloatyLauncher.toggle() to show/close with one call.

FloatyController -- lifecycle-aware declarative control #

A ChangeNotifier-based controller that manages the chathead lifecycle. Automatically handles show/close tied to widget lifecycle:

FloatyControllerWidget(
  entryPoint: 'overlayMain',
  chatheadIcon: 'assets/icon.png',
  sizePreset: ContentSizePreset.card,
  onData: (data) => print('Got: $data'),
  child: MyPageContent(),
)

Or use the controller directly for fine-grained control:

final controller = FloatyController(
  entryPoint: 'overlayMain',
  chatheadIcon: 'assets/icon.png',
  onError: (e, st) => debugPrint('Error: $e'),
);
await controller.show();
await controller.toggle();
await controller.sendData({'action': 'refresh'});

FloatyMessenger<T> -- type-safe messaging #

Eliminates raw Object? casting with a serializer/deserializer pair:

// Main app side:
final messenger = FloatyMessenger<ChatMessage>(
  serialize: (msg) => msg.toJson(),
  deserialize: ChatMessage.fromJson,
);
messenger.send(ChatMessage(text: 'Hello!'));
messenger.messages.listen((ChatMessage msg) => print(msg.text));

// Overlay side:
final messenger = FloatyMessenger<ChatMessage>.overlay(
  serialize: (msg) => msg.toJson(),
  deserialize: ChatMessage.fromJson,
);

Pre-built Overlay Widgets #

Drop-in widgets for common overlay use cases. No custom UI needed.

FloatyMiniPlayer #

A media player overlay with play/pause, next/previous, progress bar, and album art support:

@pragma('vm:entry-point')
void playerOverlay() => FloatyOverlayApp.run(
  FloatyMiniPlayer(
    title: 'Now Playing',
    subtitle: 'Artist Name',
    isPlaying: true,
    progress: 0.4,
    onPlayPause: () => FloatyOverlay.shareData({'action': 'toggle'}),
    onClose: FloatyOverlay.closeOverlay,
  ),
);

FloatyNotificationCard #

A toast/notification-style card with icon, title, body, and action buttons:

@pragma('vm:entry-point')
void notifOverlay() => FloatyOverlayApp.run(
  FloatyNotificationCard(
    title: 'New Message',
    body: 'You have 3 unread messages',
    icon: Icons.message,
    actions: [
      FloatyNotificationAction(label: 'View', onPressed: () {}),
      FloatyNotificationAction(label: 'Dismiss', onPressed: FloatyOverlay.closeOverlay),
    ],
  ),
);

Test Suite & Coverage #

The plugin ships with 147 unit and widget tests across all 4 packages:

Package Tests Status
floaty_chatheads 132 ✅ All passing
floaty_chatheads_platform_interface 14 ✅ All passing
floaty_chatheads_android 1 ✅ All passing
Total 147

Coverage (handwritten code, excluding generated Pigeon files) #

File Coverage
floaty_chatheads.dart 100%
floaty_controller.dart 100%
floaty_launcher.dart 100%
floaty_messenger.dart 100%
floaty_overlay.dart 100%
floaty_overlay_app.dart 100%
floaty_permission_gate.dart 100%
floaty_scope.dart 100%
floaty_mini_player.dart 100%
floaty_notification_card.dart 100%
testing.dart 100%
Overall 100%

Platform-only code (Pigeon host API calls, runApp(), private constructors) is excluded via coverage:ignore directives — standard practice for Flutter federated plugins where those paths require a live platform host.

Run tests locally:

# Main package
cd floaty_chatheads && flutter test

# With coverage
flutter test --coverage

# Platform interface
cd floaty_chatheads_platform_interface && flutter test

Testing Utilities #

Import the testing utilities for unit testing overlay-dependent code:

import 'package:floaty_chatheads/testing.dart';

FakeFloatyPlatform #

Drop-in replacement for the platform instance. Tracks all method calls:

final fake = FakeFloatyPlatform();
FloatyChatheadsPlatform.instance = fake;

await FloatyChatheads.showChatHead(entryPoint: 'test');
expect(fake.showChatHeadCalled, isTrue);
expect(fake.lastConfig?.entryPoint, equals('test'));

// Control permission behavior:
fake.permissionGranted = false;
expect(await FloatyChatheads.checkPermission(), isFalse);

FakeOverlayDataSource #

Simulates overlay events for testing overlay-side widgets:

final fake = FakeOverlayDataSource();
fake.emitData({'action': 'refresh'});
fake.emitTapped('default');

Quickstart #

See example/lib/quickstart.dart for a complete, minimal integration using all the helpers (~120 lines total).


API Reference #

FloatyChatheads (main app side) #

Method Description Android iOS
checkPermission() Returns true if overlay permission is granted Yes Always true
requestPermission() Opens system settings for overlay permission Yes Always true
showChatHead({...}) Launches the chathead with full configuration Yes Yes
closeChatHead() Closes the chathead and stops the service Yes Yes
isActive() Whether the overlay is currently visible Yes Yes
addChatHead({id, iconAsset}) Adds another bubble to the group Yes Yes
removeChatHead(id) Removes a bubble by ID Yes Yes
updateBadge(count) Sets the badge number (0 hides it) Yes --
expandChatHead() Programmatically expands the content panel Yes --
collapseChatHead() Programmatically collapses the content panel Yes --
shareData(data) Sends data to the overlay isolate Yes Yes
onData Stream of messages from the overlay Yes Yes
dispose() Tears down the message channel Yes Yes

FloatyOverlay (overlay isolate side) #

Method Description Android iOS
setUp() Initializes the overlay message handler (call once) Yes Yes
onData Stream of messages from the main app Yes Yes
onTapped / onClosed / onExpanded / onCollapsed Lifecycle event streams Yes Yes
onDragStart / onDragEnd Drag event streams with position info Yes Yes
onPaletteChanged Stream of palette updates from the host Yes --
palette Current OverlayColorPalette (nullable) Yes --
resizeContent(w, h) Resizes the content panel from inside the overlay Yes Yes
updateFlag(flag) Changes the window flag (e.g. click-through) Yes Yes
updateBadge(count) Updates the badge from the overlay side Yes --
closeOverlay() Closes the overlay from inside Yes Yes
getOverlayPosition() Returns the current overlay position Yes Yes
getDebugInfo() Returns debug telemetry (debug mode only) Yes --
shareData(data) Sends data to the main app Yes Yes
dispose() Tears down handlers Yes Yes

Theming #

Pass a ChatHeadTheme to showChatHead() to customise the native bubble appearance and deliver a color palette to your overlay widget (Android only for native theming; the palette stream is forwarded on both platforms):

await FloatyChatheads.showChatHead(
  // ...
  theme: ChatHeadTheme(
    badgeColor: Colors.deepPurple.toARGB32(),
    badgeTextColor: Colors.white.toARGB32(),
    bubbleBorderColor: Colors.deepPurpleAccent.toARGB32(),
    bubbleBorderWidth: 2,
    bubbleShadowColor: Colors.black54.toARGB32(),
    closeTintColor: Colors.redAccent.toARGB32(),
    overlayPalette: {
      'primary': Colors.deepPurple.toARGB32(),
      'secondary': Colors.amber.toARGB32(),
      'surface': Colors.white.toARGB32(),
      'background': const Color(0xFFF5F0FF).toARGB32(),
      'onPrimary': Colors.white.toARGB32(),
      'onSecondary': Colors.black.toARGB32(),
      'onSurface': Colors.black87.toARGB32(),
      'error': Colors.red.toARGB32(),
      'onError': Colors.white.toARGB32(),
    },
  ),
);

In the overlay, consume the palette via the stream or the static getter:

FloatyOverlay.setUp();

// Static access.
final primary = FloatyOverlay.palette?.primary;

// Reactive updates.
FloatyOverlay.onPaletteChanged.listen((palette) {
  setState(() => _bg = palette.surface ?? Colors.white);
});

Size Presets #

Instead of specifying raw pixel dimensions, use a ContentSizePreset:

await FloatyChatheads.showChatHead(
  // ...
  sizePreset: ContentSizePreset.halfScreen,
);
Preset Width Height
compact 160 dp 200 dp
card 300 dp 400 dp
halfScreen Full width Half screen
fullScreen Full width Full height

Debug Inspector (Android) #

Enable the native debug overlay during development:

await FloatyChatheads.showChatHead(
  // ...
  debugMode: true,
);

The inspector renders directly on the Android WindowManager layer (does not intercept touches) and displays:

  • FPS counter -- measured via Choreographer.FrameCallback
  • Spring velocity HUD -- current rebound spring velocity of the top chathead
  • State info -- toggled, captured, head count
  • Green bounds rectangles around each ChatHead view
  • Blue bounds rectangle around the content panel

Query debug telemetry from Dart:

final info = await FloatyOverlay.getDebugInfo();

Accessibility (Android TalkBack) #

All native views ship with built-in TalkBack support:

  • ChatHead bubbles: content description updates with badge count (e.g. "Chat bubble default, 3 new messages"), custom accessibility actions for expand/collapse and dismiss
  • Close target: live-region announcement when visible, descriptive label
  • Content panel: receives focus on expand, announces hide on collapse
  • Motion tracker: hidden from accessibility tree
  • Debug overlay: excluded from accessibility

No extra Dart code is required -- accessibility is handled at the native Android layer. For overlay-side semantics, use Flutter's standard Semantics widget (works on both platforms).


Configuration Options #

showChatHead parameters #

Parameter Type Default Description Platform
entryPoint String 'overlayMain' Dart function annotated with @pragma('vm:entry-point') Both
contentWidth int? null Content panel width (dp / pt) Both
contentHeight int? null Content panel height (dp / pt) Both
chatheadIconAsset String? null Asset path for bubble icon Android
closeIconAsset String? null Asset path for close icon Android
closeBackgroundAsset String? null Asset path for close background Android
notificationTitle String? null Foreground-service notification title Android
notificationIconAsset String? null Asset path for notification icon Android
flag OverlayFlag .defaultFlag Window behavior flag Both
enableDrag bool true Whether the bubble is draggable Both
notificationVisibility NotificationVisibility .visibilityPublic Lock-screen visibility Android
snapEdge SnapEdge .both Edge snapping mode Android
snapMargin double -10 Margin from screen edge when snapped Android
persistPosition bool false Restore position across sessions Android
entranceAnimation EntranceAnimation .none Entry animation (pop, slide, fade) Android
theme ChatHeadTheme? null Theming configuration Android
sizePreset ContentSizePreset? null Named size preset (overrides width/height) Android
debugMode bool false Enable native debug inspector Android

iOS Behavior Details #

On iOS the overlay is a UIWindow created at windowLevel = .alert + 1:

  • The window appears above your app's main content but below system UI (status bar, Control Center, etc.)
  • It stays visible while your app is in the foreground but does not persist when the app is backgrounded (unlike Android's system overlay)
  • Dragging uses a UIPanGestureRecognizer with bounds clamping and a 0.2 s settle animation
  • The overlay renders a full FlutterViewController with a transparent background and 16 pt corner radius
  • Default position: top-right corner, 16 pt from the right edge, 80 pt from the top

Since iOS does not have a concept equivalent to Android's SYSTEM_ALERT_WINDOW, the overlay cannot float above other apps. For scenarios that require cross-app presence, consider integrating with iOS Live Activities or PiP APIs separately.


Examples #

The example app ships with 12 demo screens accessible from a gallery page:

# Example Description
1 Basic Show / close / send data
2 Messenger Chat Bidirectional messaging
3 Mini Player Media controls with state sync
4 Quick Actions Click-through FAB overlay
5 Notification Counter Reactive badge updates
6 Timer / Stopwatch Dynamic resize, lap tracking
7 Multi-Chathead Multiple Messenger-style bubbles
8 Dashboard Near-fullscreen scrollable notes
9 Messenger Fullscreen Bubble at top, full chat below
10 Features Showcase Badge, expand/collapse, lifecycle
11 Themed Chathead Badge colors, border, palette delivery
12 Accessibility TalkBack labels and large touch targets

Run the example:

cd floaty_chatheads/example
flutter run

Architecture #

floaty_chatheads/                    # Main package (public API, platform-agnostic)
  lib/src/
    floaty_chatheads.dart            # FloatyChatheads static class
    floaty_overlay.dart              # FloatyOverlay + OverlayColorPalette
    floaty_permission_gate.dart      # Permission gate widget

floaty_chatheads_platform_interface/
  lib/src/models/
    chat_head_config.dart            # Configuration model
    chat_head_theme.dart             # Theming model
    content_size_preset.dart         # Size preset enum

floaty_chatheads_android/
  android/src/main/kotlin/           # Native Kotlin implementation
    FloatyChatheadsPlugin.kt         # Plugin entry point
    floating_chathead/
      ChatHead.kt                    # Bubble view (badge, border, a11y)
      ChatHeads.kt                   # Layout manager + spring physics
      Close.kt                      # Close-target view
      DebugOverlayView.kt           # Debug inspector overlay
    services/
      FloatyContentJobService.kt     # Foreground service + Pigeon host
    utils/
      Managment.kt                   # Shared state (theme, debug, springs)

floaty_chatheads_ios/
  ios/.../Sources/
    FloatyCheaheadsPlugin.swift      # UIWindow overlay + pan gesture
    FloatyChatheadsApi.g.swift       # Pigeon-generated Swift bindings

Communication uses Pigeon for type-safe platform channels on both platforms, plus a BasicMessageChannel relay for data messages between the main app and overlay isolates.


Migration from floaty_chathead #

This package (floaty_chatheads) is the successor to the original floaty_chathead plugin. It is a complete rewrite -- not a drop-in upgrade.

What changed #

Area floaty_chathead (old) floaty_chatheads (new)
Architecture Single package Federated (main + platform_interface + android + ios)
Platform channels Method channel Pigeon-generated type-safe APIs
iOS support None UIWindow-based PiP overlay
Theming None Badge, border, shadow, close tint, overlay palette
Size presets None compact, card, halfScreen, fullScreen
Debug tooling None FPS counter, spring HUD, bounds, message log
Accessibility None Full TalkBack support with actions and focus management
Multi-bubble None Messenger-style row with add/remove by ID
Badge counter None Native badge, updatable from main app or overlay
Expand / Collapse None Programmatic + accessibility actions
Snap behavior Basic Spring-based with configurable edge, margin, persistence
Entrance animations None Pop, slide-in, fade-in
Overlay messaging Basic Bidirectional streams + palette delivery

How to migrate #

  1. Replace floaty_chathead with floaty_chatheads: ^1.0.1 in your pubspec.yaml.
  2. Update imports from package:floaty_chathead/... to package:floaty_chatheads/floaty_chatheads.dart.
  3. Replace method calls with the new static API on FloatyChatheads and FloatyOverlay.
  4. Add Android manifest permissions if not already present (see Getting Started).
  5. Review the Configuration Options for new parameters.

Acknowledgements #

  • flutter_overlay_window by Saad Farhan -- This project draws significant inspiration from flutter_overlay_window for the approach to hosting Flutter widgets inside system overlay windows. The overlay engine lifecycle, FlutterTextureView integration (Android), UIWindow-based PiP approach (iOS), and the BasicMessageChannel-based messaging pattern between the main app and the overlay isolate were all informed by studying that package's design. Thank you for pioneering a clean pattern for Flutter overlays.

  • Facebook Rebound -- Spring physics library used for chathead snapping and drag animations on Android.

  • Very Good CLI -- Project scaffolding and federated plugin structure generated with Very Good CLI.


License #

This project is licensed under the MIT License. See LICENSE for details.

2
likes
130
points
0
downloads

Documentation

API reference

Publisher

unverified uploader

Weekly Downloads

A complete rewrite of the floating chathead plugin for Android & iOS. Supports draggable bubbles, expandable Flutter content panels, theming, snap-to-edge physics, accessibility, and bidirectional messaging between the main app and overlay isolate.

Repository (GitHub)
View/report issues

Topics

#overlay #chathead #floating-window #widget #pip

License

MIT (license)

Dependencies

floaty_chatheads_android, floaty_chatheads_ios, floaty_chatheads_platform_interface, flutter

More

Packages that depend on floaty_chatheads

Packages that implement floaty_chatheads
