wizard_stepper 0.0.10

A simple, customizable and easy-to-use wizard stepper widget for Flutter. Guide users through multi-step processes with clear progress indication and control.

Wizard Stepper

A simple, customizable and easy-to-use wizard stepper widget for Flutter. Guide users through multi-step processes with clear progress indication and control.

Features

• Customizable steps with individual content.
• Customizable step icons
• Tap into the baked-in navigation (next & previous) for quick usage, as well as the ability to add your own custom navigation buttons
• Callbacks for step completion and wizard finishing.
• Ability to listen for wizard events and the internal state of the wizard
• Easy integration with your existing Flutter app; any page widget can become a wizard page

Basic Wizard

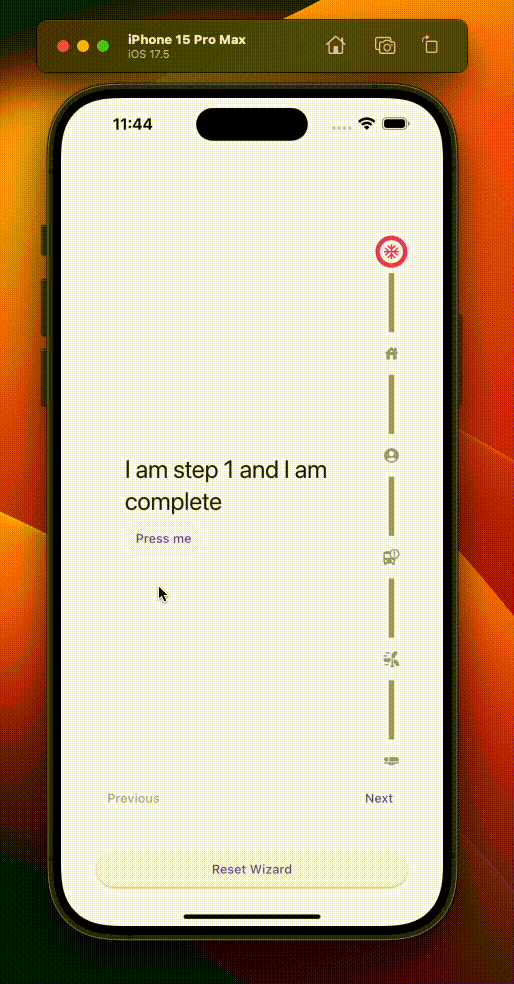

Wizard with Icons

Wizard with *Animated Icons

*(requires your own custom animations)

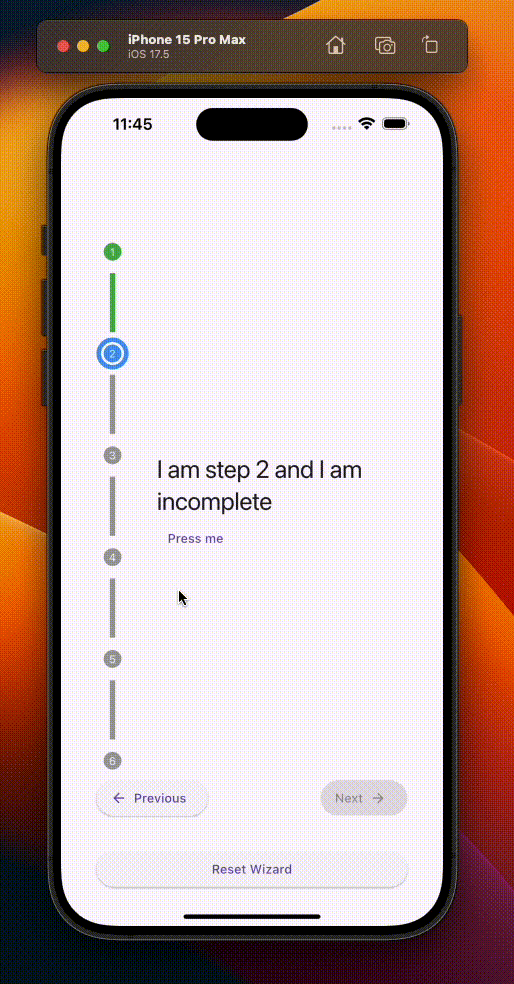

Wizard with Custon Buttons

Installation

1. Add wizard_stepper as a dependency in your pubspec.yaml file:

dependencies:
  wizard_stepper: ^latest_version // Replace with the latest version

copied to clipboard

2. Install it

$ flutter pub get

copied to clipboard

3. Import it

import 'package:wizard_stepper/wizard_stepper.dart';

copied to clipboard

API

WizardStepper

The widget that represents the wizard itself. It holds the region that displays the wizard step navigation as well as the viewport to display the corresponding step in the wizard. Create an instance of the WizardStepper widget preferably inside a widget that can expand and fill the available (i.e. an Expanded widget).

WizardStepper(
  controller: WizardStepperController(
    // options go here
  ),
  steps: [
    OneStep(),
    OneStep(),
    OneStep(),
    OneStep(),
    OneStep(),
  ],
)

copied to clipboard

WizardStep

Mixin that is applied to any widget that wants to participate in the Wizard Stepper flow. All you need to do is add the WizardStep mixin to your widget, and you're good to go.

Note

Caveat: by adding the mixin your widget cannot have a const constructor so just be aware of that.

/// Step class
class OneStep extends StatelessWidget with WizardStep {
  OneStep({super.key});

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [

        // by adding the WizardStep mixin, you have available
        // several flags, notifiers and callbacks to tap into
        // some of the wizard flow events
        Text('I am step number ${stepNumber + 1} and I am ${isComplete ? 'complete' : 'incomplete'}',)
      ]
    )
  }
}

copied to clipboard

By adding the WizardStep mixin, you have available several flags, notifiers and methods to tap into some of the wizard's goodies, such as:

• stepNumber: your index in the wizard's list of steps (zero based)
• isComplete: flag whether the step has been completed or not
• isCurrentStep: flag whether the step is the current one being displayed

Also if you want to listen / subscribe for when these properties change and make your widgets more reactive, you can tap into the available notifiers in the WizardStep mixin, such as:

• isCompleteNotifier: ValueNotifier of type bool to listen for changes in the step completion
• isCurrentStepNotifier: ValueNotifier of type bool to listen for changes in the step being the current one being displayed
• stepNumberNotifier: ValueNotifier of type int to listen for assignment on the step number (only done once initially)
• completeStep(bool): helper method that takes in a bool value to notify the wizard to complete the current step. You can listen to its completion via the isCompleteNotifier above.

/// Step class
class OneStep extends StatelessWidget with WizardStep {
  OneStep({super.key});

  @override
  Widget build(BuildContext context) {
    return Padding(
      padding: const EdgeInsets.all(32),

      // you can add a ValueListenableBuilder to listen to any
      // of the available notifiers in the WizardStep mixin
      child: ValueListenableBuilder<bool>(
        valueListenable: isCompleteNotifier, // <- isCompleteNotifier is available via the WizardStep mixin
        builder: (context, isComplete, child) {
          return Column(
            crossAxisAlignment: CrossAxisAlignment.start,
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              Text('I am step ${stepNumber + 1} and I am ${isComplete ? 'complete' : 'incomplete'}',
                style: Theme.of(context).textTheme.headlineMedium),

              TextButton(onPressed: () {
                completeStep(true); // <- completeStep is available via the WizardStep mixin
              },
              child: Text('Press me'))
            ],
          );
        }
      ),
    );
  }
}

copied to clipboard

Tip

Add the WizardStep mixin to listen to whether your widget is the current step in the wizard as well as whether it has been completed or not by subscribing to the isCurrentStepNotifier and isCompleteNotifier notifiers respectively. You can use the available completeStep helper method to complete your step, then rebuild your widget using a ValueListenableBuilder around your isCompleteNotifier.

WizardStepperController

The controller that orchestrates the wizard interactions and the creation of all elements that come together to bring the wizard to life. You create an instance of the WizardStepperController preferably in the initState of the StatefulWidget that will host your wizard, and set the corresponding options as desired.


  controller = WizardStepperController(

    // callbacks
    onStepCompleted: (index, isComplete) { ... },
    onSelectedStep: (index) { ... },
    onMovedToNext: () { ... },
    onMovedToPrevious: () { ... },
    onWizardReset: () { ... },
    onMovedToLastStep: () { ... },
    onOrientationSwitched: () { ... },

    // position & orientation
    orientation = WizardStepperOrientation.horizontal,
    position = WizardStepperPosition.top,

    // colors
    completedStepColor = Colors.green,
    currentStepColor = Colors.blue,
    stepColor = Colors.grey,
    stepNumberColor = Colors.white,
    dividerColor = Colors.grey,

    // values
    stepSize = 20,
    dividerThickness = 6,
    dividerMargin = 6,
    dividerRadius = 0,
    borderSize = 5,
    stepBackgroundSize = 36,
    stepShape = BoxShape.circle,
    stepIconSize = 20,
    stepBorderRadius = 20,

    // flags
    showStepDividers = true,
    showStepNumber = true,

    // button-related properties
    showNavigationButtons = false,
    previousButtonLabel = 'Previous',
    nextButtonLabel = 'Next',
    finalStepButtonLabel = 'Complete',
    previousButtonStyle,
    nextButtonStyle,
  )

copied to clipboard

WizardStepperController properties

Callbacks

• onStepCompleted(index, isComplete): Returns the index of the completed step as well as a boolean flag to denote its completion.
• onSelectedStep(index): Returns the index of the selected step.
• onMovedToNext: Notifies that the wizard has moved to the next step.
• onMovedToPrevious: Notifies that the wizard has moved to the previous step.
• onWizardReset: Notifies that the wizard has been reset.
• onMovedToLastStep: Notifies that the wizard has moved to the last step. You can consider the wizard complete at this stage.
• onOrientationSwitched: Notifies that the wizard orientation has been switched.

Event Listener

• stepChanges: subscribe to this Stream to obtain events of type WizardStepperEvent. This event contains a property called steps, which contains a List<WizardStepperMetadata>, and each WizardStepperMetadata represents the state of each step in the wizard, in their displayed order. The WizardStepperMetadata class contains the following properties:
  • isComplete: a flag denoting whether the step is complete.
  • isCurrentStep: a flag denoting whether the step is the current one.

controller.stepChanges.listen((event) {
  // read the state of the first step in the wizard
  print(event.steps[0].isComplete);
});

copied to clipboard

Position & Orientation

• orientation: sets the orientation of the wizard steps; it could be one of two values: WizardStepperOrientation.horizontal or WizardStepperOrientation.vertical. Default is horizontal.
• position: sets the position of the wizard steps in regards to the orientation; it could be one of four values: WizardStepperPosition.top, WizardStepperPosition.bottom (for horizontal orientation) or WizardStepperPosition.left, WizardStepperPosition.right (for vertical orientation). Default is top.

Colors

• completedStepColor: sets the color of the completed step. Defaults to Colors.green.
• currentStepColor: sets the color of the current step. Defaults to Colors.blue.
• stepColor: sets the color of the uncompleted steps. Defaults to Colors.grey.
• dividerColor: sets the color of the step dividers. Defaults to Colors.grey.
• stepNumberColor: sets the color of the step number. Defaults to Colors.white.

Styles

• stepLabelStyle: sets the style of the wizard step indicator label when showStepNumber is true. You can use it to set the font family and font size of the step label number. Defaults to TextStyle(fontSize: 12).

Note

The stepNumberColor overrides any color you set using the stepLabelStyle. Be aware of that.

Theming

Of course you can apply theming! Create an instance of WizardStepperThemeData and assign the corresponding values to it, as such:

controller = WizardStepperController(

  // set the colors for your light Theme
  lightTheme: WizardStepperThemeData(
    completedStepColor: Colors.green,
    currentStepColor: Colors.blue,
    stepColor: Colors.grey,
    stepNumberColor: Colors.white,
    dividerColor: Colors.grey,
  ),

  // set the dark theme with your colors
  darkTheme: WizardStepperThemeData(
    completedStepColor: Colors.pinkAccent,
    currentStepColor: Colors.deepPurpleAccent,
    stepColor: Colors.blueGrey,
    stepNumberColor: Colors.black,
    dividerColor: Colors.blueGrey,
  ),
)

copied to clipboard

Note

If no theme is provided, a theme will be applied using the default colors defined in the Colors section, or if a theme is created with just a few color values assigned, it will populate the rest of the colors from the default ones. If a theme is assigned and the platform's theme is switched programmatically, the wizard will rebuild accordingly and display the appropriate theme.

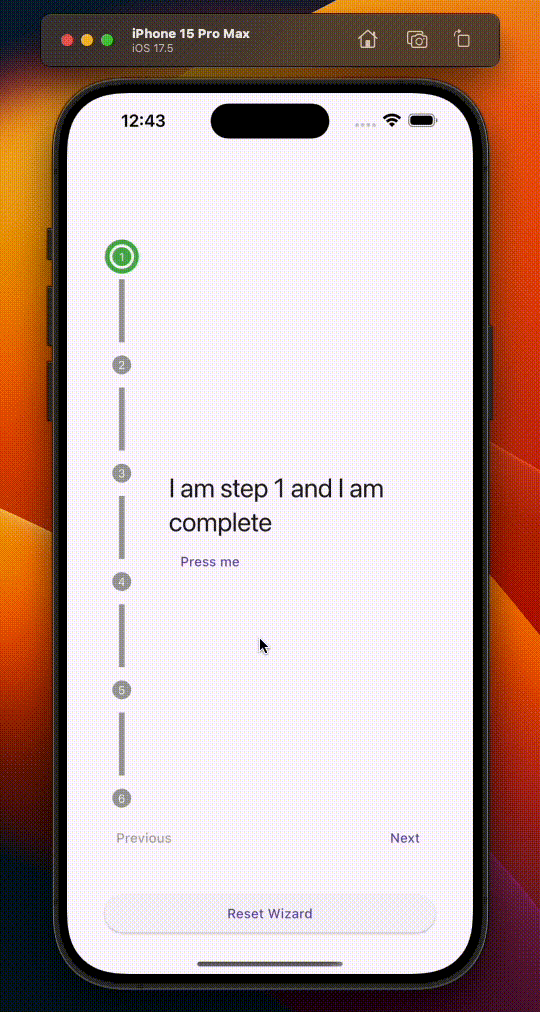

PageView capabilities

• usePageView: set this property in the WizardStepperController controller if you want the pages to have a page view behavior. The wizard stepper creates a PageView widget under the hood and controls it for you. Defaults to false.
• pagingDuration: if usePageView is set to true, this property is used to control the duration of the PageView widget page transitions. Defaults to Duration(milliseconds: 300).
• paginationDirection: if usePageView is set to true, this property is used to control the scrolling direction of the PageView widget pages. If not set at all, it will use the default WizardStepperOrientation value and match the orientation of the wizard step navigation.

Values

• stepSize: sets the size of the wizard step indicator. Defaults to 20.
• dividerThickness: sets the thickness of the dividing widget, whether it is in vertical or horizontal position. Defauls to 6.
• dividerMargin: sets a margin between the wizard step indicators and the dividers. Defaults to 6.
• dividerRadius: sets the border radius of the dividers. Defaults to 0.
• borderSize: sets the border size of the wizard step indicator (not applicable when having widgets as widget steps indicators, only icons and default numbers). Defaults to 5;
• stepBackgroundSize: sets the color of the background of the step (only applicable to the default and icon step indicators). Defaults to 36.
• stepShape: sets the shape of the wizard step indicator. Defaults to BoxShape.circle, but you could use also BoxShape.square.
• stepIconSize: sets the size of the icon (if stepIcons are provided). Defaults to 20.
• stepBorderRadius: sets the border radius of the wizard step indicator. Defaults to 20.

Flags

• showStepDividers: whether we should display dividers or not. Defaults to true.
• showStepNumber: whether we should display step numbers or not. Defaults to true.

Button-related properties

• showNavigationButtons: whether you'd like to use the default navigation buttons or not. Defaults to false meaning you must provide your own navigation capabilities. See the example folder to see how to implement your own navigation capabilities.
• previousButtonLabel: if showNavigationButtons is true, set the label for the previous button. Defaults to Previous.
• nextButtonLabel: if showNavigationButtons is true, set the label for the next button. Defaults to Next.
• finalStepButtonLabel: if showNavigationButtons is true and in the last step, set the label for the next button. Defaults to Complete.
• previousButtonStyle: if showNavigationButtons is true, set the style for the previous button.
• nextButtonStyle: if showNavigationButtons is true, set the style for the next button.

Available helper methods and read-only getters in the WizardStepperController

• initialize(wizardSteps, { wizardStepIcons, wizardStepWidgets }): initializes the WizardStepper controller provided a list of WizardSteps items. Optional: provide a list of icons or a list of widget as icons.

Note

The initialize method is already being called by the WizardStepper core widget during bootstrapping, so no need to call this method again, unless strictly necessary. It is best to call resetWizard to reset the wizard to initial values, but if you want to blow up the internal state and "reset it to factory defaults", then you can call initialize.

• switchOrientation(WizardStepperOrientation newOrientation, WizardStepperPosition newPosition): switches the orientation of the wizard, provided the new orientation (horizontal or vertical) and the new position (top, bottom, left or right).
• *resetWizard: resets the wizard to its initial state.
• allStepsCompleted: returns a bool value whether all steps are completed.
• canMoveToNextStep: returns a bool value whether the wizard can move to the next step.
• canMoveToPreviousStep: returns a bool value whether the wizard can move to the previous step.
• isFirstStep: returns a bool value whether the wizard is in the first step.
• isLastStep: returns a bool value whether the wizard is in the last step.
• moveToNextStep: moves to the next step if allowed by the internal logic of the controller.
• moveToPreviousStep: moves to the previous step if allowed by the internal logic of the controller.
• moveToLastStep: moves to the last step if allowed by the internal logic of the controller.

Read-only getters

• currentStepIndex: returns the index of the current step as an int.
• currentStep: returns the current step as an instance of WizardStep.
• numberOfSteps: returns the number of steps in the wizard as an int.
• steps: returns the steps as an List<WizardStep>.
• stepIcons: returns the step icons as an List<IconData>.
• stepWidgets: returns the step widgets as an List<Widget>.

Bugs or Requests

If you encounter any problems feel free to open an issue. If you feel this package is missing a feature, please raise a ticket on GitHub and I'll look into it. Pull request are also welcome.
