infinity_canvas 0.8.1

High-performance infinite canvas for Flutter with layered rendering and controller-driven camera/item APIs.

High-performance infinite canvas for Flutter

---

• Mixed layers: positioned widgets, painter passes, and overlays
• Programmatic camera/item control
• Built for large scenes (node editors, maps, strategy UIs, visual tooling)

Install

dependencies:
  infinity_canvas: ^0.8.0

Quickstart

import 'package:flutter/material.dart';
import 'package:infinity_canvas/infinity_canvas.dart';

class MyCanvasPage extends StatefulWidget {
  const MyCanvasPage({super.key});

  @override
  State<MyCanvasPage> createState() => _MyCanvasPageState();
}

class _MyCanvasPageState extends State<MyCanvasPage> {
  late final CanvasController controller;

  @override
  void initState() {
    super.initState();
    controller = CanvasController(
      initialWorldTopLeft: const Offset(-200, -120),
      initialZoom: 1.1,
    );
  }

  @override
  void dispose() {
    controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return InfinityCanvas(
      controller: controller,
      enableCulling: true,
      layers: [
        CanvasLayer.positionedItems(
          id: 'nodes',
          items: [
            CanvasItem(
              id: 'node-1',
              worldPosition: const Offset(120, 100),
              behavior: CanvasItemBehavior.nodeEditor(),
              child: const _Card('Node 1'),
            ),
          ],
        ),
      ],
    );
  }
}

class _Card extends StatelessWidget {
  final String title;
  const _Card(this.title);

  @override
  Widget build(BuildContext context) {
    return Container(
      width: 180,
      height: 92,
      padding: const EdgeInsets.all(10),
      decoration: BoxDecoration(
        color: const Color(0xFF0F172A),
        borderRadius: BorderRadius.circular(10),
        border: Border.all(color: const Color(0x3347A3FF)),
      ),
      child: Text(title, style: const TextStyle(color: Colors.white)),
    );
  }
}

Use Like This

Move items

controller.items.setWorldPosition('node-1', const Offset(300, 240));

controller.items.setWorldPositions({
  'node-1': const Offset(300, 240),
  'node-2': const Offset(620, 300),
});

To add another item, create another CanvasItem(...) with its own id, worldPosition, and child, then include it in the items: [...] list.

Camera controls

controller.camera.jumpToWorldTopLeft(const Offset(-500, -300), zoom: 1.2);
controller.camera.jumpToWorldCenter(const Offset(0, 0), zoom: 0.8);

await controller.camera.animateToWorldCenter(
  const Offset(1200, 800),
  zoom: 1.0,
  duration: const Duration(milliseconds: 420),
);

controller.camera.fitAllItems();

Layer types

InfinityCanvas(
  controller: controller,
  layers: [
    CanvasLayer.painter(
      id: 'bg',
      painterBuilder: (transform) => MyBackgroundPainter(transform),
    ),
    CanvasLayer.positionedItems(id: 'nodes', items: items),
    CanvasLayer.overlay(
      id: 'hud',
      ignorePointer: false,
      builder: (context, transform, controller) => const MyHudWidget(),
    ),
  ],
);

Hover, drag, and item transform

CanvasItem(
  id: 'node-3',
  worldPosition: const Offset(200, 120),
  onHoverChanged: (hovered) {
    controller.items.setTransform(
      'node-3',
      hovered ? (Matrix4.identity()..scale(1.04)) : null,
    );
  },
  onDragUpdate: (event) {
    // event.worldPosition / event.worldDelta / event.pointerGlobalPosition
  },
  child: const _Card('Hover me'),
);

Performance Defaults

• Use enableCulling: true for larger scenes
• Give items a fixed CanvasItemSize where possible
• Prefer CanvasLayer.painter for very dense static visuals
• Use controller.items.setWorldPositions(...) for batch updates
• Keep overlays lean (CanvasLayer.overlay) for HUD/interaction logic

Example Demos

See example/lib/main.dart:

• Minimal Items
• Painted Item Widgets

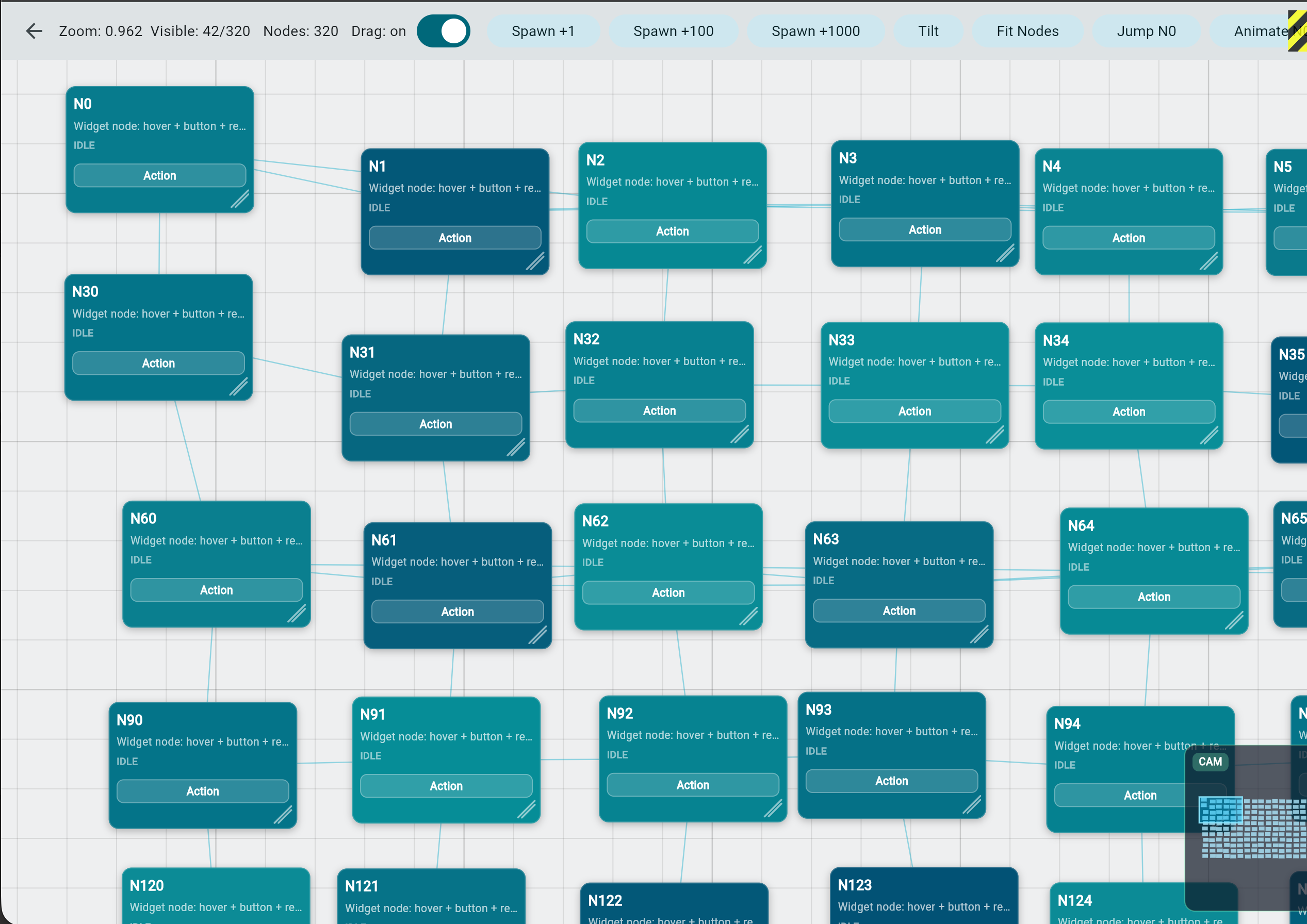

• Node Canvas (Clean)
• Grouped Nodes (Linear)
• Input Smoke
• Docking Windows

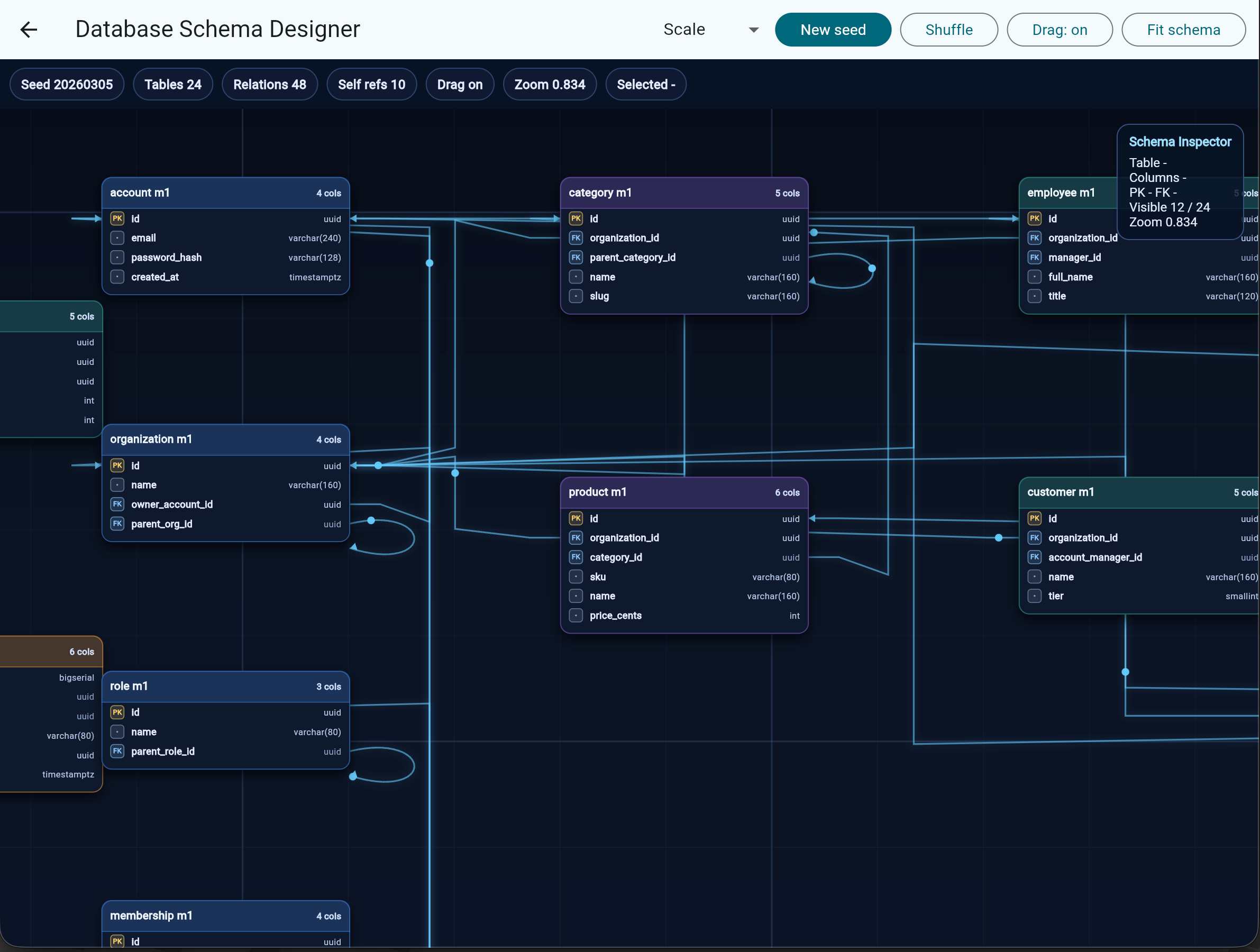

• Database Schema Designer
• Tower Defense
• Massive Multi-Widget Art Scene
• Galaxy Trade Map
• Orbital Constellation

API Appendix (Compact)

CanvasController

• camera: transform, pan, zoom, fit, jump, animate
• items: read diagnostics + mutate item state
• layers: show/hide layers

controller.camera

• jumpToWorldTopLeft(...)
• jumpToWorldCenter(...)
• animateToWorldTopLeft(...)
• animateToWorldCenter(...)
• fitWorldRect(...)
• fitAllItems(...)
• setScale(...)
• translateWorld(...)
• screenToWorld(...)
• worldToScreen(...)
• renderStatsListenable

controller.items

• getDiagnostics(id)
• getWorldPosition(id)
• positionListenable(id)
• setWorldPosition(id, offset)
• setWorldPositions({id: offset})
• setTransform(id, matrixOrNull)
• mutateTransform(id, mutator)
• clearTransform(id)
• setDragEnabled(id, enabled)
• bringToFront(id)

CanvasLayer

• CanvasLayer.positionedItems(...)
• CanvasLayer.painter(...)
• CanvasLayer.overlay(...)

CanvasInputBehavior

• CanvasInputBehavior.desktop()
• CanvasInputBehavior.touch()
• CanvasInputBehavior.locked()
