hand_drawn_toolkit 0.1.2

A lightweight Flutter package for rendering hand-drawn, sketchy lines, borders, and containers.

Hand Drawn Toolkit

A lightweight Flutter package for rendering hand-drawn, sketchy lines, borders, and containers with a natural, organic feel.

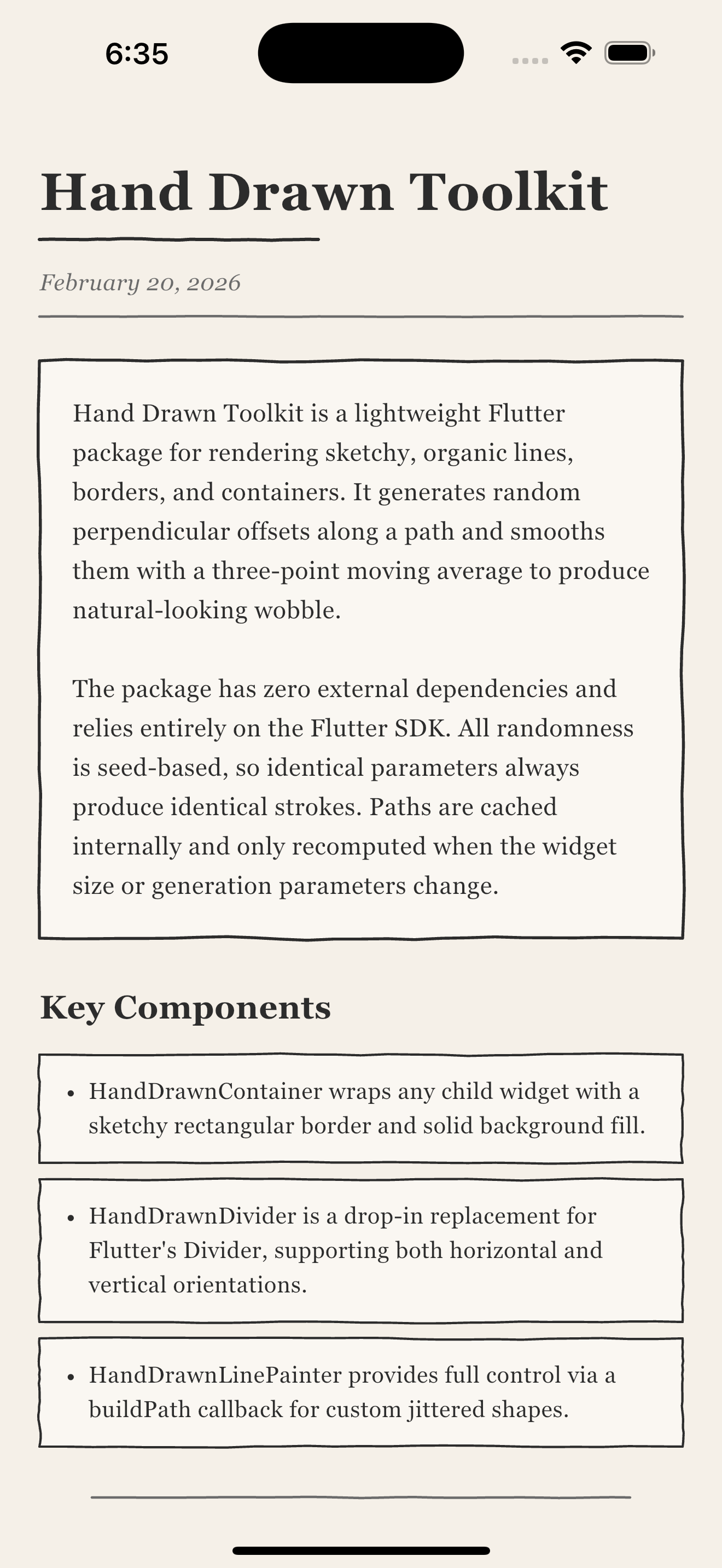

Example

Features

• Realistic hand-drawn borders, dividers, and custom path shapes
• Smooth, organic wobble via 3-point moving average smoothing
• Fully customizable styling (irregularity, segments, stroke width)
• Deterministic seed-based generation — identical parameters always produce identical strokes
• Internal path caching for efficient repaints
• Zero external dependencies — only the Flutter SDK

Installation

Add the package to your pubspec.yaml:

dependencies:
  hand_drawn_toolkit: ^0.1.2

Then run:

flutter pub get

Quick Start

import 'package:hand_drawn_toolkit/hand_drawn_toolkit.dart';

// Sketchy container around any widget:
HandDrawnContainer(
  child: Text('Looks hand-drawn!'),
)

// Sketchy divider:
HandDrawnDivider()

Usage Guide

HandDrawnContainer

Wraps a child widget with a hand-drawn rectangular border and solid background fill:

HandDrawnContainer(
  backgroundColor: Colors.white,
  strokeColor: Colors.black87,
  strokeWidth: 2.0,
  irregularity: 3.5,
  seed: 42,
  padding: EdgeInsets.all(20),
  child: Text('Sketchy!'),
)

Animating the Border

Use borderOpacity to fade the border in or out without changing the stroke color — useful for entrance animations or interactive states:

HandDrawnContainer(
  borderOpacity: _animationController.value,
  child: MyContent(),
)

Varying the Wobble Pattern

Each unique seed produces a different jitter pattern. Use this to give adjacent containers distinct borders:

for (int i = 0; i < items.length; i++)
  HandDrawnContainer(
    seed: i * 17 + 3,
    child: ListTile(title: Text(items[i])),
  )

HandDrawnDivider

A drop-in sketchy replacement for Flutter's Divider, supporting both orientations:

// Horizontal (default)
Column(
  children: [
    Text('Section A'),
    HandDrawnDivider(),
    Text('Section B'),
  ],
)

// Vertical
Row(
  children: [
    Text('Left'),
    HandDrawnDivider(direction: Axis.vertical, height: 40),
    Text('Right'),
  ],
)

With indentation:

HandDrawnDivider(
  indent: 16,
  endIndent: 16,
  color: Colors.grey,
)

Using HandDrawnLinePainter

For full control, use the painter directly with CustomPaint. The buildPath callback receives a HandDrawnHelpers instance with methods for generating jittered paths:

CustomPaint(
  painter: HandDrawnLinePainter(
    color: Colors.black,
    strokeWidth: 2.0,
    irregularity: 3.5,
    buildPath: (size, helpers) => helpers.rectBorder(size),
  ),
  child: MyWidget(),
)

Use it as a foregroundPainter to draw the stroke on top of content:

CustomPaint(
  foregroundPainter: HandDrawnLinePainter(
    color: Colors.red,
    buildPath: (size, h) => h.lineHorizontal(size),
  ),
  child: MyWidget(),
)

Custom Path Shapes

Use HandDrawnHelpers.smoothedOffsets() to build arbitrary jittered paths beyond the built-in shapes:

HandDrawnLinePainter(
  color: Colors.deepPurple,
  strokeWidth: 2.5,
  irregularity: 2.0,
  buildPath: (size, h) {
    // A diagonal line from bottom-left to top-right with wobble
    final offsets = h.smoothedOffsets();
    final dx = size.width / h.segments;
    final path = Path()..moveTo(0, size.height);
    for (int i = 1; i <= h.segments; i++) {
      final t = i / h.segments;
      final y = size.height * (1 - t) + offsets[i];
      path.lineTo(dx * i, y);
    }
    return path;
  },
)

Customization

Core Parameters

These parameters are shared across all APIs:

Parameter	Type	Default	Description
irregularity	double	3.5	Jitter magnitude in pixels (0 = straight, 6+ = very rough)
segments	int	24	Points per edge (more = smoother wobble, fewer = chunkier)
seed	int	42	Random seed (same seed = same stroke every time)
strokeWidth	double	2.0	Stroke thickness in logical pixels
color	Color	varies	Stroke color

HandDrawnContainer Properties

Parameter	Type	Default	Description
backgroundColor	Color	Colors.white	Solid fill behind content
strokeColor	Color	Colors.black87	Border stroke color
padding	EdgeInsets	EdgeInsets.all(20)	Inner padding
borderOpacity	double	1.0	Border opacity multiplier (0.0–1.0)

HandDrawnDivider Properties

Parameter	Type	Default	Description
direction	Axis	Axis.horizontal	Line orientation
thickness	double	1.5	Stroke width (subtler default than container)
width	double?	double.infinity	Horizontal divider length
height	double?	null	Vertical divider length
indent	double	0.0	Start padding
endIndent	double	0.0	End padding

How It Works

1. Offset generation — smoothedOffsets() creates random perpendicular offsets for each segment point. First and last points are pinned to zero so strokes start and end cleanly.

2. Smoothing — A 3-point moving average softens harsh spikes while preserving the organic feel, preventing the "angry zigzag" look that raw random offsets produce.

3. Path assembly — Built-in helpers (lineHorizontal, lineVertical, rectBorder) stitch smoothed offsets into Flutter Path objects. rectBorder uses four independent offset sets so irregularity varies around the perimeter.

4. Caching — HandDrawnLinePainter caches the generated path and only recomputes when the widget size or generation parameters change.

5. Determinism — All randomness flows through dart:math.Random(seed), so identical parameters always produce identical strokes.

Best Practices

Tune irregularity to context — borders look good at 2.0–4.0, while dividers work better at 0.5–1.5. The defaults reflect this (3.5 for containers, 1.0 for dividers).

Use unique seeds for adjacent elements to prevent identical wobble patterns lining up:

ListView.builder(
  itemBuilder: (context, index) => HandDrawnContainer(
    seed: index * 17 + 3,
    child: MyListItem(index),
  ),
)

Keep segment count reasonable — 20–30 segments is the sweet spot for most use cases. Going above 50 adds computation without visible improvement at typical widget sizes.

Leverage caching — the painter only recomputes when parameters or size change, so avoid recreating HandDrawnLinePainter instances unnecessarily in build methods. The convenience widgets (HandDrawnContainer, HandDrawnDivider) handle this correctly by default.

License

MIT License — see LICENSE for details.

Contributing

Contributions are welcome! Please feel free to submit issues and pull requests.
