floating_palette 0.1.0

A Flutter plugin for creating floating palette panels on macOS. Provides native floating windows that automatically size to fit Flutter widget content.

floating_palette

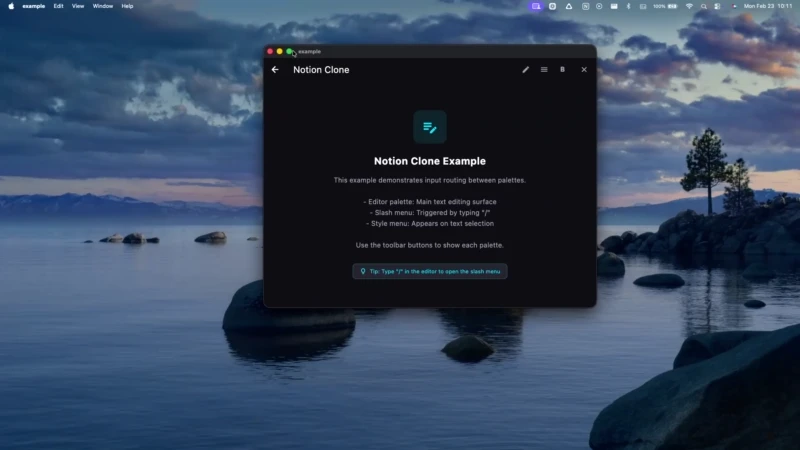

Native floating windows for Flutter desktop apps. Build Notion-style menus, Spotlight-style search, tooltips, and more — each running in its own native window.

Features

• Native Windows — Each palette runs in its own NSPanel, not a Flutter overlay
• Code Generation — Define palettes with annotations, get type-safe controllers
• 5 Presets — Quick configuration for menus, tooltips, modals, spotlight, and persistent panels
• Type-Safe Events — Communicate between your app and palettes with typed events
• Transforms & Effects — Scale, rotate, flip, shake, pulse, bounce

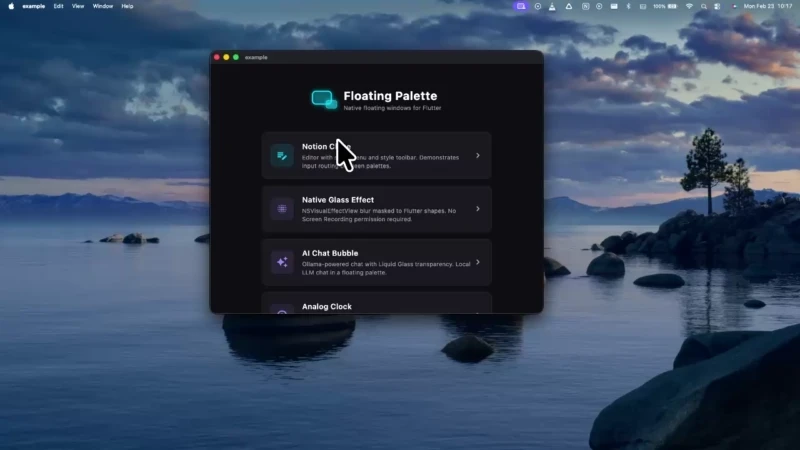

• Glass/Blur Effects — Native NSVisualEffectView with custom path masking
• Snap-to-Palette — Attach palettes together so they move as one
• Hot Restart Safe — Native windows survive hot restart, Dart state syncs automatically

Installation

# pubspec.yaml
dependencies:
  floating_palette: ^0.1.0
  floating_palette_annotations: ^0.1.0

dev_dependencies:
  floating_palette_generator: ^0.1.0
  build_runner: ^2.4.0

Quick Start

1. Define Your Palettes

// lib/palette_setup.dart
import 'package:flutter/widgets.dart';
import 'package:floating_palette/floating_palette.dart';
import 'package:floating_palette_annotations/floating_palette_annotations.dart';

part 'palette_setup.g.dart';

@FloatingPaletteApp(palettes: [
  PaletteAnnotation(
    id: 'command-menu',
    widget: CommandMenu,
    preset: Preset.menu,
    width: 320,
    events: [
      Event(CommandSelected),
    ],
  ),
  PaletteAnnotation(
    id: 'spotlight',
    widget: SpotlightSearch,
    preset: Preset.spotlight,
  ),
])
class PaletteSetup {}

2. Initialize at Startup

void main() async {
  WidgetsFlutterBinding.ensureInitialized();
  await Palettes.init();
  runApp(const MyApp());
}

3. Show Palettes

// Show near cursor
Palettes.commandMenu.show(
  position: PalettePosition.nearCursor(),
);

// Toggle visibility
Palettes.spotlight.toggle();

4. Build Palette Widgets

class CommandMenu extends StatelessWidget {
  const CommandMenu({super.key});

  @override
  Widget build(BuildContext context) {
    return PaletteScaffold(
      backgroundColor: Colors.white,
      child: ListView(
        children: commands.map((cmd) => ListTile(
          title: Text(cmd.name),
          onTap: () {
            Palette.of(context).emit(CommandSelected(cmd.id));
            Palette.of(context).hide();
          },
        )).toList(),
      ),
    );
  }
}

5. Listen for Events

@override
void initState() {
  super.initState();
  Palettes.commandMenu.onEvent<CommandSelected>((event) {
    executeCommand(event.commandId);
  });
}

6. Run Code Generation

dart run build_runner build

Presets

Presets provide sensible defaults for common palette types. Individual fields override preset defaults.

Preset	Description	Key Defaults
Preset.menu	Dropdown/context menu	Near cursor, hides on click outside & escape, takes focus, 280×400
Preset.tooltip	Hint popup	Near cursor, hides on click outside & escape & focus lost, no focus, 200×150
Preset.modal	Dialog	Centered, hides on escape only, takes focus, 480×200
Preset.spotlight	Command palette	Centered near top, hides on click outside & escape, returns to previous app, 600×400
Preset.persistent	Floating panel	No auto-hide, draggable, keeps alive, 300 wide

PaletteAnnotation(
  id: 'my-menu',
  widget: MyMenu,
  preset: Preset.menu,  // Use menu defaults
  width: 280,           // Override width
)

Configuration Reference

Annotation Options

All options on PaletteAnnotation:

Option	Type	Default	Description
id	String	required	Unique palette identifier
widget	Type	required	Widget class to render
args	Type?	null	Optional typed args class
events	List<Event>	[]	Events this palette sends/receives
eventNamespace	String?	Same as id	Namespace for event IDs
preset	Preset?	null	Preset for sensible defaults

Size Configuration

Option	Type	Default	Description
width	double?	400	Fixed width in pixels
minHeight	double?	100	Minimum height
maxHeight	double?	600	Maximum height before scrolling
initialWidth	double?	Same as width	Initial width for resizable palettes
initialHeight	double?	Same as minHeight	Initial height for resizable palettes
resizable	bool?	false	Allow user resize
allowSnap	bool?	false	Allow macOS window snapping

Behavior Configuration

Option	Type	Default	Description
hideOnClickOutside	bool?	true	Hide when clicking outside
hideOnEscape	bool?	true	Hide on Escape key
hideOnFocusLost	bool?	false	Hide when losing focus
draggable	bool?	false	Allow dragging
keepAlive	bool?	false	Keep rendering when unfocused
focus	TakesFocus?	TakesFocus.yes	Whether to take keyboard focus
onHideFocus	OnHideFocus?	OnHideFocus.mainWindow	Where focus goes on hide
alwaysOnTop	bool?	false	Pin above all windows when shown

Appearance

Appearance is configured at runtime via PaletteScaffold:

PaletteScaffold(
  backgroundColor: Colors.white,
  cornerRadius: 12,          // Default: 12
  padding: EdgeInsets.all(8),
  border: GradientBorder(    // Animated gradient border
    width: 4.0,
    colors: [Colors.blue, Colors.purple],
  ),
  overflowPadding: EdgeInsets.only(bottom: 32), // For tooltips
  child: MyContent(),
)

Positioning

// Near cursor (default for menus)
Palettes.menu.show(
  position: PalettePosition.nearCursor(offset: Offset(0, 8)),
);

// Centered on screen (default for modals/spotlight)
Palettes.modal.show(
  position: PalettePosition.centerScreen(yOffset: -100),
);

// At a specific screen coordinate
Palettes.tooltip.show(
  position: PalettePosition.at(Offset(200, 300)),
);

// Relative to another palette
Palettes.submenu.showRelativeTo(
  Palettes.menu,
  theirAnchor: Anchor.topRight,
  myAnchor: Anchor.topLeft,
  offset: Offset(4, 0),
);

// At a specific position with anchor
Palettes.tooltip.showAtPosition(
  screenPosition,
  anchor: Anchor.bottomCenter, // Tooltip appears above the point
);

Anchor Points

The 9-point anchor system controls which corner/edge of the palette aligns to the target:

topLeft      topCenter      topRight
centerLeft   center         centerRight
bottomLeft   bottomCenter   bottomRight

Events

Defining Events

class CommandSelected extends PaletteEvent {
  static const id = 'command-menu.command_selected';

  @override
  String get eventId => id;

  final String commandId;
  const CommandSelected(this.commandId);

  @override
  Map<String, dynamic> toMap() => {'commandId': commandId};

  static CommandSelected fromMap(Map<String, dynamic> m) =>
      CommandSelected(m['commandId'] as String);
}

Event IDs are auto-generated as ${paletteId}.${snake_case(className)}.

Emitting Events (from palette widget)

Palette.of(context).emit(CommandSelected('paste'));

Listening for Events (in host app)

Palettes.commandMenu.onEvent<CommandSelected>((event) {
  print('Selected: ${event.commandId}');
});

Sharing Events Across Palettes

Set an explicit eventNamespace so event IDs remain stable across palettes:

PaletteAnnotation(
  id: 'editor',
  widget: EditorPalette,
  eventNamespace: 'notion',
  events: [Event(FilterChanged)],
),
PaletteAnnotation(
  id: 'slash-menu',
  widget: SlashMenuPalette,
  eventNamespace: 'notion',
  events: [Event(FilterChanged)],  // → notion.filter_changed (shared)
),

Controller API

The generated Palettes class provides typed controllers for each palette.

Visibility

await Palettes.menu.show();
await Palettes.menu.show(
  position: PalettePosition.nearCursor(),
  focus: true,
  delay: Duration(milliseconds: 100),
  autoHideAfter: Duration(seconds: 5),
  animate: true,
);
await Palettes.menu.hide(animate: true);
await Palettes.menu.toggle();

State

Palettes.menu.isVisible;          // bool — current visibility
Palettes.menu.visibilityStream;   // Stream<bool>
Palettes.menu.isWarm;             // bool — window created but maybe hidden
Palettes.menu.isFrozen;           // bool — interaction disabled
Palettes.menu.isSnapped;          // bool — snapped to another palette

Positioning

// Move to absolute position
await Palettes.menu.move(to: Offset(100, 200), animate: true);

// Move by relative offset
await Palettes.menu.move(by: Offset(50, 0));

// Show relative to another palette
await Palettes.submenu.showRelativeTo(
  Palettes.menu,
  theirAnchor: Anchor.bottomLeft,
  myAnchor: Anchor.topLeft,
);

// Show at specific screen position
await Palettes.tooltip.showAtPosition(
  screenPoint,
  anchor: Anchor.bottomCenter,
);

Sizing

await Palettes.editor.resize(width: 600, height: 400);
await Palettes.editor.resize(to: Size(600, 400), animate: true);

Transforms

await Palettes.card.scale(1.5, anchor: Alignment.center, animate: true);
await Palettes.card.rotate(0.1);  // radians
await Palettes.card.flip(axis: Axis.horizontal);
await Palettes.card.resetTransform(animate: true);

Effects

// Shake for error feedback
await Palettes.form.shake(
  direction: ShakeDirection.horizontal,
  intensity: 10,
  count: 3,
);

// Pulse for attention
await Palettes.notification.pulse(maxScale: 1.1, count: 2);

// Bounce
await Palettes.badge.bounce(height: 20, count: 2);

// Fade
await Palettes.overlay.fade(0.5, duration: Duration(milliseconds: 200));

Z-Order

await Palettes.menu.bringToFront();
await Palettes.menu.sendToBack();
await Palettes.menu.moveAbove('other-palette-id');
await Palettes.menu.moveBelow('other-palette-id');
await Palettes.menu.pin(level: PinLevel.aboveAll);
await Palettes.menu.unpin();

Snap

Attach palettes together so they move as one:

// Attach keyboard below editor
await Palettes.keyboard.attachBelow(Palettes.editor, gap: 4);

// Or use the full API
await Palettes.keyboard.snapTo(
  Palettes.editor,
  myEdge: SnapEdge.top,
  targetEdge: SnapEdge.bottom,
  alignment: SnapAlignment.center,
  gap: 4,
  mode: SnapMode.bidirectional, // Drag either, both move
);

// Other convenience methods
await Palettes.toolbar.attachAbove(Palettes.editor);
await Palettes.sidebar.attachLeft(Palettes.editor);
await Palettes.panel.attachRight(Palettes.editor);

// Detach
await Palettes.keyboard.detach();

// Auto-snap: palettes snap when dragged near each other
await Palettes.keyboard.enableAutoSnap(AutoSnapConfig(
  proximityThreshold: 50,
));

// Listen for snap events
Palettes.keyboard.onSnapEvent((event) {
  if (event is SnapDragEnded && event.snapDistance < 50) {
    Palettes.keyboard.reSnap(); // Snap back
  }
});

Focus

await Palettes.editor.focus();
await Palettes.editor.unfocus();

Appearance

await Palettes.panel.setDraggable(true);
Palettes.panel.setBlur(enabled: true, material: 'hudWindow');

Warm-up

Pre-create windows for instant show:

// Warm up immediately
await Palettes.menu.warmUp();

// Schedule during idle time
Palettes.menu.scheduleWarmUp(priority: Priority.idle);

// Warm up all palettes
PaletteController.scheduleWarmUpAll(Palettes.all);

// Destroy window to free resources
await Palettes.menu.coolDown();

Batch Operations

// Hide all palettes
await Palettes.hideAll();
await Palettes.hideAll(except: {'spotlight'});

// Soft hide (remember state) and restore
await Palettes.softHide();
await Palettes.restore();

// Query
Palettes.isAnyVisible;   // bool
Palettes.visibleIds;     // List<String>

// Lookup
Palettes.byId('menu');   // PaletteController?

// Focus
await Palettes.focusMainWindow();

Palette Widget API

Inside palette widgets, use the Palette static class:

class MyMenu extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    final palette = Palette.of(context);

    return PaletteScaffold(
      backgroundColor: Colors.white,
      child: Column(
        children: [
          // Emit typed event
          ListTile(
            onTap: () => palette.emit(ItemSelected('foo')),
          ),
          // Hide self
          TextButton(
            onPressed: () => palette.hide(),
            child: Text('Close'),
          ),
        ],
      ),
    );
  }
}

Messaging

// Palette → Host
Palette.send('item-selected', {'id': item.id});

// Host → Palette
Palette.on('filter-update', (data) {
  setState(() => _filter = data['query']);
});

// Return result (for showAndWait callers)
Palette.returnResult({'selected': item.id});
Palette.cancel();

Cross-Palette Queries

// Check if another palette is visible
if (Palette.isVisibleById('slash-menu')) {
  // ...
}

// Subscribe to visibility changes
Palette.onVisibilityChanged('slash-menu', (visible) {
  setState(() => _slashMenuOpen = visible);
});

SizeReporter

PaletteScaffold automatically sizes the native window to fit content. When resizable: false (default), the window resizes synchronously via FFI during layout — zero flicker.

When resizable: true, the window is user-resizable and PaletteScaffold expands to fill the window.

Glass Effects

Native macOS blur effects (NSVisualEffectView) with custom path masking:

final glass = GlassEffectService();

// Enable glass effect
glass.enable(windowId, material: GlassMaterial.hudWindow);

// Update mask shape
glass.updateRRect(windowId, rrect, windowHeight: size.height);

// Or use arbitrary paths
glass.updatePath(windowId, path, windowHeight: size.height);

// Animate between shapes (native 60-120Hz interpolation)
glass.animateRRect(windowId, fromRRect, toRRect,
  windowHeight: size.height,
  duration: Duration(milliseconds: 200),
);

// Disable
glass.disable(windowId);

Glass Materials

Material	Description
GlassMaterial.hudWindow	HUD-style dark translucent
GlassMaterial.sidebar	Sidebar blur
GlassMaterial.popover	Popover blur
GlassMaterial.menu	Menu blur
GlassMaterial.sheet	Sheet blur

Input Management

Keyboard

Keys are captured per-palette when shown. Configure via PaletteKeyboard:

// From annotation
PaletteAnnotation(
  id: 'editor',
  widget: EditorPalette,
  focus: TakesFocus.yes,  // Takes keyboard focus
)

// Listen for key events in controller
Palettes.editor.onKeyDown((key, modifiers) {
  if (key == LogicalKeyboardKey.enter) {
    // Handle enter
  }
});

Click-Outside Behavior

// Per-show override
Palettes.menu.show(
  clickOutside: ClickOutsideBehavior.dismiss,
);

Behavior	Description
dismiss	Hide the palette
passthrough	Let the click through to the app
block	Block the click
unfocus	Just lose focus

Palette Groups

Palettes in the same group don't trigger click-outside for each other:

Palettes.menu.show(group: PaletteGroup.menu);
Palettes.submenu.show(group: PaletteGroup.menu);
// Clicking submenu won't hide menu

Platform Support

Platform	Status
macOS	Full support (NSPanel)
Windows	Planned
Linux	Not yet supported

Advanced Usage

For direct access to service clients, native bridge, FFI, and testing utilities:

import 'package:floating_palette/floating_palette_advanced.dart';

// Access bridge directly
final bridge = PaletteHost.instance.bridge;

// Use service clients
final window = WindowClient(bridge);
await window.create('my-window');

// Check capabilities
if (PaletteHost.instance.capabilities.blur) {
  // Platform supports blur
}

See Advanced Guide for service clients, testing, FFI, custom services, and more.

Example

The example/ directory includes a complete demo with:

• Notion-style editor with slash menu and style toolbar
• Spotlight-style search with glass effects
• Custom shape glass palette
• AI chat bubble (resizable, snappable)
• Analog clock (transparent, keep-alive)
• Virtual keyboard (snap-to-palette)

Notion Editor	Liquid Glass

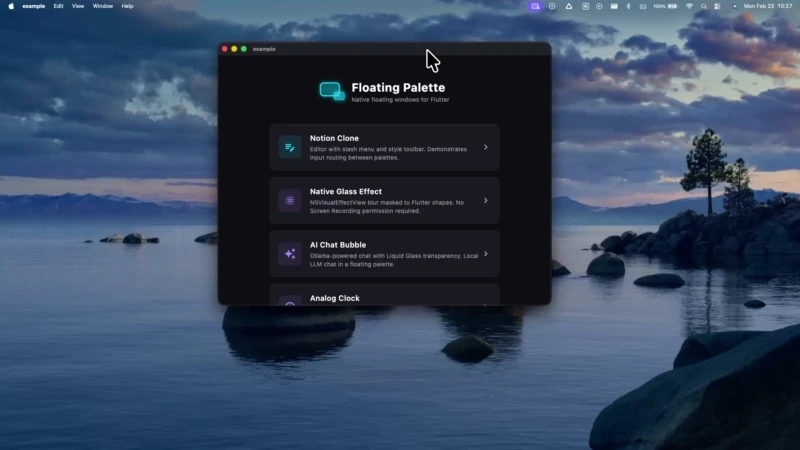

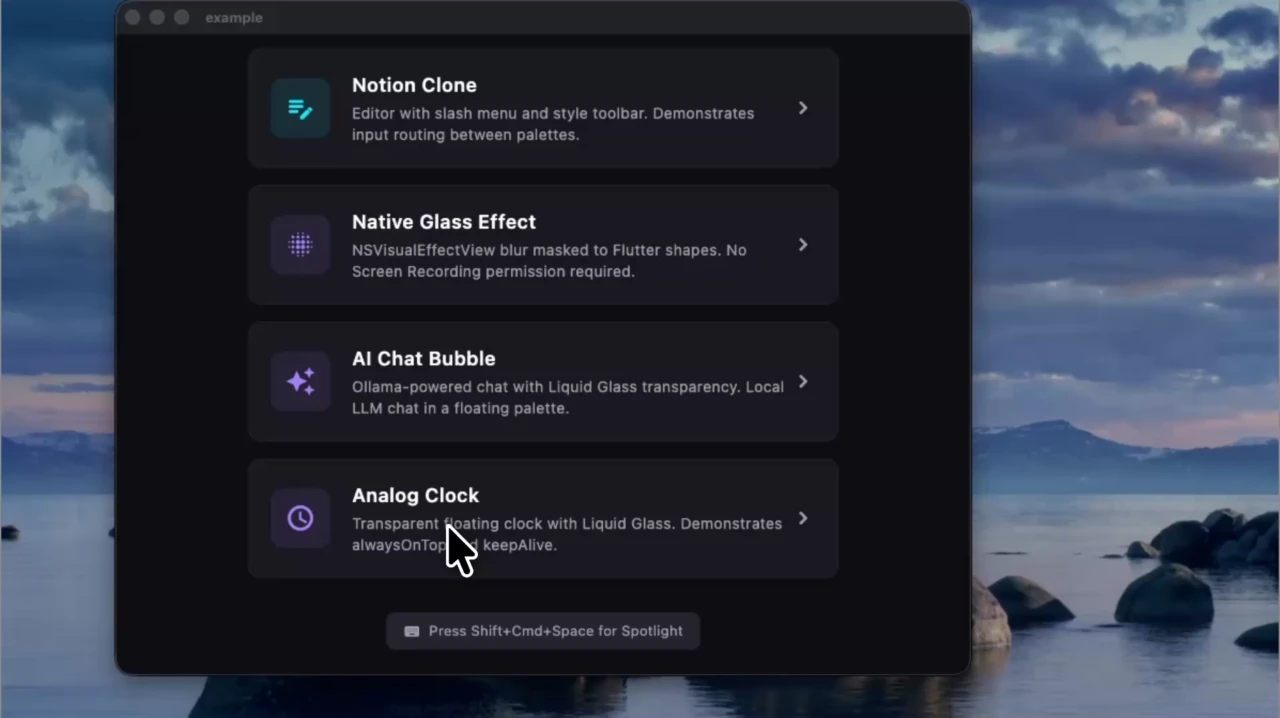

Chat Bubble	Clock

cd example
dart run build_runner build
flutter run -d macos

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                          DART                                   │
├─────────────────────────────────────────────────────────────────┤
│  Palettes (generated)    — Type-safe palette access             │
│  PaletteController       — Show/hide/events/transforms/snap     │
│  PaletteHost             — Central dependency injection         │
│  Service Clients         — Typed native commands                │
│  NativeBridge            — Single method channel                │
│  SyncNativeBridge (FFI)  — Zero-latency operations              │
└────────────────────────────┬────────────────────────────────────┘
                             │ MethodChannel + FFI
┌────────────────────────────▼────────────────────────────────────┐
│                         NATIVE (Swift)                          │
├─────────────────────────────────────────────────────────────────┤
│  Services: Window, Frame, Visibility, Transform, Animation,    │
│           Input, Focus, ZOrder, Appearance, Screen, Message,   │
│           Snap, GlassEffect                                    │
│  WindowStore             — Manages palette NSPanels             │
│  Flutter Engine          — Each palette runs its own engine     │
└─────────────────────────────────────────────────────────────────┘
