dynamo_state_flow 1.0.0

A lightweight, customizable, and interactive state flow / workflow stepper widget for Flutter applications.

dynamo_state_flow

Dynamo State Flow is a lightweight, highly customizable Flutter widget for visualizing multi-step processes, workflows, or progress trackers. It automatically handles step labeling, responsive visibility for mobile/desktop, and state transitions (e.g., order tracking, approval flows, onboarding, project pipelines) with a modern Material Design look.

Optimized for desktop, tablets, and small-screen apps; android, iOS, and web.

🌟 Features

• Horizontal/Vertical stepper with dynamic step count
• Customizable visible step view.
• Optional step labels (show/hide toggle)
• Fully responsive (adapts to screen size)
• Custom label mapping via callback
• Clean, minimal UI with smooth animations

📦 Installation

Add the dependency to your pubspec.yaml:

dependencies:
  dynamo_state_flow: ^1.0.0

Or run:

flutter pub add dynamo_state_flow

🚀 Usage

Import the library

import 'package:dynamo_state_flow/dynamo_state_flow.dart';

    DynamoStateFlow(
      allSteps: allWorkflowSteps,
      isHorizontal: true,
      index: selectedStep,
      visibleCount: DynamoCommons.isMobile(context) ? 4 : 6,
      showLabelMode: showStateLabel,
      findActionStepBySystemStepNo: (int index) {
        switch (index) {
          case 1:
            return "New";
          case 2:
            return "Documents";
          case 3:
            return "Approval";
        }
      },
    ),

Implementation Tips

ReadOnly TextFields: When using a TextField as a trigger, set readOnly: true.
This prevents the system keyboard from overlapping your beautiful calendar.

Event Handling: In scheduler mode, the onShowDetailsPressed returns a list of events.
You can use this to show a detail sheet or a custom popup with event description details.

🧪 Example

A complete working example is available in /example, showcasing:

• Datepicker
• Timepicker
• Date & Time Picker
• Scheduler

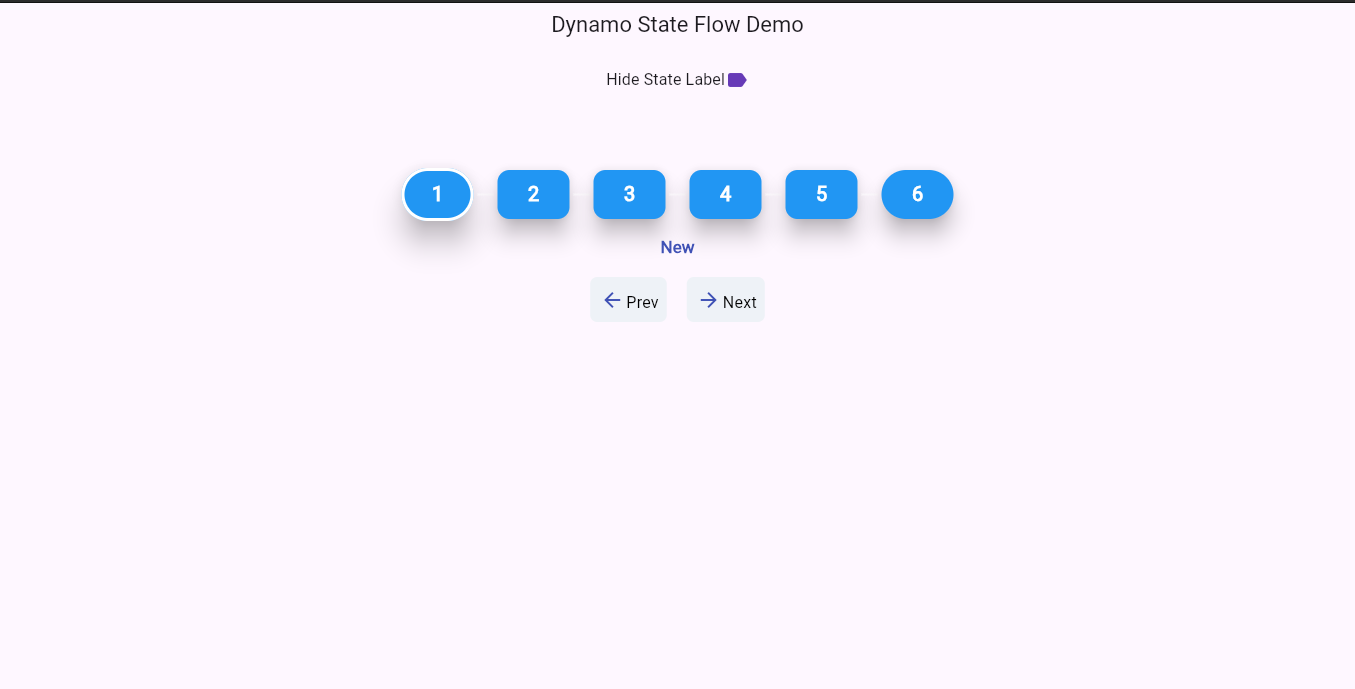

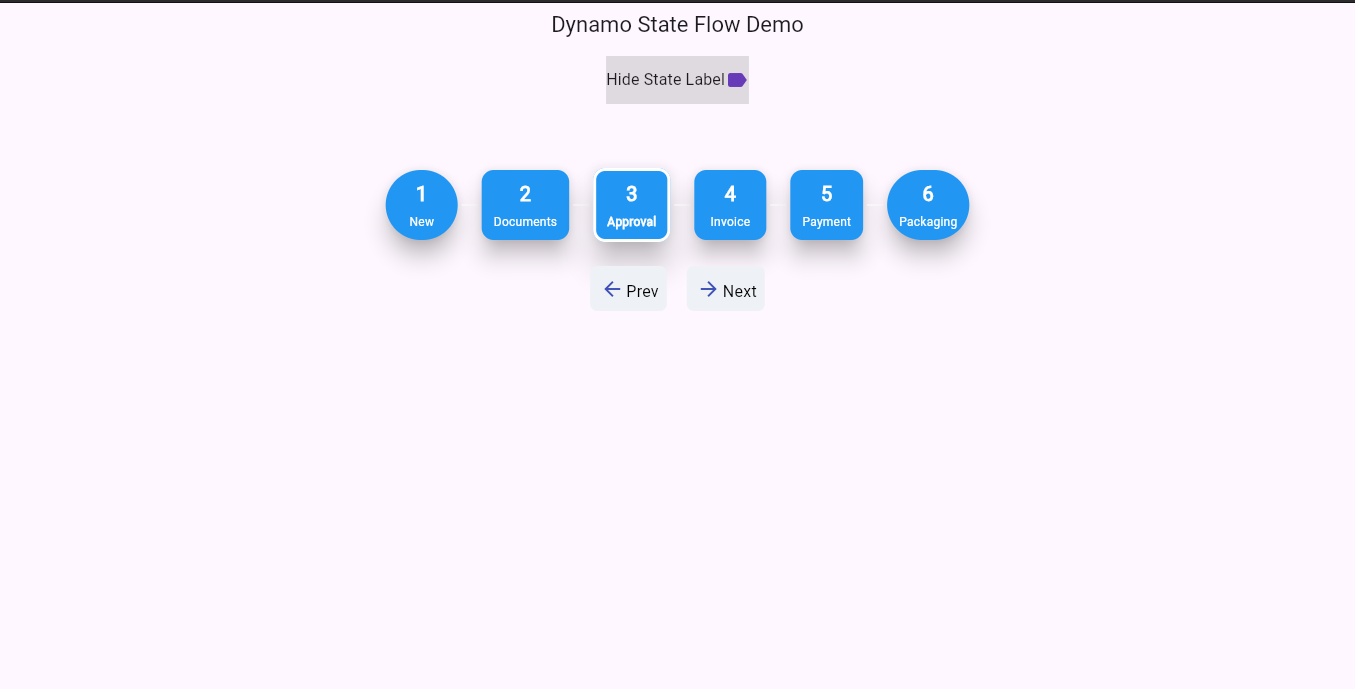

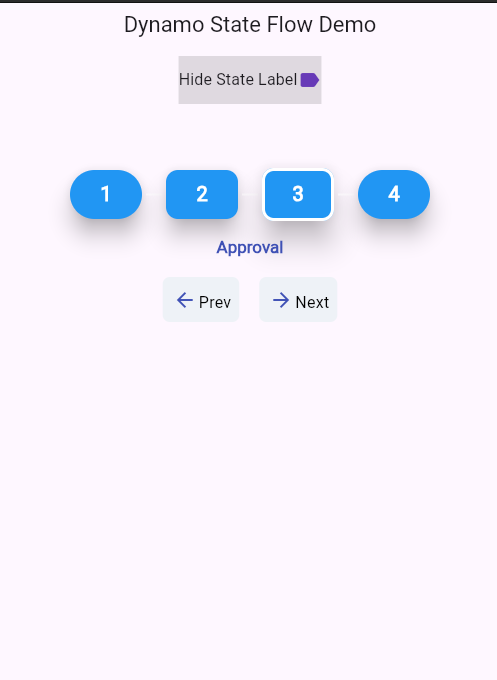

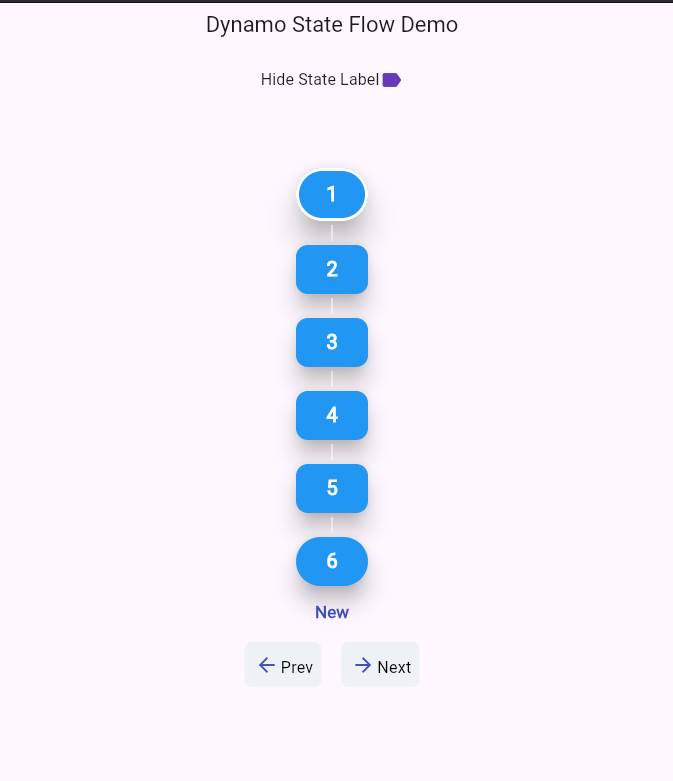

🎥 Demo

📄 License

This project is licensed under the Apache 2.0 License - see the LICENSE file for details.

🤝 Contributing

Contributions, issues, and feature requests are welcome! Feel free to check the issues page.
