arcore_flutter_plus 1.0.2

Updated Flutter plugin for ARCore SDK, Android platform to build new augmented reality experiences

arcore_flutter_plus

Introducing arcore flutter plus. This package allows you to experience Augmented Reality (AR) on Android devices using Google ARCore.

---

Key Enhancements (What's New?)

In addition to all the original features, this version includes:

• Fixed Model Loading: Give support for .glb and .sfb 3d models.
• Custom Shapes: Added support for new shapes like.
• Improved Documentation: Clearer examples for distance measurement and interactive model placement.

---

🙏 Credits & Origin

This package is a upgraded version of the original arcore_flutter_plugin created by gdifrancesco. Since the original package has been inactive for several years, arcore_flutter_plus aims to keep the plugin alive by providing:

• Compatibility with modern Flutter 3.x versions.
• Support for updated Android SDKs.
• New custom features and bug fixes.

---

3D Model Placement

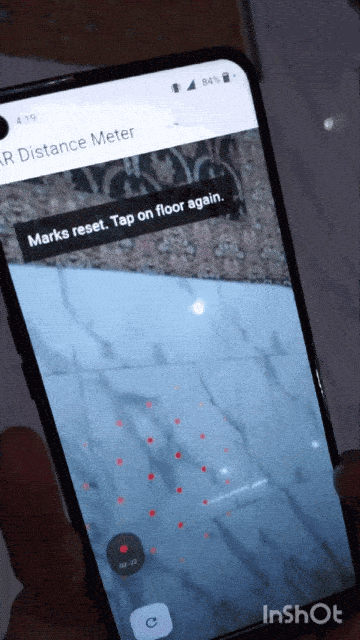

Distance Measurement

🚀 Getting Started

📱 Platform Support

This package is Android-only because it relies on Google's ARCore SDK. (If you are looking for iOS AR support, consider using arkit_plugin)

1. Requirements

• Android API Level: 24 (Android 7.0) or higher.

2. Installation

Add this to your pubspec.yaml:

dependencies:
  arcore_flutter_plus: ^1.0.0

3. Add Permissions

Ensure your AndroidManifest.xml includes Camera permissions:

<uses-permission android:name="android.permission.CAMERA" />
<uses-feature android:name="android.hardware.camera.ar" />

4. Adding assets and models

Add your .glb models to android/app/src/main/assets/.

📖 Usage Example: Placing a Model

ArCoreReferenceNode node = ArCoreReferenceNode(
  name: "Tom",
  object3DFileName: "tom.glb",
  position: vector.Vector3(0, 0, -1.0),
);
arCoreController.addArCoreNode(node);

📱 Example Project

You can find a complete, ready-to-run example project showcasing all features (including distance measurement, placing objects etc.) in the official examples repository:
🔗 arcore_flutter_examples

The simplest code example:

void main() => runApp(
  const MaterialApp(
    debugShowCheckedModeBanner: false,
    //home: AREmojiWorld(), ////-- uncomment to run this example
     home: ARDistanceMeasurer(),
  ),
);

////--Example 1 to calculate distance b/w 2 marks on floor

class ARDistanceMeasurer extends StatefulWidget {
  const ARDistanceMeasurer({super.key});

  @override
  State<ARDistanceMeasurer> createState() => _ARDistanceMeasurerState();
}

class _ARDistanceMeasurerState extends State<ARDistanceMeasurer> {
  ArCoreController? arCoreController;

  // To store 2 points
  ArCoreNode? startNode;
  ArCoreNode? endNode;
  String distanceText = "Tap on floor to place marks";

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('AR Distance Meter')),
      body: Stack(
        children: [
          ArCoreView(
            onArCoreViewCreated: _onArCoreViewCreated,
            enableTapRecognizer: true,
            enablePlaneRenderer: true, // this will show dots
            planeColor: Colors.red,
          ),

          // Distance display karne ke liye UI
          Positioned(
            top: 50,
            left: 20,
            child: Container(
              padding: const EdgeInsets.all(12),
              color: Colors.black54,
              child: Text(
                distanceText,
                style: const TextStyle(color: Colors.white, fontSize: 18),
              ),
            ),
          ),
          Positioned(
            bottom: 30,
            left: 20,
            child: FloatingActionButton(
              onPressed: _resetMarks,
              child: const Icon(Icons.refresh),
            ),
          ),
        ],
      ),
    );
  }

  void _onArCoreViewCreated(ArCoreController controller) {
    arCoreController = controller;
    // Plane detection configuration
    arCoreController?.onPlaneTap = _handleOnPlaneTap;
  }

  void _handleOnPlaneTap(List<ArCoreHitTestResult> hits) {
    if (hits.isEmpty) return;
    final hit = hits.first;

    if (startNode == null) {
      // 1st mark
      startNode = _createMark(hit.pose.translation, Colors.red);
      arCoreController?.addArCoreNode(startNode!);
      setState(() {
        distanceText = "First mark placed. Tap for second mark.";
      });
    } else if (endNode == null) {
      // 2nd mark
      endNode = _createMark(hit.pose.translation, Colors.blue);
      arCoreController?.addArCoreNode(endNode!);

      // Distance calculate
      _calculateDistance();
    }
  }

  ArCoreNode _createMark(vector.Vector3 position, Color color) {
    final material = ArCoreMaterial(color: color, metallic: 1.0);
    final sphere = ArCoreSphere(materials: [material], radius: 0.03);
    return ArCoreNode(shape: sphere, position: position);
  }

  void _calculateDistance() {
    if (startNode == null || endNode == null) return;

    // .value lagana zaroori hai kyunki position ek ValueNotifier hai
    final startPos = startNode!.position!.value;
    final endPos = endNode!.position!.value;

    // Distance Formula implementation
    double dx = endPos.x - startPos.x;
    double dy = endPos.y - startPos.y;
    double dz = endPos.z - startPos.z;

    // math.sqrt use  as prefix imported hai
    double distance = math.sqrt(dx * dx + dy * dy + dz * dz);

    setState(() {
      distanceText = "Distance: ${(distance * 100).toStringAsFixed(2)} cm";
    });
  }

  void _resetMarks() {
    if (startNode != null)
      arCoreController?.removeNode(nodeName: startNode!.name);
    if (endNode != null) arCoreController?.removeNode(nodeName: endNode!.name);
    startNode = null;
    endNode = null;
    setState(() {
      distanceText = "Marks reset. Tap on floor again.";
    });
  }

  @override
  void dispose() {
    arCoreController?.dispose();
    super.dispose();
  }
}

Documentation

Classes provided by the plugin

There are a total of 13 classes provided by this plugin.

• ArCoreView
• ArCoreController
• ArCoreFaceView
• ArCoreFaceController
• ArCoreSphere
• ArCoreCylinder
• ArCoreCube
• ArCoreNode
• ArCoreMaterial
• ArCoreHitTestResult
• ArCoreRotatingNode
• ArCorePlane
• ArCoreReferenceNode

---

ArCoreView

This class returns the view type. There are two types of views in it.

AUGMENTEDFACE STANDARDVIEW

There are 4 properties in it:

• onArCoreViewCreated
• enableTapRecognizer
• enableUpdateListener
• type

---

onArCoreViewCreated

This property takes a ArCoreController.

---

enableTapRecognizer

Initially, set to false. It is used as an argument by the MethodChannel.

---

enableUpdateListener

Initially, set to false. It is used as an argument by the MethodChannel.

---

type

It is a view type, it is either AUGMENTEDFACE, STANDARDVIEW*. It is set to STANDARDVIEW by default.

---

ArCoreController

This controller is used to add an ArNode using the addArCoreNode function, add an ArCoreNode with an anchor using the addArCoreNodeWithAnchor function, and also remove a node using the removeNode function.

---

ArCoreFaceView

It is a stateful widget that returns a ArCoreAndroidView. It has two properties enableAugmentedFaces, onArCoreViewCreated.

Initially, enableAugmentedFaces is set to false. onArCoreViewCreated takes a function with ArCoreController argument.

---

ArCoreFaceController

It used dispose and loadMesh method to control the FaceView.

---

ArCoreSphere

It is ArCoreShape, takes a radius & ArCoreMaterial.

---

ArCoreCylinder

It is an ArCoreShape, takes a radius, height, & ArCoreMaterial.

---

ArCoreCube

It is ArCoreShape, takes a size i.e. Vector3 & ArCoreMaterial.

---

ArCoreNode

This widget is used to provide the position, shape, scale, rotation, name.

---

ArCoreMaterial

It is used to describe the outlook of the virtual object created by the user.

It has color,textureBytes, metallic, roughness, reflection.

---

ArCoreRotatingNode

It is an ArCoreNode with a degreesPerSecond property which is a double value.

---

ArCorePlane

It takes the x, y coordinate of the plane, ArCorePose & ArCorePlaneType.

There are three types of plane:

• HORIZONTAL_UPWARD_FACING
• HORIZONTAL_DOWNWARD_FACING
• VERTICAL

---

ArCoreReferenceNode

It is ArCoreNode, it has all the properties that the ArCoreNode has also it has objectUrl and object3DFileName.

---

objectUrl

URL of glft object for remote rendering.

---

object3DFileName

Filename of sfb, glb object in android/app/src/main/assets folder.
