s_glow 2.0.0

Customizable glowing effects for widgets with two distinct styles - Glow1 for breathing animations and Glow2 for ripple effects.

s_glow

A Flutter package providing customizable glowing effects for widgets. This package includes two distinct glow widgets: Glow1 for breathing/pulsating animations and Glow2 for ripple/wave effects.

Visual Examples

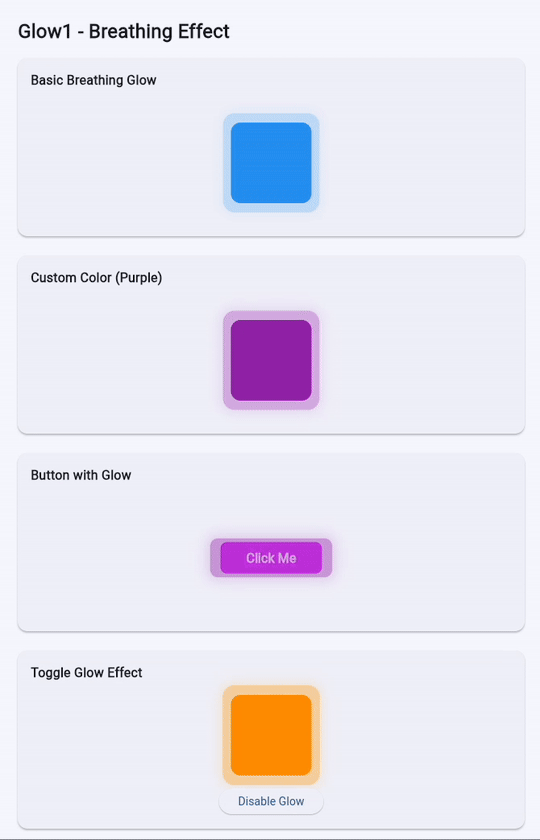

Glow1 - Breathing Effect

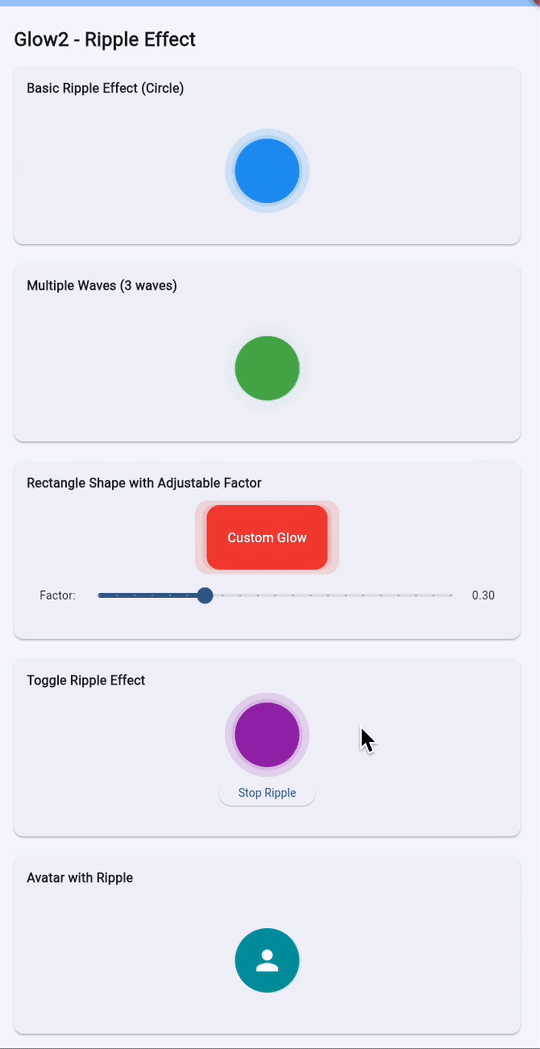

Glow2 - Ripple Effect

Features

• 🌟 Glow1: Breathing glow effect with customizable scale and opacity animations (simple glow)
• 🌊 Glow2: (completely refactored different glow widget for advanced usage): Ripple glow effect with multiple expanding waves
• 🎨 Fully customizable colors, durations, curves, and shapes
• ⚡ Performance optimized with RepaintBoundary and efficient animations
• 🔄 Support for repeating and one-time animations
• 📱 Works with any Flutter widget

Installation

Add this to your package's pubspec.yaml file:

dependencies:
  s_glow: ^2.0.0

Then run:

flutter pub get

Usage

Glow1 - Breathing Effect

The Glow1 widget creates a breathing/pulsating glow effect around your widget:

import 'package:s_glow/s_glow.dart';

Glow1(
  child: Container(
    width: 100,
    height: 100,
    decoration: BoxDecoration(
      color: Colors.blue,
      borderRadius: BorderRadius.circular(12),
    ),
  ),
  isEnabled: true,
  opacity: 0.4,
  color: Colors.blue.shade400,
  animationDuration: Duration(milliseconds: 1500),
  repeatAnimation: true,
  startScaleRadius: 1.08,
  endScaleRadius: 1.1,
)

Glow1 Properties

Property	Type	Default	Description
child	Widget	required	The child widget to apply the glow effect to
isEnabled	bool	true	Whether the glow effect is enabled
opacity	double	0.4	Maximum opacity of the glow (0.0 to 1.0)
color	Color?	Colors.blue.shade400	Color of the glow effect
animationDuration	Duration	1500ms	Duration of one animation cycle
repeatAnimation	bool	true	Whether to repeat the animation continuously
startScaleRadius	double	1.08	Starting scale factor for the glow
endScaleRadius	double	1.1	Ending scale factor for the glow
borderRadius	BorderRadiusGeometry?	BorderRadius.circular(12)	Border radius for the glow shape
alignment	AlignmentGeometry	Alignment.center	Alignment of the glow effect
animationCurve	Curve	Curves.fastEaseInToSlowEaseOut	Animation curve for the effect

Glow2 - Ripple Effect

The Glow2 widget creates an expanding ripple effect with multiple waves:

import 'package:s_glow/s_glow.dart';

Glow2(
  child: Container(
    width: 100,
    height: 100,
    decoration: BoxDecoration(
      color: Colors.green,
      shape: BoxShape.circle,
    ),
  ),
  glowCount: 2,
  glowColor: Colors.white,
  glowShape: BoxShape.circle,
  duration: Duration(milliseconds: 3500),
  animate: true,
  repeat: true,
  glowRadiusFactor: 0.7,
  startInsetFactor: 0.1, // Start glow 10% inside the borders
)

Glow2 Properties

Property	Type	Default	Description
child	Widget	required	The child widget to apply the glow effect to
glowCount	int	2	Number of expanding glow waves
glowColor	Color	Colors.white	Color of the glow effect
glowShape	BoxShape	BoxShape.circle	Shape of the glow (circle or rectangle)
glowBorderRadius	BorderRadius?	null	Border radius (only for rectangle shape)
duration	Duration	3500ms	Duration of one animation cycle
startDelay	Duration?	null	Delay before starting the animation
animate	bool	true	Whether to animate the glow
repeat	bool	true	Whether to repeat the animation continuously
curve	Curve	Curves.fastOutSlowIn	Animation curve for the effect
glowRadiusFactor	double	0.7	For circles: % of radius; For rectangles: % of half-width/half-height
startInsetFactor	double	0.1	How far inside borders the glow starts (0.0=border, 1.0=center)

What's New in v1.1.0

Improved Glow2 Animation

• Smart Start Position: Glow now starts slightly inside the widget borders (controlled by startInsetFactor) for a more polished appearance
• Shape-Aware Expansion:
  • Circle glows expand based on radius percentage
  • Rectangle glows expand proportionally based on width and height
• Simplified API: Removed redundant glowRectFactor - now glowRadiusFactor intelligently adapts to both shapes
• Interactive Examples: Try the live example app with real-time adjustment sliders

Example: Customizing Glow Start Position

Glow2(
  glowShape: BoxShape.circle,
  glowRadiusFactor: 0.3,  // Expand 30% of radius
  startInsetFactor: 0.15, // Start 15% inside border
  child: YourWidget(),
)

Examples

Button with Breathing Glow

Glow1(
  child: ElevatedButton(
    onPressed: () {},
    child: Text('Click Me'),
  ),
  color: Colors.purple,
  opacity: 0.5,
  repeatAnimation: true,
)

Avatar with Ripple Effect

Glow2(
  child: CircleAvatar(
    radius: 40,
    backgroundImage: NetworkImage('https://example.com/avatar.jpg'),
  ),
  glowCount: 3,
  glowColor: Colors.blue.withValues(alpha: 0.5),
  glowShape: BoxShape.circle,
  duration: Duration(seconds: 2),
)

Custom Rectangular Glow

Glow2(
  child: Container(
    width: 150,
    height: 80,
    decoration: BoxDecoration(
      color: Colors.red,
      borderRadius: BorderRadius.circular(16),
    ),
    child: Center(child: Text('Custom Glow')),
  ),
  glowShape: BoxShape.rectangle,
  glowBorderRadius: BorderRadius.circular(16),
  glowColor: Colors.red.withValues(alpha:0.3),
  glowCount: 2,
)

Toggle Glow Effect

class ToggleGlowExample extends StatefulWidget {
  @override
  _ToggleGlowExampleState createState() => _ToggleGlowExampleState();
}

class _ToggleGlowExampleState extends State<ToggleGlowExample> {
  bool _isGlowing = true;

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        Glow1(
          isEnabled: _isGlowing,
          child: Container(
            width: 100,
            height: 100,
            color: Colors.blue,
          ),
        ),
        ElevatedButton(
          onPressed: () => setState(() => _isGlowing = !_isGlowing),
          child: Text(_isGlowing ? 'Disable Glow' : 'Enable Glow'),
        ),
      ],
    );
  }
}

Dependencies

This package relies on:

• soundsliced_tween_animation_builder - For smooth animations
• states_rebuilder_extended - For efficient state management

Performance

Both widgets are optimized for performance:

• Uses RepaintBoundary to isolate repainting
• Efficient animation controllers
• Minimal widget rebuilds
• Customizable animation parameters for performance tuning

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

License

This project is licensed under the MIT License - see the LICENSE file for details.

Author

Christophe Chanteur

Changelog

See CHANGELOG.md for a detailed list of changes.

Repository

https://github.com/SoundSliced/s_glow
