mdns_plugin 1.1.4

mdns_plugin #

Yet another package which discovers network services on the local network. Presently, this package is in development, and should work for iOS targets. Android targets work with one caveat mentioned below.

Please file any issues or feature requests on github, thanks.

Using the plugin #

You use the plugin by calling startDiscovery and stopDiscovery on an instance of MDNSPlugin, which you need to create by passing a delegate instance. The MDNSPlugin class provides two methods and a constructor:

class MDNSPlugin {
    /// Constructor

    /// platformVersion returns the underlying platform version of the
    /// running plugin
    static Future<String> get platformVersion async;

    /// startDiscovery is invoked to start discovery of services on
    /// the local network, for a serviceType, which should be, for
    /// example "_googlecast._tcp" or similar. When the optional
    /// enableUpdating flag is set to true, resolved services
    /// respond to updates to the TXT record for the service
    Future<void> startDiscovery(String serviceType,{ bool enableUpdating = false }) async;

    /// stopDiscovery should be invoked to shutdown the discovery
    /// of services on your local network
    Future<void> stopDiscovery() async;

One limitation is that on Android, the enableUpdating flag is currently ignored. Future work will correct this to bring the platforms in parity. The delegate instance will receive messages from the plugin. Your delegate class should implement the following methods:

abstract class MDNSPluginDelegate {

  /// onDiscoveryStarted is called when discovery on the local
  /// network has started
  void onDiscoveryStarted();

  /// onDiscoveryStopped is called when discovery on the local
  /// network has stopped
  void onDiscoveryStopped();

  /// onServiceFound is called when a service on the local network
  /// has been discovered. Your function implementation should
  /// return true if you want the service to be resolved
  bool onServiceFound(MDNSService service);

  /// onServiceResolved is called when resolution has occurred,
  /// filling in the details (hostname, addresses, etc) of the
  /// service
  void onServiceResolved(MDNSService service);

  /// onServiceUpdated is called when a found service has updated
  /// the TXT record
  void onServiceUpdated(MDNSService service);

  /// onServiceRemoved is called when a found service has been
  /// removed from the local network
  void onServiceRemoved(MDNSService service);

Example #

Here's a basic example which implements a delegate, that can respond to mDNS services being discovered and updated:

import 'dart:async';
import 'package:mdns_plugin/mdns_plugin.dart';

void main() async {
    MDNSPlugin mdns = new MDNSPlugin(Delegate());
    await mdns.startDiscovery("_googlecast._tcp",enableUpdating: true);
    await mdns.stopDiscovery();

Future sleep() {
  return new Future.delayed(const Duration(seconds: 5), () => "5");

class Delegate implements MDNSPluginDelegate {
  void onDiscoveryStarted() {
      print("Discovery started");
  void onDiscoveryStopped() {
      print("Discovery stopped");
  bool onServiceFound(MDNSService service) {
      print("Found: $service");
      // Always returns true which begins service resolution
      return true;
  void onServiceResolved(MDNSService service) {
      print("Resolved: $service");
  void onServiceUpdated(MDNSService service) {
      print("Updated: $service");
  void onServiceRemoved(MDNSService service) {
      print("Removed: $service");

For a fuller example please see the application in the example folder.

Publishing this plugin #

(Some notes for me) In order to publish the plugin, edit the pubspec.yaml and files in the root directory and the example directory to bump the version number $TAG and then run the following commands:

bash% TAG=v`sed -n 's/version\: \(.*\)/\1/p' pubspec.yaml`
bash% echo $TAG && flutter format .
bash% git commit -a -m "Updated version to $TAG"
bash% git push && git tag $TAG && git push --tags
bash% flutter pub pub publish

You should then merge v1 into the master branch.

0.0.1 #

Initial Release

0.0.2 #

Added delegate implementation for iOS and Dart. There is no Android implementation in this version. Remaining items to do:

  • Implement domain argument when calling startDiscovery
  • Implment the addresses property on MDNSService
  • Implement the Android version

0.0.4 #

Now allows domain argument when calling startDiscovery and implements the addresses property on MDNSService. Remaining items to do:

  • Implement the Android version

0.0.5 #

Updated the example code.

0.0.6 #

Formatting changes

0.0.7 #

Started to implement the android code, just enough for the plugin to work correctly, but not yet return any services.

0.0.8 #

Further work on the Android code, but quite a bit to do

0.0.9 #

Further work on the Android code, the remaining issues are:

  • Pass through the serviceType onStartDiscovery
  • Remove the domain to ensure parity between the iOS and Android implementations
  • Extract the addresses from the ServiceInfo
  • Implement some sort up update method on Android for when TXT records are updated?
  • Android: Hot reloading doesn't work since the discoverylistener is still allocated

0.0.10 #

Further work on the Android code, the remaining issues are:

  • Remove the domain to ensure parity between the iOS and Android implementations
  • Implement some sort up update method on Android for when TXT records are updated
  • On Android, Lazy resolve service info instead of all at once (queue)

1.0.0 #

First v1 release includes the iOS and Android, the remaining issue is that when TXT records are updated, the onServiceUpdated callback is not called on the Android platform, since the in-built libraries don't have this functionality available.

1.1.0 #

The plugin no longer resolves found services automatically but will only do so after "true" is returned from the delegate onServiceFound. In addition, the startDiscovery method now has an optional argument which is enableUpdating which when set to true will call the onServiceUpdated delegate method when TXT records are updated on the iOS platform. However, this doesn't yet work on Android.

1.1.1 #

Fixed a problem with the Android manifest for the release version

1.1.3 #

Updated Android build to Gradle to 3.3.0, thanks to Clement Wong and some updates for the tests. See PR

1.1.4 #

Renamed MdnsPlugin.kt to MDNSPlugin.kt to match the pluginClass: MDNSPlugin entry in pubspec, because flutter pub get failed on operating system with case sensitive filenames PR. Thanks to Luku1806.


mdns_plugin_example #

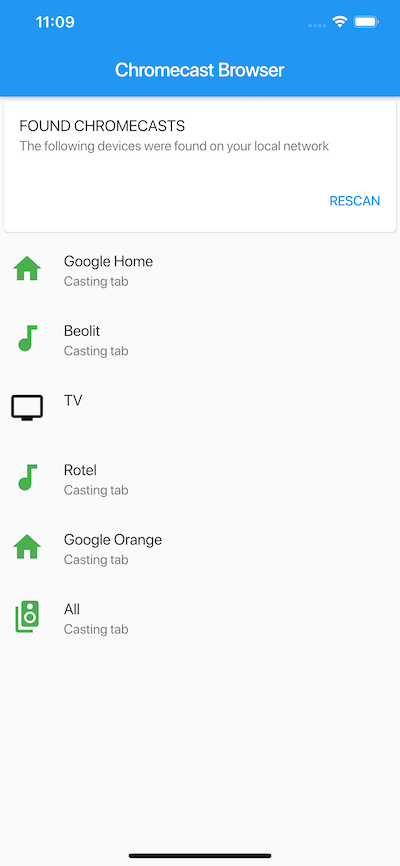

This example application demonstrates how to use the mdns_plugin plugin. It generates a list of services which are presented as a ListView:

See the code in the example/lib folder:

  • The bloc folder contains the business logic of the application;
  • The models folder contains the model for the list of services;
  • The pages folder contains the StatelessWidget which renders the page;
  • The widgets folder contains the widget to render a service as a list item;

The list is rebuilt based on delegate messages from the MDNSPlugin object, which you can see in the bloc/app.dart business logic.

Use this package as a library

1. Depend on it

Add this to your package's pubspec.yaml file:

  mdns_plugin: ^1.1.4

2. Install it

You can install packages from the command line:

with Flutter:

$ flutter pub get

Alternatively, your editor might support flutter pub get. Check the docs for your editor to learn more.

3. Import it

Now in your Dart code, you can use:

import 'package:mdns_plugin/mdns_plugin.dart';
