group_dropdown_button 1.0.3

GroupDropdownButton - A versatile Flutter widget for grouped, searchable, and recursive dropdowns. Perfect for hierarchical selections with a Material Design look.

🧩 GroupDropdownButton

A powerful, customizable Flutter widget for rendering grouped, searchable, recursive dropdowns with support for radio buttons, check indicators, and dynamic overlays.

Ideal for apps that require deeply nested, categorized selections with a sleek Material look.

---

📚 Table of Contents

• 🚀 Features
• 📸 Screenshots
• 🛠️ Installation
• 📖 Usage
• 🎨 Customization Options
• 🧱 GroupedDropdownOption Data Structure
• 📁 Package Folder Structure (for reference)
• 🤝 Contributing
• 📜 License

---

🚀 Features

⬆Table of Contents

• ✅ Grouped dropdown items with support for recursive nesting
• 🔍 Live search & filtering
• 🧩 Custom prefix/suffix widgets
• 🎯 Radio button or check icon for selected item
• 🌈 Fully customizable styling and borders
• 📐 Overlay-based dropdown with smart positioning
• 🔃 ExpansionTile-based group rendering
• ⚠️ Inline error display and required field validation

---

📸 Screenshots

⬆Table of Contents

GroupDropdownButton

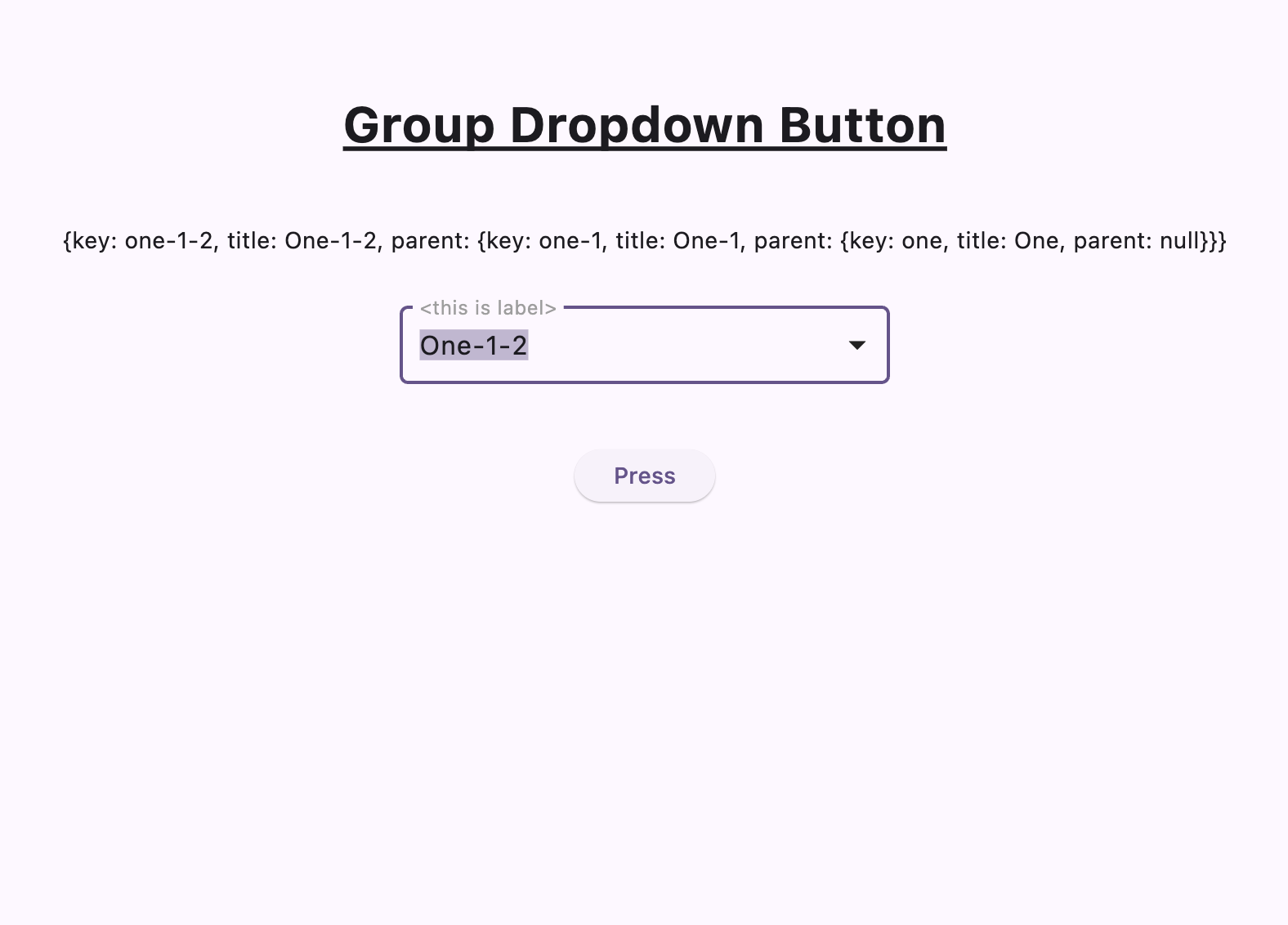

Selected item response from onSelect

showCheckForSelected - takes boolean value and displays check icon on selected item, true to enable & false to disable, default false

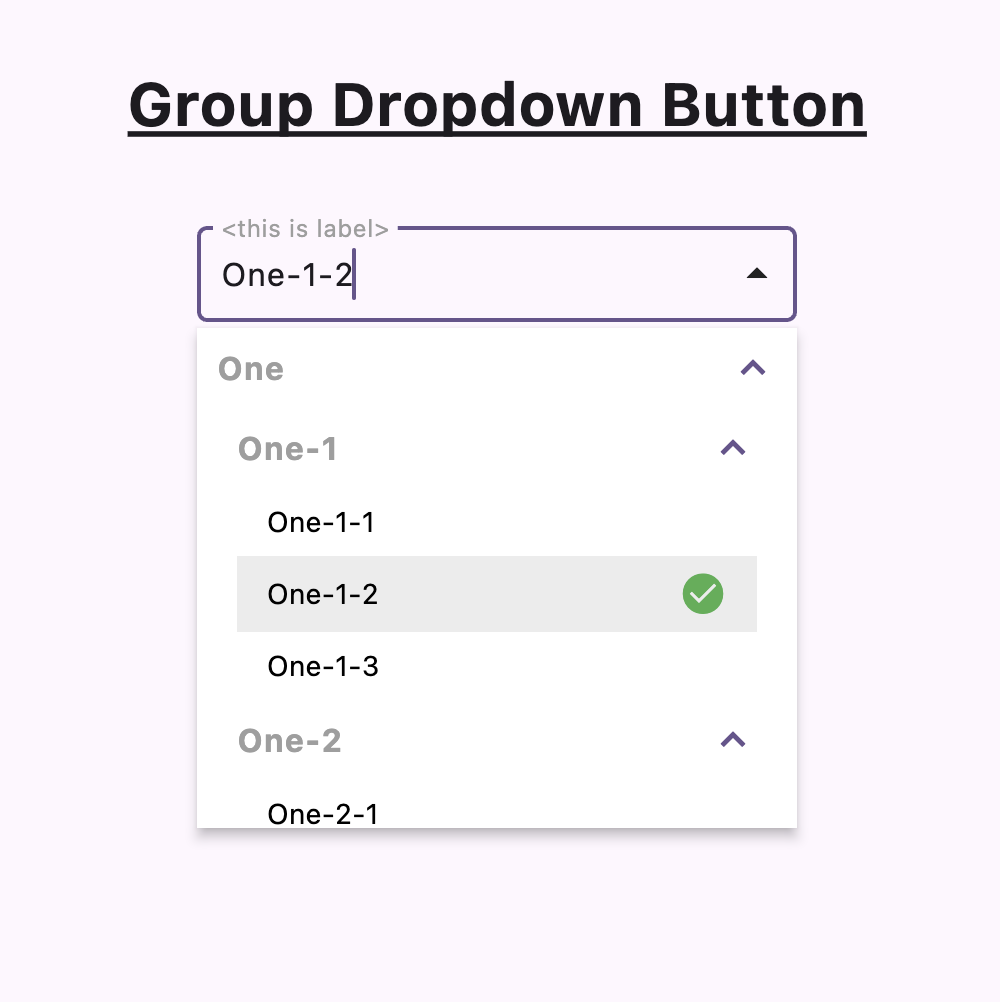

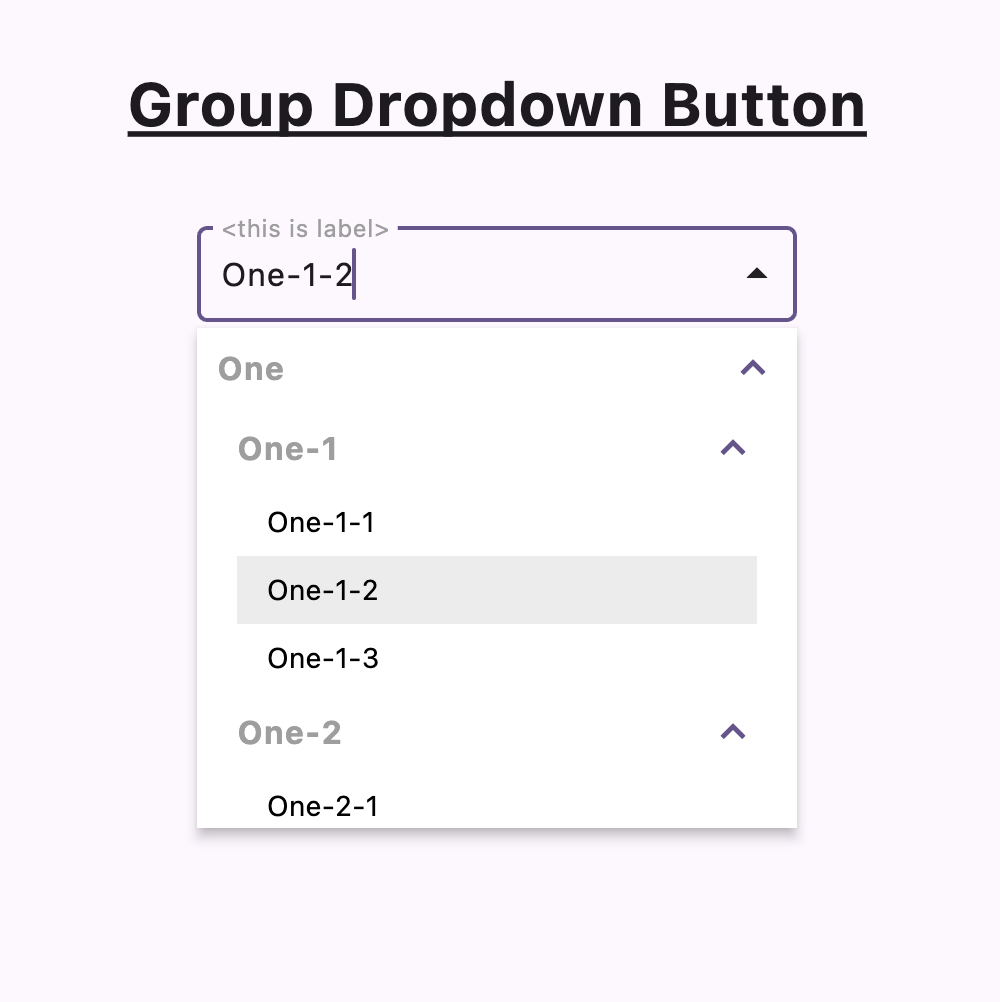

Check Icon enabled	Check Icon disabled

checkWidgetForSelectedItem - takes Widget can replace check icon widget with custom widget, checkWidgetForSelectedItem: Icon(Icons.abc), deafult null

itemPrefix - takes Widget, adds widget as prefix to every item not for group title, default null

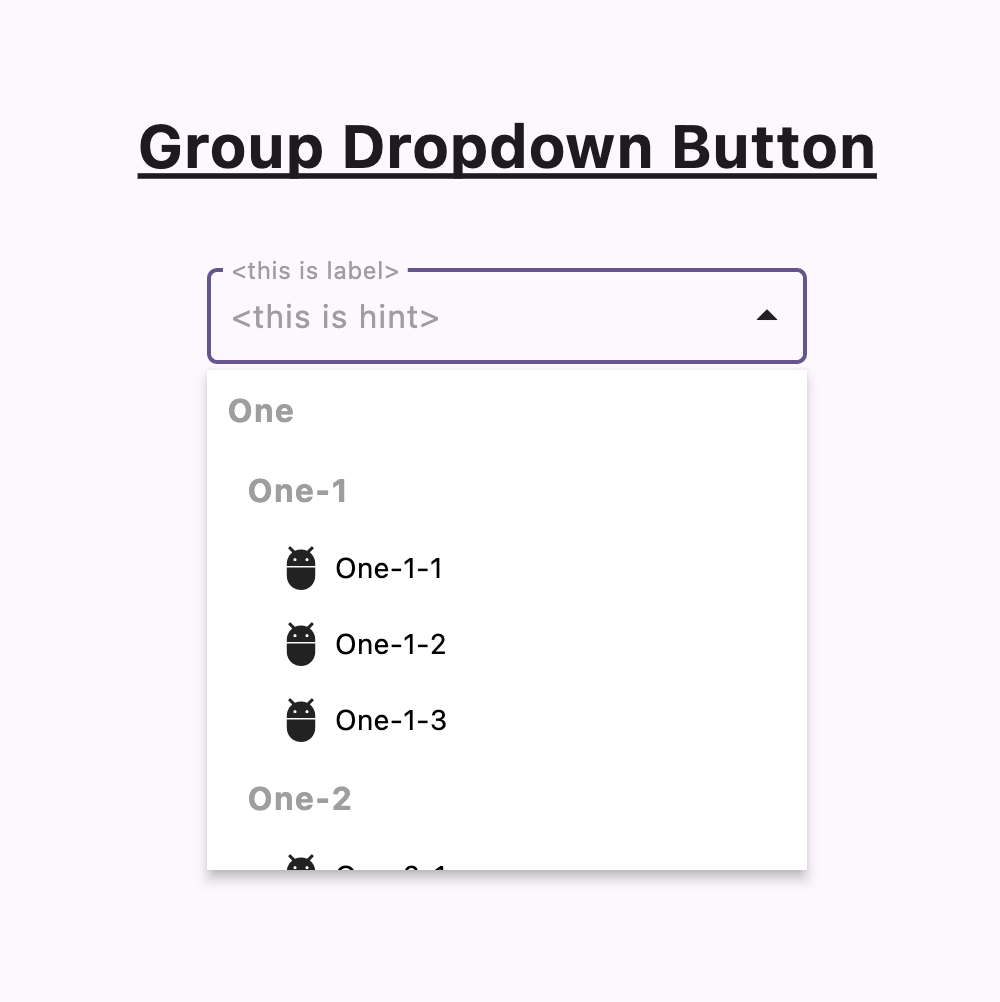

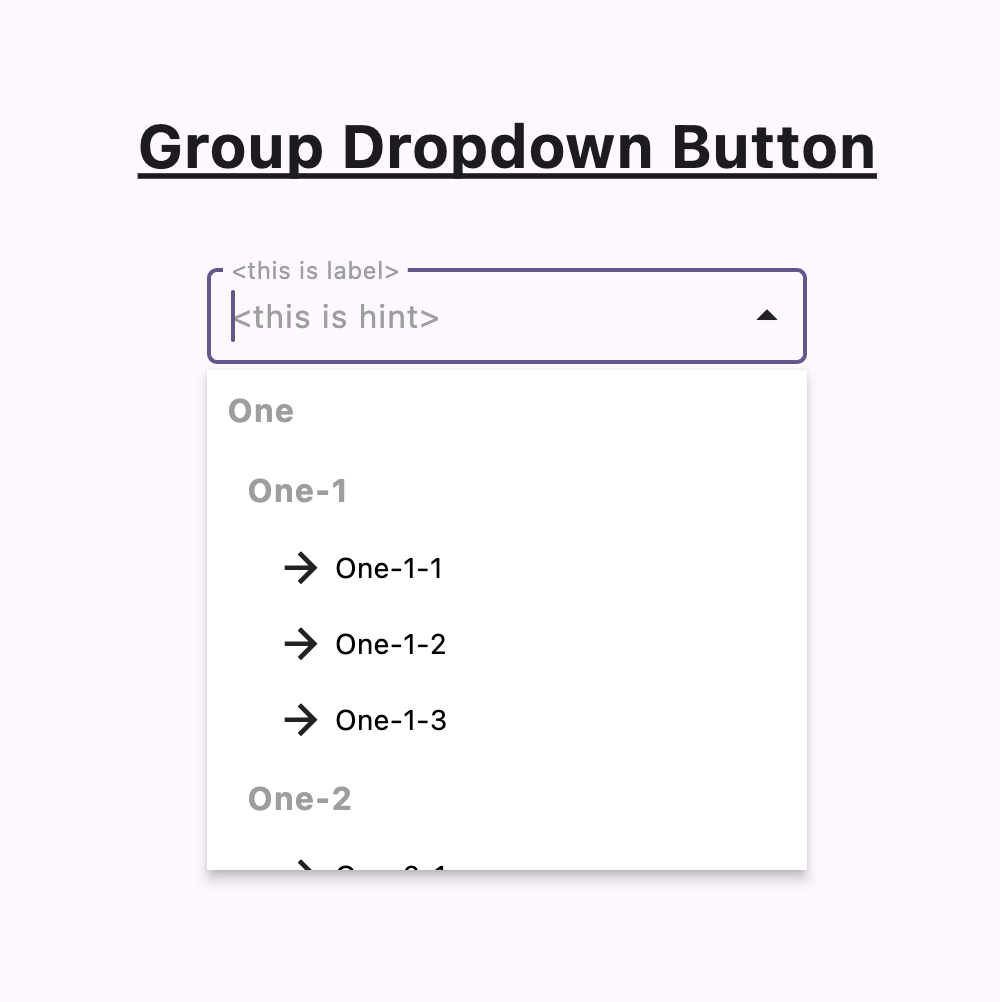

itemPrefix: Icon(Icons.arrow_forward)	itemPrefix: Icon(Icons.adb_sharp)

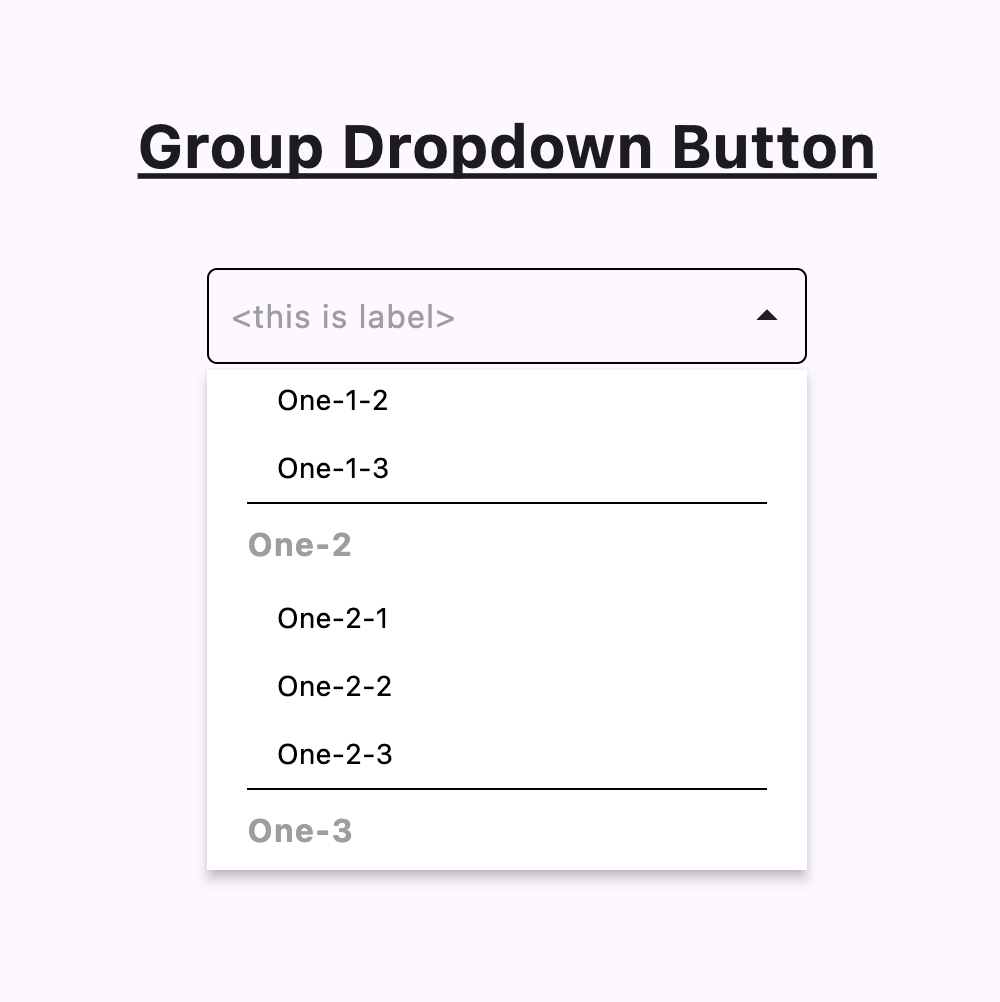

showDividerBtwGroups - takes boolean value and displays divider between groups, true to show & false to hide, default false

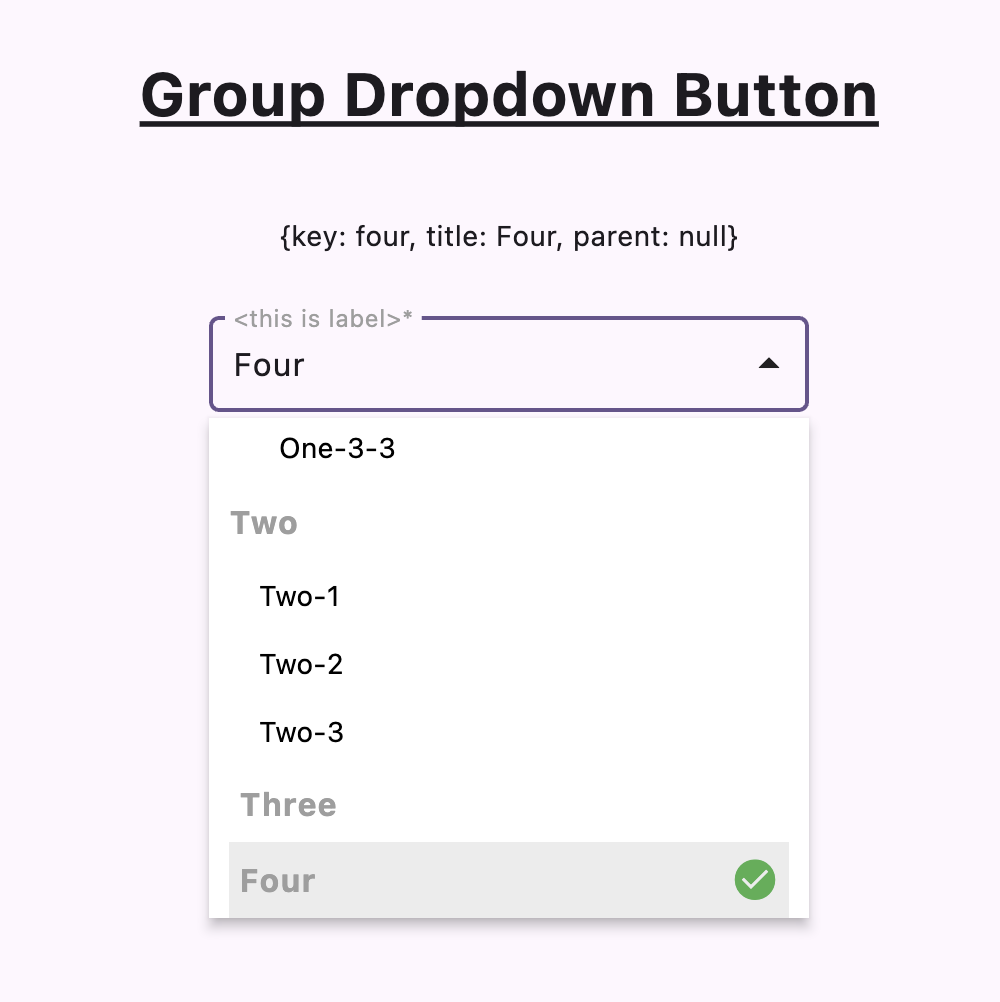

If any options have not items to select that is considered as item not as group

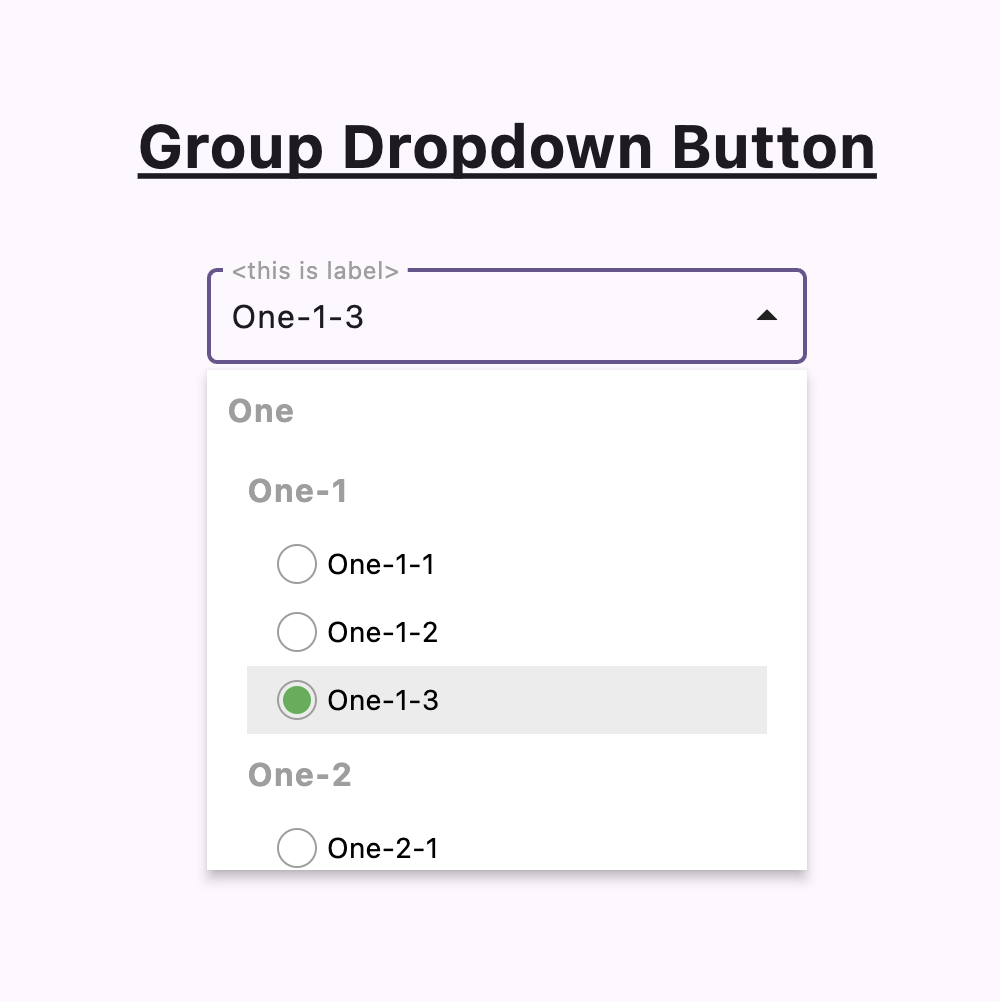

enabledRadioForItems - takes boolean value and displays radio button as prefix to every item not for group title, true to show & false to hide, default false

eachGroupIsExpansion - takes boolean value and renders nested groups with ExpansionTile, true to enable & false to disable, default false

borderType - takes enum TextFieldInputBorder, to show outline border or underline border to the textfield, default TextFieldInputBorder.outLine

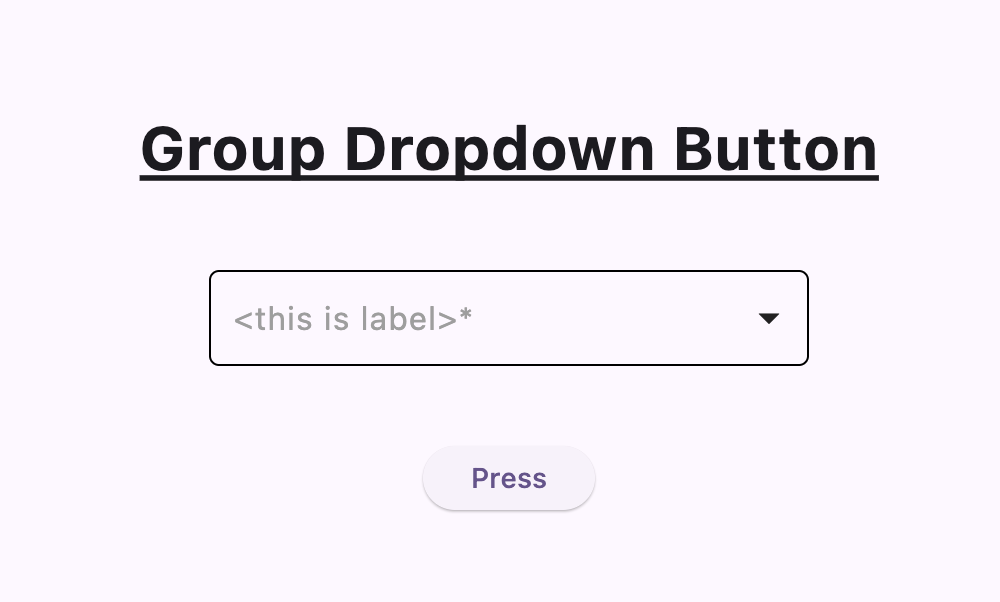

borderType: TextFieldInputBorder.outLine	borderType: TextFieldInputBorder.underLine

isRequired - takes boolean value and manages to enable or disable validator to the textfield, default false

errorText - tabkes string value and overides the default error message to custom error message, default This field is required, works only if isRequired is true

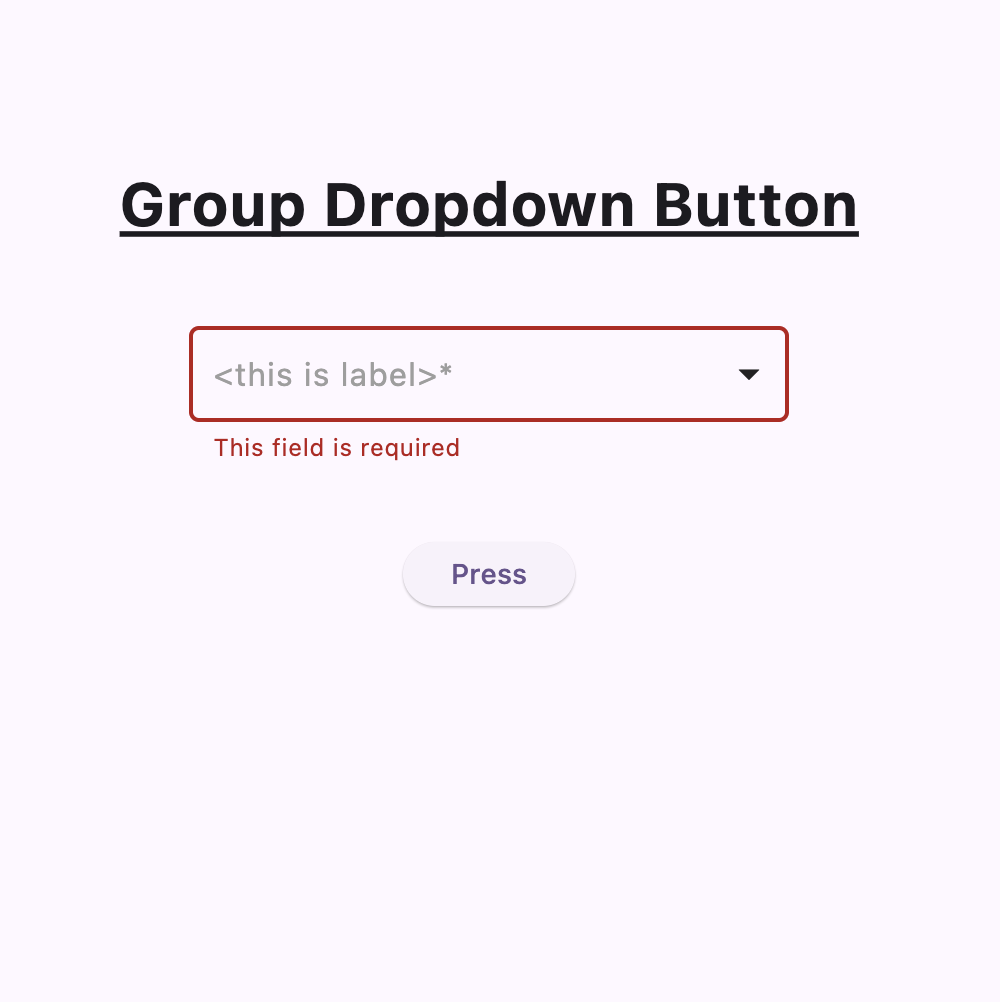

isRequired: true	isRequired: true, errorText: "Oops! Please pick an item."

🛠️ Installation

⬆Table of Contents

1. Add this gem to your package's pubspec.yaml file:

   dependencies:
     group_dropdown_button: ^latest_version # 👈 Replace with the actual version from pub.dev


2. Install it by running:

   flutter pub get


📖 Usage

⬆Table of Contents

1. Import the Package

import 'package:group_dropdown_button/group_dropdown_button.dart';

2. Define Your Data

Structure your items using the GroupedDropdownOption class. Each group can contain subItems.

final List<GroupedDropdownOption> myCategorizedItems = [
  GroupedDropdownOption(
    key: "fruits",
    title: "🍓 Fruits", // Emojis in titles can be fun!
    subItems: [
      GroupedDropdownOption(key: "apple", title: "Apple"),
      GroupedDropdownOption(key: "banana", title: "Banana"),
      GroupedDropdownOption(key: "orange", title: "Orange"),
    ],
  ),
  GroupedDropdownOption(
    key: "vegetables",
    title: "🥦 Vegetables",
    subItems: [
      GroupedDropdownOption(key: "carrot", title: "Carrot"),
      GroupedDropdownOption(key: "broccoli", title: "Broccoli"),
      GroupedDropdownOption(key: "spinach", title: "Spinach"),
    ],
  ),
  // Add more groups as needed.
  // Remember: You need at least two top-level GroupedDropdownOption items.
];

3. Use the GroupDropdownButton Widget

Here's a practical example:

 GroupDropdownButton(
    items: myCategorizedItems,
    onSelect: (GroupedDropdownOption? selectedOption) {
      setState(() {
        _selectedItem = selectedOption;
      });
      if (selectedOption != null) {
        print('Selected: ${selectedOption.title} (Key: ${selectedOption.key})');
        print('Parent: ${selectedOption.parentTitle} (Key: ${selectedOption.parentKey})');
        if (selectedOption.extraInfo != null) {
          print('Extra Info: ${selectedOption.extraInfo}');
        }
      }
    },
    // initialValue: myCategorizedItems.first.subItems?.first, // Example initial value
    hintText: "Select an item...",
    labelText: "Choose a Category",
    buttonWidth: double.infinity,
    isRequired: true,
    errorText: "Oops! Please pick an item.",
    // --- 🎨 Explore further customization! ---
    // itemPrefix: Icon(Icons.arrow_forward_ios, size: 14, color: Colors.blueGrey),
    // eachGroupIsExpansion: true,
    // showDividerBtwGroups: true,
    // enabledRadioForItems: false, // Cannot be true if showCheckForSelected is true
    // showCheckForSelected: true,
    // checkWidgetForSelectedItem: Icon(Icons.task_alt_rounded, color: Colors.green, size: 20),
    // borderRadius: 12.0,
    // borderType: TextFieldInputBorder.outLine,
    // focusedBorderColor: Colors.deepPurpleAccent,
  )

🎨 Customization Options

⬆Table of Contents

The GroupDropdownButton is packed with properties to tailor its look and feel.

Quick Customization Overview

Property	Description
buttonWidth	Width of the dropdown trigger button
isRequired	Enables validation if true
hintText, labelText	Hint/Label display inside the text field
hintStyle, labelStyle, textStyle	Hint/Label/Textfield textstyle can be adjusted
itemPrefix	Adds a widget before every dropdown item
showCheckForSelected	Displays check icon on selected item
enabledRadioForItems	Displays radio button instead of check icon
eachGroupIsExpansion	Renders nested groups with ExpansionTile
borderType	Customizable input border type (outline, underline, etc)
borderColor, focusedBorderColor, errorBorderColor	Fine-tune border states

Detailed Properties

Core Properties

• items: (Required) List<GroupedDropdownOption> - Your categorized data. Must not be empty and needs at least two top-level groups.
• onSelect: (Required) ValueChanged<GroupedDropdownOption?> - The heart of the selection! Callback when an item is chosen.
• initialValue: GroupedDropdownOption? - Pre-select an item to start.
• buttonWidth: double - Set the dropdown button's width (defaults to 300.0).

Item & Group Display

• itemPrefix: Widget? - A leading widget for each selectable item in the list.
• enabledRadioForItems: bool - Show radio buttons for selection (defaults to false). Note: Cannot be true if showCheckForSelected is true.
• showCheckForSelected: bool - Display a check mark (or custom widget) next to the selected item (defaults to false). Note: Cannot be true if enabledRadioForItems is true.
• checkWidgetForSelectedItem: Widget? - Your custom check mark widget if showCheckForSelected is true.
• showDividerBtwGroups: bool - Add a visual separator line between groups (defaults to false).
• eachGroupIsExpansion: bool - Make group titles act like ExpansionTile headers (collapsible, defaults to false).

Validation

• isRequired: bool - If true, selection is mandatory for form validation (defaults to false).
• errorText: String? - Custom error message for validation failures (defaults to "This field is required").

Theming 🌈

The widget smartly adapts to your app's ThemeData (text styles, primary color, error color, icon colors via AppContext extension). You can always override these by providing specific color properties directly from your theme.

🧱 GroupedDropdownOption Data Structure

⬆Table of Contents

This class is the blueprint for your dropdown items (both groups and their sub-items).

class GroupedDropdownOption {
  final dynamic key; // Unique identifier (String, int, etc.)
  final String title; // Display text for the option
  final Map<String, dynamic>? extraInfo; // Optional bag for extra data
  final List<GroupedDropdownOption>? subItems; // Child items for group options
  final dynamic parentKey; // Auto-populated: Key of the parent group
  final String? parentTitle; // Auto-populated: Title of the parent group

  GroupedDropdownOption({
    required this.key,
    required this.title,
    this.extraInfo,
    this.subItems,
    // parentKey and parentTitle are typically derived, not manually set for subItems.
  });
}

---

📁 Package Folder Structure (for reference)

⬆Table of Contents

lib
  ├── group_dropdown_button.dart
  └── src
  │   ├── entity
  │       ├── dropdown_option_entity.dart
  │       └── dropdown_return_item.dart
  │   ├── utils
  │       ├── enums.dart
  │       ├── extensions.dart
  │       └── validations.dart
  │   └── widgets
  │       ├── dropdown_button.dart
  │       ├── no_options.dart
  │       └── text_field.dart

---

🤝 Contributing

⬆Table of Contents

Contributions make the open-source community such an amazing place to learn, inspire, and create. Any contributions you make are greatly appreciated!

1. Fork the Project
2. Create your Feature Branch (git checkout -b feature/AmazingFeature)
3. Commit your Changes (git commit -m 'Add some AmazingFeature')
4. Push to the Branch (git push origin feature/AmazingFeature)
5. Open a Pull Request

📜 License

⬆Table of Contents

Distributed under the MIT License. See LICENSE file for more information.
