fluid_sheet 0.1.2

A fluid, iOS-style bottom sheet that animates its margins and corner radius.

fluid_sheet

A fluid, iOS-style bottom sheet for Flutter with buttery-smooth animations that adapts its margins and corner radius as it expands to full screen.

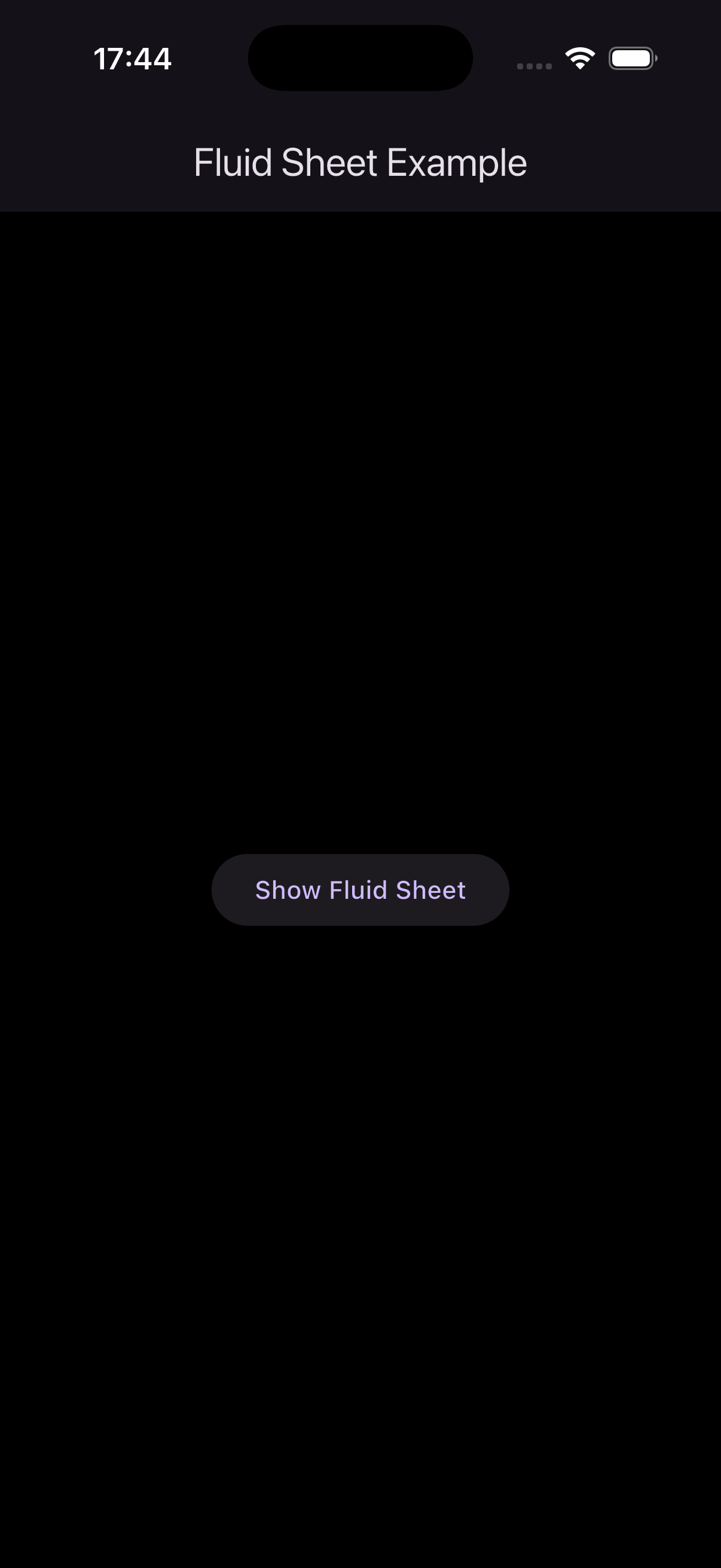

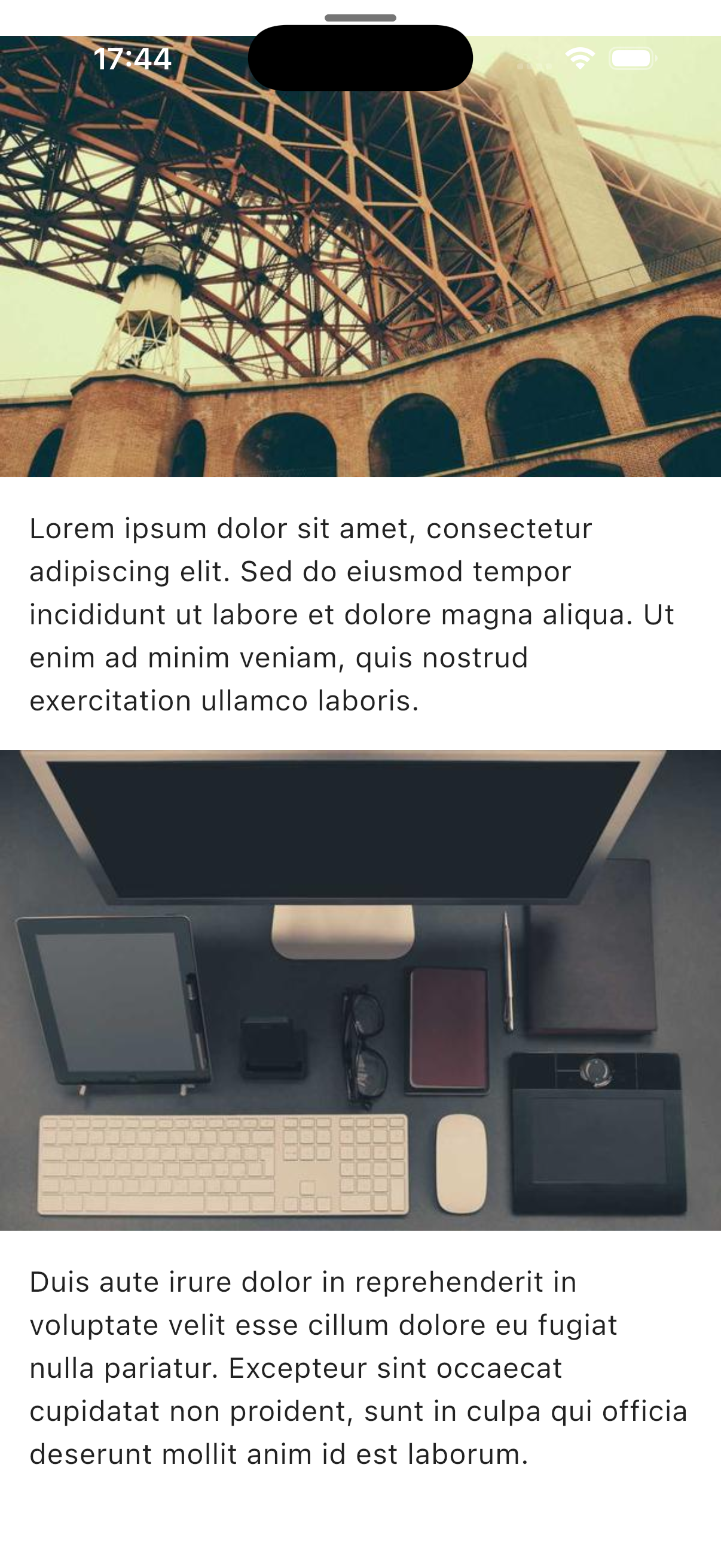

Screenshots

Features

• 🎯 Easy to Use: Simple API similar to showModalBottomSheet
• 🔧 Highly Customizable: Configure colors, heights, safe area, and dismissal behavior
• ✨ Smart Dismissal: Three ways to dismiss - drag pill, overscroll, or tap outside
• 🌈 Theme Support: Customize background color and pill indicator color
• 🔒 Safe Area Support: Optional respect for notches and dynamic islands

Installation

Add this to your package's pubspec.yaml file:

dependencies:
  fluid_sheet: ^0.1.0

Usage

Basic Example

import 'package:flutter/material.dart';
import 'package:fluid_sheet/fluid_sheet.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Center(
          child: ElevatedButton(
            onPressed: () {
              showFluidSheet(
                context: context,
                builder: (context) => Column(
                  children: [
                    const Padding(
                      padding: EdgeInsets.all(16.0),
                      child: Text(
                        'Hello from Fluid Sheet!',
                        style: TextStyle(fontSize: 24, fontWeight: FontWeight.bold),
                      ),
                    ),
                    // Add your content here
                  ],
                ),
              );
            },
            child: const Text('Show Fluid Sheet'),
          ),
        ),
      ),
    );
  }
}

Advanced Example with Customization

showFluidSheet(
  context: context,
  initialHeight: 0.6,              // Start at 60% of screen height
  maxHeight: 0.95,                 // Maximum 95% of screen height
  backgroundColor: Colors.white,    // Sheet background color
  barrierColor: Colors.black54,    // Overlay color
  barrierDismissible: true,        // Tap outside to dismiss
  showPillIndicator: true,         // Show drag indicator
  pillIndicatorColor: Colors.grey, // Pill indicator color
  useSafeArea: true,               // Respect safe area (notch, dynamic island)
  builder: (context) => YourContentWidget(),
);

API Reference

showFluidSheet<T>

Shows a fluid bottom sheet that expands with smooth animations.

Parameters:

Parameter	Type	Default	Description
context	BuildContext	required	The build context
builder	Widget Function(BuildContext)	required	Builder function that creates the sheet content
initialHeight	double	0.5	Initial height as a fraction of screen height (0.0 - 1.0)
maxHeight	double	1.0	Maximum height as a fraction of screen height (0.0 - 1.0)
backgroundColor	Color	Colors.white	Background color of the sheet
barrierColor	Color	Colors.black54	Color of the modal barrier (overlay)
barrierDismissible	bool	true	Whether tapping outside dismisses the sheet
showPillIndicator	bool	true	Whether to show the drag pill indicator
pillIndicatorColor	Color?	Colors.grey[300]	Color of the pill indicator
useSafeArea	bool	false	Whether to respect safe area (camera notch, dynamic island)

Returns: Future<T?> - A future that completes when the sheet is dismissed

Behavior

Dismissal

The sheet can be dismissed in three intuitive ways:

1. Drag the pill indicator down when the sheet is at initial height
2. Overscroll down when content is scrolled to the top (with bounce effect)
3. Tap outside the sheet (if barrierDismissible is true)

All dismissals feature smooth 200ms animations with Curves.easeInCubic for natural closing motion.

Examples

List Content

showFluidSheet(
  context: context,
  builder: (context) => ListView.builder(
    shrinkWrap: true,
    itemCount: 20,
    itemBuilder: (context, index) => ListTile(
      title: Text('Item $index'),
      onTap: () {
        Navigator.pop(context, index);
      },
    ),
  ),
);

Form Content

showFluidSheet(
  context: context,
  backgroundColor: Colors.grey[100]!,
  builder: (context) => Padding(
    padding: const EdgeInsets.all(16.0),
    child: Column(
      mainAxisSize: MainAxisSize.min,
      children: [
        TextField(
          decoration: InputDecoration(labelText: 'Name'),
        ),
        SizedBox(height: 16),
        TextField(
          decoration: InputDecoration(labelText: 'Email'),
        ),
        SizedBox(height: 24),
        ElevatedButton(
          onPressed: () => Navigator.pop(context),
          child: Text('Submit'),
        ),
      ],
    ),
  ),
);

Full-Screen with Safe Area

showFluidSheet(
  context: context,
  initialHeight: 0.7,
  maxHeight: 1.0,
  useSafeArea: true, // Respects notch/dynamic island
  backgroundColor: Colors.white,
  builder: (context) => YourContentWidget(),
);

Custom Theme

showFluidSheet(
  context: context,
  backgroundColor: Colors.black87,
  pillIndicatorColor: Colors.white54,
  barrierColor: Colors.white24,
  builder: (context) => Column(
    mainAxisSize: MainAxisSize.min,
    children: [
      Text(
        'Dark Mode Sheet',
        style: TextStyle(color: Colors.white, fontSize: 24),
      ),
      // ... more content
    ],
  ),
);

Tips & Best Practices

Content-Only Widgets

For best results, make your sheet content widgets "content-only" - let FluidSheet handle scrolling:

// ✅ Good - Content only
class MySheetContent extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        // Your content here
      ],
    );
  }
}

// ❌ Avoid - Don't add your own scroll view
class MySheetContent extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return SingleChildScrollView( // FluidSheet already handles this!
      child: Column(children: [...]),
    );
  }
}

Performance

• Use const constructors where possible to reduce rebuilds
• Avoid heavy computations in the builder function
• For large lists, use ListView.builder instead of ListView with all children
• The sheet automatically optimizes rendering with RepaintBoundary

Responsive Design

showFluidSheet(
  context: context,
  initialHeight: MediaQuery.of(context).size.height > 800 ? 0.6 : 0.7,
  builder: (context) => YourContent(),
);

Technical Details

• Animation Framework: Custom AnimationController with cubic easing curves
• Scroll Physics: BouncingScrollPhysics for iOS-like behavior

Compatibility

• ✅ iOS
• ✅ Android
• ✅ Web (not tested)
• ✅ macOS (not tested)
• ✅ Windows (not tested)
• ✅ Linux (not tested)

License

This project is licensed under the MIT License.

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.
