Elevarm design system for Flutter.

Pub Version

Elevarm design system for Flutter.

Features #

Getting started #

  1. Initialize font configurations by calling ElevarmFontFamilies.init method in main function:
    import 'package:elevarm_ui/elevarm_ui.dart';

    void main() {
        ElevarmFontFamilies.init(
             allowRuntimeFetching: true,
        );

        runApp(const MyApp());
    }

  2. Set the app's theme by passing ElevarmThemeData in MaterialApp:
    import 'package:elevarm_ui/elevarm_ui.dart';

    MaterialApp(
       theme: ElevarmThemeData.light(),
    );

  3. You're finished! Now you can start using elevarm_ui classes below.

A. Color #

Colors are located in ElevarmColors class. See Elevarm Color Reference for the detailed specification.

a.1. Neutral Colors #

Shade Color
#FCFCFD 25 #FCFCFD
#F3F4F5 50 #F3F4F5
#E7E8EA 100 #E7E8EA
#B1B4B9 200 #B1B4B9
#7C8089 300 #7C8089
#464C58 400 #464C58
#101828 500 #101828

a.2. Primary Colors #

Shade Color
#EAECF9 100 #EAECF9
#B9C0EA 200 #B9C0EA
#8995DC 300 #8995DC
#5869CD 400 #5869CD
#283EBF 500 (Default) #283EBF
#2235A4 600 #2235A4
#1D2D8A 700 #1D2D8A
#17246F 800 #17246F
#121B54 900 #121B54

a.3. Info Colors #

Shade Color
#E6F1FC 100 #E6F1FC
#ADD1F6 200 #ADD1F6
#75B0EF 300 #75B0EF
#3D90E9 400 #3D90E9
#0470E2 500 (Default) #0470E2
#0360C2 600 #0360C2
#0351A3 700 #0351A3
#024183 800 #024183
#023163 900 #023163

a.4. Success Colors #

Shade Color
#ECFDF3 50 #ECFDF3
#E9F7E7 100 #E9F7E7
#B8E4B0 200 #B8E4B0
#87D179 300 #87D179
#55BF43 400 #55BF43
#24AC0C 500 (Default) #24AC0C
#1F940A 600 #1F940A
#1A7C09 700 #1A7C09
#156407 800 #156407
#104C05 900 #104C05

a.5. Warning Colors #

Shade Color
#FFF7E6 100 #FFF7E6
#FEE3AE 200 #FEE3AE
#FDD077 300 #FDD077
#FDBD3F 400 #FDBD3F
#FCAA07 500 (Default) #FCAA07
#D99206 600 #D99206
#B57A05 700 #B57A05
#926304 800 #926304
#6F4B03 900 #6F4B03

a.6. Danger Colors #

Shade Color
#FEF3F2 50 #FEF3F2
#FAEBEC 100 #FAEBEC
#EFBDC0 200 #EFBDC0
#E49094 300 #E49094
#D86268 400 #D86268
#CD353C 500 (Default) #CD353C
#B02E34 600 #B02E34
#94262B 700 #94262B
#771F23 800 #771F23
#5A171A 900 #5A171A
import 'package:elevarm_ui/elevarm_ui.dart';

const primary = ElevarmColors.primary;
const success500 = ElevarmColors.success500;

B. Typography #

See Elevarm Typography Reference for the detailed specification.

b.1. Font Family #

Font families are located in ElevarmFontFamilies class.

import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmFontFamilies.init(); // Call this before `runApp`.
const poppins = ElevarmFontFamilies.poppins();

b.2. Font Weight #

Font weights are located in ElevarmFontWeights class.

Name Weight
regular 400
medium 500
semibold 600
bold 700
import 'package:elevarm_ui/elevarm_ui.dart';

const fontWeightBold = ElevarmFontWeights.bold;

b.3. Font Size #

Font sizes are located in ElevarmFontSizes class.

Name Size
xl5 48.0 dip
xl4 36.0 dip
xl3 30.0 dip
xl2 24.0 dip
xl 20.0 dip
lg 18.0 dip
md 16.0 dip
sm 14.0 dip
xs 12.0 dip
import 'package:elevarm_ui/elevarm_ui.dart';

const fontSizeLg = ElevarmFontSizes.lg;

C. Shape #

c.1. Border Radius #

Border radiuses are located in ElevarmBorderRadius class.

Name Size
xs 4.0 dip
sm 8.0 dip
md 12.0 dip
lg 16.0 dip
xl 20.0 dip
xl2 24.0 dip
xl3 32.0 dip
xl4 40.0 dip
import 'package:elevarm_ui/elevarm_ui.dart';

const borderRadiusXl = ElevarmBorderRadius.xl;

D. Shadow #

d.1. Box Shadow #

Box shadows are located in ElevarmBoxShadow class.

Name Shadow (h-offset v-offset blur spread color)
xs 0px 1px 2px 0px rgba(16, 24, 40, 0.05)
sm 0px 1px 2px 0px rgba(16, 24, 40, 0.06) 0px 1px 3px 0px rgba(16, 24, 40, 0.1)
md 0px 2px 4px -2px rgba(16, 24, 40, 0.06) 0px 4px 8px -2px rgba(16, 24, 40, 0.1)
lg 0px 4px 6px -2px rgba(16, 24, 40, 0.03) 0px 12px 16px -4px rgba(16, 24, 40, 0.08)
xl 0px 8px 8px -4px rgba(16, 24, 40, 0.03) 0px 20px 24px -4px rgba(16, 24, 40, 0.08)
xl2 0px 24px 48px -12px rgba(16, 24, 40, 0.18)
xl3 0px 32px 64px -12px rgba(16, 24, 40, 0.14)
xl4 0px 6px 24px -12px rgba(16, 24, 40, 0.5)
import 'package:elevarm_ui/elevarm_ui.dart';

const boxShadowXl = ElevarmBoxShadow.xl;

d.2. Blur #

Theme Screenshot
ElevarmBlur

Blurs are located in ElevarmBlur class.

Name Blur value
xs 8px
sm 16px
md 24px
lg 40px
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmBlur(
    blurColor: Colors.black.withOpacity(0.6),
    blur: ElevarmBlurSizes.xs,
    borderRadius: BorderRadius.circular(ElevarmBorderRadius.sm),
    overlay: const Center(
        child: Text(
            'sm dark',
            style: TextStyle(
                color: Colors.white,
            ),
        ),
    ),
    child: const SizedBox(
        width: 390,
        height: 120,
    ),
)

E. Components #

ElevarmAlert #

Component Screenshot
ElevarmAlert
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmAlert(
    text: 'There was a problem with that action',
    subtitle: 'Lorem ipsum...',
    variant: ElevarmAlertVariant.info,
    onClose: () {},
    secondaryActionText: 'Dismiss',
    onPressedSecondaryAction: () {},
    primaryActionText: 'View changes',
    onPressedPrimaryAction: () {},
)

ElevarmConfirmAlertDialog #

Component Screenshot
ElevarmConfirmAlertDialog
import 'package:elevarm_ui/elevarm_ui.dart';

/// Normal  dialog.
  ElevarmPrimaryButton.text(
    text: 'Show Dialog',
    onPressed: () {
      ElevarmConfirmAlertDialog(
        title: 'Confirmation Dialog',
        subtitle: 'subtitle',
        onPositiveButton: () {},
        onNegativeButton: () {},
        positiveText: 'positiveText',
        negativeText: 'negativeText',
        variant: ElevarmDialogVariant.basic
      ).show(context);
    },
  ),
/// Dialog danger.
  ElevarmPrimaryButton.text(
    text: 'Show Dialog',
    onPressed: () {
      ElevarmConfirmAlertDialog(
        title: 'Confirmation Dialog',
        subtitle: 'subtitle',
        onPositiveButton: () {},
        onNegativeButton: () {},
        positiveText: 'positiveText',
        negativeText: 'negativeText',
        variant: ElevarmDialogVariant.danger
      ).show(context);
    },
  ),

ElevarmAutocompleteInputField #

Component Screenshot
ElevarmAutocompleteInputField
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmAutocompleteInputField<String>(
    label: 'Team Member',
    hintText: 'Select team member',
    helperText: 'This is a hint text to help user.',
    onChanged: (value) {},
    options: [
        ElevarmAutocompleteInputFieldOption(
            title: 'Phoenix Baker',
            subtitle: '@phoenix',
            value: 'Phoenix Baker',
        ),
        ElevarmAutocompleteInputFieldOption(
            title: 'Olivia Rhye',
            subtitle: '@olivia',
            value: 'Olivia Rhye',
        ),
    ],
)

ElevarmAvatar #

See Elevarm Avatar Reference for the detailed specification.

Component Screenshot
ElevarmAvatar
import 'package:elevarm_ui/elevarm_ui.dart';

/// Avatar with initial.
const ElevarmAvatar(
    initial: 'OR',
)
/// Avatar with ImageProvider.
const ElevarmAvatar(
    image: const NetworkImage(
        'https://robohash.org/mail@ashallendesign.co.uk'
    ),
)
/// Avatar with custom size.
const ElevarmAvatar(
    size: ElevarmAvatarSizes.sm,
)
/// Avatar with online indicator.
const ElevarmAvatar(
    showOnlineIndicator: true,
)
/// Avatar with verified tick.
const ElevarmAvatar(
    showVerifiedTick: true,
)

ElevarmBottomSheet #

Component Screenshot
ElevarmBottomSheet
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmBottomSheet(
    initialChildSize: 0.65,
    title: 'Perhatian',
    onPressedClose: () {},
    children: [
        Text('Agar proses lelang berjalan lancar, mohon cek kembali daftar setoran bersih. Pastikan semua komoditas sudah terdata dengan baik.',
            textAlign: TextAlign.left,
            style: ElevarmFontFamilies.inter(
            color: ElevarmColors.neutral300,
            fontSize: ElevarmFontSizes.sm,
            fontWeight: ElevarmFontWeights.regular,
            ),
        ),
        const SizedBox(height: 30),
        SizedBox(
            height: 44,
            width: double.infinity,
            child: ElevarmOutlineButton.text(
            text: 'Lihat Setoran Bersih',
            onPressed: () {},
            ),
        ),
        const SizedBox(height: 12),
        SizedBox(
            height: 44,
            width: double.infinity,
            child: ElevarmPrimaryButton.icon(
            text: 'Lanjutkan',
            onPressed: () {},
            trailingIconAssetName: ElevarmIconsOutline.arrowRight,
            leadingIconAssetName: null,
            )
        ),
    ]
);

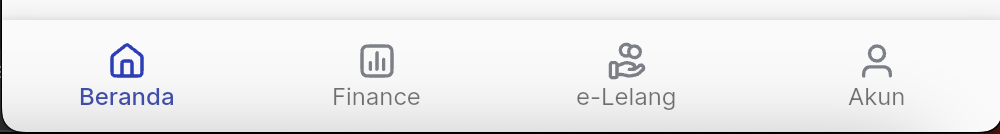

ElevarmBottomNavigationBar #

Component Screenshot
ElevarmBottomNavigationBar
import 'package:elevarm_ui/elevarm_ui.dart';

Widget body = Container();
if (_currentTabIndex == 0) {
  body = _buildHomeScreen(context);
}

return Scaffold(
  appbar: AppBar,
  body: body,
  bottomNavigationBar: ElevarmBottomNavigationBar(
        currentIndex: _currentTabIndex,
        onTap: (index) {
          setState(() {
            _currentTabIndex = index;
          });
        },
        items: [
          ElevarmBottomNavigationBarItem(
            labelText: 'Beranda',
            iconAssetName: ElevarmIconsOutline.home02,
          ),
          ElevarmBottomNavigationBarItem(
            labelText: 'Pembelanjaan',
            iconAssetName: ElevarmIconsOutline.shoppingCart01,
          ),
          ElevarmBottomNavigationBarItem(
            labelText: 'Penjualan',
            iconAssetName: ElevarmIconsOutline.coinsSwap01,
          ),
          ElevarmBottomNavigationBarItem(
            labelText: 'Akun',
            iconAssetName: ElevarmIconsOutline.user01,
          ),
        ],
    ),
);

ElevarmButtonTheme #

Component Screenshot
ElevarmButtonTheme
/// Theme for buttons (base)
const greenButtonThemeData = ElevarmButtonThemeData(
    primaryColor: green500,
    disabledColor: green200,
    hoverColor: green600,
    focusColor: green500,
);

/// Theme for primary button
const greenPrimaryButtonThemeData = ElevarmPrimaryButtonThemeData(
    primaryColor: green500,
    disabledColor: green200,
    hoverColor: green600,
    focusColor: green500,
);

/// Directly set theme to button
AppPrimaryButton.text(
    text: 'Dummy Alt Button',
    buttonThemeData: greenPrimaryButtonThemeData,
    onPressed: () {},
),

/// or Wrap with [ElevarmButtonTheme] to provide theme to all primary buttons in tree
ElevarmButtonTheme(
    primaryButtonThemeData: greenPrimaryButtonThemeData,
    child: Scaffold(),
);

ElevarmCheckbox #

Component Screenshot
ElevarmCheckbox
import 'package:elevarm_ui/elevarm_ui.dart';

/// Checked or not.
ElevarmCheckbox(
    checked: false,
    onPressed: () {},
)
/// Indeterminate.
ElevarmCheckbox(
    checked: true,
    indeterminate: true,
    onPressed: () {},
)
/// With supporting texts.
ElevarmCheckbox(
    checked: false,
    onPressed: () {},
    title: 'Remember me',
    subtitle: 'Save my login details for next time.',
)

ElevarmCheckboxListTile #

Component Screenshot
ElevarmCheckboxListTile
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmCheckboxListTile(
    checked: false,
    onPressed: (){},
    title: '',
    subtitle: '',
    padding: const EdgeInsets.all(16.0),
    size: ElevarmCheckboxSize.sm,
    trailingWidget: Container(),
),

ElevarmCheckboxTheme #

Component Screenshot
ElevarmCheckboxTheme

const greenCheckboxThemeData = ElevarmCheckboxThemeData(
    borderCheckedColor: green500,
    borderFocusedColor: green300,
    backgroundCheckedColor: green100,
    iconEnabledColor: green500,
);

/// Directly set theme to checkbox
ElevarmCheckbox(
    title: 'Dummy Checkbox 2',
    checked: checkboxChecked2,
    onPressed: () {
    setState(() {
        checkboxChecked2 = !checkboxChecked2;
    });
    },
    checkboxThemeData: greenCheckboxThemeData,
);

ElevarmCheckboxListTile(
    title: 'Dummy Checkbox 2',
    checked: checkboxChecked2,
    onPressed: () {
    setState(() {
        checkboxChecked2 = !checkboxChecked2;
    });
    },
    checkboxThemeData: greenCheckboxThemeData,
);

/// or Wrap with [ElevarmCheckboxTheme] to provide theme to all checkbox in tree
ElevarmCheckboxTheme(
    checkboxThemeData: greenCheckboxThemeData,
    child: Scaffold(),
);

ElevarmDivider #

Component Screenshot
ElevarmDivider
import 'package:elevarm_ui/elevarm_ui.dart';

/// Normal  divider.
ElevarmDivider()
/// With middle content.
ElevarmDivider(
    child: Text('With Text'),
)

ElevarmDonutChartCard #

Component Screenshot
ElevarmDonutChartCard
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmDonutChartCard(
    title: 'Kepemilikan Lahan',
    subtitle: 'Terakhir diperbarui 30/11/2021 - 09.30 WIB',
    dataSource: [
        ElevarmDonutChartData(
            label: 'Sewa',
            value: 2000,
            color: ElevarmColors.success,
        ),
        ElevarmDonutChartData(
            label: 'Milik Sendiri',
            value: 1000,
            color: ElevarmColors.primary600,
        ),
    ],
)

ElevarmDrawer and ElevarmDesktopDrawer #

Component Screenshot
ElevarmDesktopDrawer (expanded)
ElevarmDesktopDrawer (shrunk)
ElevarmDrawer
import 'package:elevarm_ui/elevarm_ui.dart';
import 'package:go_router/go_router.dart';

/// Drawer for mobile
const ElevarmDrawer(
    currentRoutePath: '/dashboard',
    onChangedRoutePath: (context, String? routePath) {
        if (routePath != null) {
            context.go(routePath);
        }
    },
    profileTitle: 'Olivia Rhye',
    profileSubtitle: 'olivia@untitledui.com',
    onPressedLogout: (context) {},
    headerTitle: Text('AgriMaps'),
    headerSubtitle: Text('DASHBOARD'),
    mainMenus: [], /// List<ElevarmDrawerMenu>
    secondaryMenus: [], /// List<ElevarmDrawerMenu>
)
/// Drawer for desktop
const ElevarmDesktopDrawer(
    currentRoutePath: '/dashboard',
    onChangedRoutePath: (context, String? routePath) {
        if (routePath != null) {
            context.go(routePath);
        }
    },
    profileTitle: 'Olivia Rhye',
    profileSubtitle: 'olivia@untitledui.com',
    onPressedLogout: (context) {},
    headerTitle: Text('AgriMaps'),
    headerSubtitle: Text('DASHBOARD'),
    mainMenus: [], /// List<ElevarmDrawerMenu>
    secondaryMenus: [], /// List<ElevarmDrawerMenu>
    child: Text('Drawer content'),
)

ElevarmDraggableBottomSheet #

Component Screenshot
ElevarmDraggableBottomSheet
import 'package:elevarm_ui/elevarm_ui.dart';

final double deviceHeight = MediaQuery.of(context).size.height;
final double height = 460 / deviceHeight; // height based on ratio of widget's height and device's height
return ElevarmDraggableBottomSheet(
    title: 'Pilih Rekening',
    initialChildSize: height,
    maxChildSize: height, // set maxChildSize to same as initialChildSize if you want your bottom sheet to have exact height/wrap content
    onPressedClose: widget.onPressedClose,
    footerWidget: ElevarmPrimaryButton.text(
        text: 'Simpan & Tutup',
        height: ElevarmButtonHeights.lg,
        onPressed: _selectedAccount == null
            ? null
            : () => widget.onPressedSelect(_selectedAccount!),
    ),
    children: bankAccountDummies
        .mapIndexed(
        (index, data) => _buildBankAccountItem(
            data,
            index == bankAccountDummies.length - 1,
        ),
        )
        .toList(),
);

ElevarmDropdownInputField #

Component Screenshot
ElevarmDropdownInputField
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmDropdownInputField<String>(
    label: 'Team Member',
    hintText: 'Select team member',
    helperText: 'This is a hint text to help user.',
    onChanged: (value) {},
    options: [
        ElevarmDropdownInputFieldOption(
            title: 'Phoenix Baker',
            subtitle: '@phoenix',
            value: 'Phoenix Baker',
        ),
        ElevarmDropdownInputFieldOption(
            title: 'Olivia Rhye',
            subtitle: '@olivia',
            value: 'Olivia Rhye',
        ),
    ],
)

ElevarmElevatedCard #

Component Screenshot
ElevarmElevatedCard
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmElevatedCard(
    child: Column(
        children: [
            Row(
                children: [
                    Text('Varietas',
                        textAlign: TextAlign.left,
                        style: ElevarmFontFamilies.inter(
                        color: ElevarmColors.neutral300,
                        fontSize: ElevarmFontSizes.sm,
                        fontWeight: ElevarmFontWeights.regular,
                        ),
                    ),
                    const Spacer(),
                    Text('Varietas A',
                        textAlign: TextAlign.left,
                        style: ElevarmFontFamilies.inter(
                        color: ElevarmColors.neutral500,
                        fontSize: ElevarmFontSizes.sm,
                        fontWeight: ElevarmFontWeights.regular,
                        ),
                    )
                ],
            ),

        ],
    ),
),

ElevarmFileUploadCard #

Component Screenshot
ElevarmFileUploadCard
import 'package:elevarm_ui/elevarm_ui.dart';

/// With Progress Indicator
ElevarmFileUploadCard(
    title: 'Pembayaran.png',
    subtitle: '$filesize - $timestamp'
    actionIconAssetName: ElevarmIconsOutline.delete,
    loadingProgress: 1,
    isLoading: true,
    onTap: () {},
    onTapAction: () {},
),
/// Without Progress Indicator
ElevarmFileUploadCard(
    title: 'Pembayaran.png',
    subtitle: '$filesize - $timestamp'
    actionIconAssetName: ElevarmIconsOutline.eye,
    onTap: () {},
    onTapAction: () {},
),

ElevarmInputFileCard #

Component Screenshot
ElevarmInputFileCard
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmInputFileCard(
    onTap: () {},
    clickToUploadLabel: 'Klik untuk unggah',
    orDragAndDropLabel: ' atau seret dan lepas',
    subtitle: 'PNG, JPG, JPEG (maks. 800x400px)',
)

ElevarmFilledBadge #

Component Screenshot
ElevarmFilledBadge
import 'package:elevarm_ui/elevarm_ui.dart';

/// With text only.
ElevarmFilledBadge.text(
    'Label',
)
/// With text and dot.
ElevarmFilledBadge.dot(
    'Label',
)
/// With text and avatar.
ElevarmFilledBadge.avatar(
    'Label',
    const ElevarmAvatar(
        image: const NetworkImage('https://robohash.org/mail@ashallendesign.co.uk'),
    ),
)
/// With text and cancel icon.
ElevarmFilledBadge.cancel(
    'Label',
)
/// With icon only.
ElevarmFilledBadge.iconOnly(
    ElevarmIconsOutline.user01,
)

ElevarmIcon #

Component Screenshot
ElevarmIcon
import 'package:elevarm_ui/elevarm_ui.dart';

const ElevarmIcon(
    ElevarmIconsOutline.user01,
)

ElevarmImagePreviewDialog and ElevarmImagePreviewScreen #

Component Screenshot
ElevarmImagePreviewDialog
ElevarmImagePreviewScreen
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmImagePreviewDialog(
    imageUrl: 'https://picsum.photos/200',
    onPressedClose: () {
        Navigator.of(context).pop();
    },
    onPressedFullscreen: () {
        GoRouter.of(context).push(
            '/component/preview/image',
            extra: 'https://picsum.photos/200',
        );
    },
    title: 'Image Preview',
).show(context);

ElevarmLinearProgressIndicator #

Component Screenshot
ElevarmLinearProgressIndicator
import 'package:elevarm_ui/elevarm_ui.dart';

const ElevarmLinearProgressIndicator(
    value: 0.5,
)
Component Screenshot
ElevarmLogo
import 'package:elevarm_ui/elevarm_ui.dart';

/// Colorful variant.
const ElevarmLogo(
    variant: ElevarmLogoVariant.colorful,
)

/// White Green variant.
const ElevarmLogo(
    variant: ElevarmLogoVariant.whiteGreen,
)

/// White variant.
const ElevarmLogo(
    variant: ElevarmLogoVariant.white,
)

/// Black variant.
const ElevarmLogo(
    variant: ElevarmLogoVariant.black,
)

ElevarmLineChart #

Component Screenshot
ElevarmLineChart
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmOutlinedCard(
    child: ElevarmLineChart(
        splineType: ElevarmLineChartSplineType.natural,
        dataSource: [
            ElevarmLineChartDataSeries(
                label: 'Sewa',
                color: ElevarmColors.success,
                dataPoints: [
                    ElevarmLineChartData(
                    label: 'Jan',
                    value: 10,
                    ),
                    ElevarmLineChartData(
                    label: 'Feb',
                    value: 15,
                    ),
                ],
            ),
        ],
    )
)


ElevarmLinkNeutralButton #

Component Screenshot
ElevarmLinkNeutralButton
import 'package:elevarm_ui/elevarm_ui.dart';

// Button with only text
ElevarmLinkNeutralButton.text(
    text: 'Button CTA',
    onPressed: () {},
)
// Button with text & icon (trailing and/or leading)
ElevarmLinkNeutralButton.icon(
    text: 'Button CTA',
    onPressed: () {},
    height: buttonSize['size'] as double,
    leadingIconAssetName: ElevarmIconsOutline.plus,
    trailingIconAssetName: null,
)
// Button with only icon
ElevarmLinkNeutralButton.iconOnly(
    iconAssetName: ElevarmIconsOutline.plus,
    onPressed: () {},
)

ElevarmLinkPrimaryButton #

Component Screenshot
ElevarmLinkPrimaryButton
import 'package:elevarm_ui/elevarm_ui.dart';

// Button with only text
ElevarmLinkPrimaryButton.text(
    text: 'Button CTA',
    onPressed: () {},
)
// Button with text & icon (trailing and/or leading)
ElevarmLinkPrimaryButton.icon(
    text: 'Button CTA',
    onPressed: () {},
    height: buttonSize['size'] as double,
    leadingIconAssetName: ElevarmIconsOutline.plus,
    trailingIconAssetName: null,
)
// Button with only icon
ElevarmLinkPrimaryButton.iconOnly(
    iconAssetName: ElevarmIconsOutline.plus,
    onPressed: () {},
)

ElevarmNeutralCard #

Component Screenshot
ElevarmNeutralCard
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmNeutralCard(
    child: Column(
        children: [
            Row(
                children: [
                    Text('Varietas',
                        textAlign: TextAlign.left,
                        style: ElevarmFontFamilies.inter(
                        color: ElevarmColors.neutral300,
                        fontSize: ElevarmFontSizes.sm,
                        fontWeight: ElevarmFontWeights.regular,
                        ),
                    ),
                    const Spacer(),
                    Text('Varietas A',
                        textAlign: TextAlign.left,
                        style: ElevarmFontFamilies.inter(
                        color: ElevarmColors.neutral500,
                        fontSize: ElevarmFontSizes.sm,
                        fontWeight: ElevarmFontWeights.regular,
                        ),
                    )
                ],
            ),

        ],
    ),
),

ElevarmOutlinedBadge #

Component Screenshot
ElevarmOutlinedBadge
import 'package:elevarm_ui/elevarm_ui.dart';

/// With text only.
ElevarmOutlinedBadge.text(
    'Label',
)
/// With text and dot.
ElevarmOutlinedBadge.dot(
    'Label',
)
/// With text and avatar.
ElevarmOutlinedBadge.avatar(
    'Label',
    const ElevarmAvatar(
        image: const NetworkImage('https://robohash.org/mail@ashallendesign.co.uk'),
    ),
)
/// With text and cancel icon.
ElevarmOutlinedBadge.cancel(
    'Label',
)
/// With icon only.
ElevarmOutlinedBadge.iconOnly(
    ElevarmIconsOutline.user01,
)

ElevarmOutlineButton #

Component Screenshot
ElevarmOutlineButton
import 'package:elevarm_ui/elevarm_ui.dart';

// Button with only text
ElevarmOutlineButton.text(
    text: 'Button CTA',
    onPressed: () {},
)
// Button with text & icon (trailing and/or leading)
ElevarmOutlineButton.icon(
    text: 'Button CTA',
    onPressed: () {},
    height: buttonSize['size'] as double,
    leadingIconAssetName: ElevarmIconsOutline.plus,
    trailingIconAssetName: null,
)
// Button with only icon
ElevarmOutlineButton.iconOnly(
    iconAssetName: ElevarmIconsOutline.plus,
    onPressed: () {},
)

ElevarmOutlinedCard #

Component Screenshot
ElevarmOutlinedCard
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmOutlinedCard(
    child: Column(
        children: [
            Row(
                children: [
                    Text('Varietas',
                        textAlign: TextAlign.left,
                        style: ElevarmFontFamilies.inter(
                        color: ElevarmColors.neutral300,
                        fontSize: ElevarmFontSizes.sm,
                        fontWeight: ElevarmFontWeights.regular,
                        ),
                    ),
                    const Spacer(),
                    Text('Varietas A',
                        textAlign: TextAlign.left,
                        style: ElevarmFontFamilies.inter(
                        color: ElevarmColors.neutral500,
                        fontSize: ElevarmFontSizes.sm,
                        fontWeight: ElevarmFontWeights.regular,
                        ),
                    )
                ],
            ),

        ],
    ),
),

ElevarmPasswordStrength #

Component Screenshot
ElevarmPasswordStrength
import 'package:elevarm_ui/elevarm_ui.dart';

/// With default validations.
ElevarmPasswordStrength(
    password: _inputPassword,
    validations: ElevarmPasswordStrengthValidation.getDefaults(),
)
/// With custom validations.
ElevarmPasswordStrength(
    title: 'Custom Password Validation:',
    password: _inputPassword,
    validations: [
        ElevarmPasswordStrengthValidation(
            label: 'Harus mengandung kata "Hehe"',
            validate: (password) => password.contains("Hehe"),
        ),
    ],
)

ElevarmPrimaryButton #

Component Screenshot
ElevarmPrimaryButton
import 'package:elevarm_ui/elevarm_ui.dart';

// Button with only text
ElevarmPrimaryButton.text(
    text: 'Button CTA',
    onPressed: () {},
)
// Button with text & icon (trailing and/or leading)
ElevarmPrimaryButton.icon(
    text: 'Button CTA',
    onPressed: () {},
    height: buttonSize['size'] as double,
    leadingIconAssetName: ElevarmIconsOutline.plus,
    trailingIconAssetName: null,
)
// Button with only icon
ElevarmPrimaryButton.iconOnly(
    iconAssetName: ElevarmIconsOutline.plus,
    onPressed: () {},
)

ElevarmPrimaryCard #

Component Screenshot
ElevarmPrimaryCard
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmPrimaryCard(
    child: Column(
        children: [
            Row(
                children: [
                    Text('Varietas',
                        textAlign: TextAlign.left,
                        style: ElevarmFontFamilies.inter(
                        color: ElevarmColors.neutral300,
                        fontSize: ElevarmFontSizes.sm,
                        fontWeight: ElevarmFontWeights.regular,
                        ),
                    ),
                    const Spacer(),
                    Text('Varietas A',
                        textAlign: TextAlign.left,
                        style: ElevarmFontFamilies.inter(
                        color: ElevarmColors.neutral500,
                        fontSize: ElevarmFontSizes.sm,
                        fontWeight: ElevarmFontWeights.regular,
                        ),
                    )
                ],
            ),

        ],
    ),
),

ElevarmRadioButton #

Component Screenshot
ElevarmRadioButton
import 'package:elevarm_ui/elevarm_ui.dart';

/// Radio button only.
ElevarmRadioButton<String>(
    value: 'farmer',
    groupValue: _selectedFarmer,
    onChanged: (String newSelectedFarmer) {},
)
/// With supporting texts.
ElevarmRadioButton<String>(
    value: 'farmer',
    groupValue: _selectedFarmer,
    onChanged: (String newSelectedFarmer) {},
    title: 'Remember me',
    subtitle: 'Save my login details for next time.',
)

ElevarmRadioListTile #

Component Screenshot
ElevarmRadioListTile
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmRadioListTile<BankAccountModel>(
    value: data,
    groupValue: _selectedAccount,
    onChanged: _handleChangeRadioButtonValue,
    title: data.accountNumber ?? '',
    subtitle: data.holderName ?? '',
    trailingWidget: Container(
        width: 50,
        height: 50,
        color: ElevarmColors.neutral50,
        child: Center(
        child: Text(data.bankName ?? ''),
        ),
    ),
),

ElevarmIconRipple #

Component Screenshot
ElevarmIconRipple
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmIconRipple(
    backgroundColor: ElevarmColors.success200,
    iconAssetName: ElevarmIconsOutline.check,
    iconColor: ElevarmColors.success,
    rippleColor: ElevarmColors.success100,
),

ElevarmSecondaryButton #

Component Screenshot
ElevarmSecondaryButton
import 'package:elevarm_ui/elevarm_ui.dart';

// Button with only text
ElevarmSecondaryButton.text(
    text: 'Button CTA',
    onPressed: () {},
)
// Button with text & icon (trailing and/or leading)
ElevarmSecondaryButton.icon(
    text: 'Button CTA',
    onPressed: () {},
    height: buttonSize['size'] as double,
    leadingIconAssetName: ElevarmIconsOutline.plus,
    trailingIconAssetName: null,
)
// Button with only icon
ElevarmSecondaryButton.iconOnly(
    iconAssetName: ElevarmIconsOutline.plus,
    onPressed: () {},
)

ElevarmStackedHorizontalBarChart #

Component Screenshot
ElevarmStackedHorizontalBarChart
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmOutlinedCard(
    child: ElevarmStackedHorizontalBarChart(
        tooltipTitle: 'Komoditas',
        legendValueBuilder: (data) => '${data.value}x rotasi',
        dataSource: [
            ElevarmStackedHorizontalBarChartData(
                label: 'Jagung',
                value: 15,
                color: ElevarmColors.success,
                customData: '1000 Transaksi',
            ),
            ElevarmStackedHorizontalBarChartData(
                label: 'Mentimun',
                value: 12,
                color: ElevarmColors.primary,
                customData: '2k Transaksi',
            ),
        ],
    )
)

ElevarmStackedVerticalBarChartCard #

Component Screenshot
ElevarmStackedVerticalBarChartCard
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmStackedVerticalBarChartCard(
    title: 'Komparasi Petani Terscout & Terdaftar Sebagai Mitra',
    tooltipTitle: 'Petani',
    subtitle: 'Terakhir diperbarui 30/11/2021 - 09.30 WIB',
    dataSource: [
        ElevarmStackedVerticalBarChartDataSeries(
            label: 'Sewa',
            color: ElevarmColors.success,
            dataPoints: [
                ElevarmStackedVerticalBarChartData(
                    label: 'Jan',
                    value: 10,
                ),
                ElevarmLineChartData(
                    label: 'Feb',
                    value: 15,
                ),
            ],
        ),
    ],
)

ElevarmStepper #

Component Screenshot
ElevarmStepper
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmStepper(
    steps: <ElevarmStepperStep>[
        ElevarmStepperStep(
            title: 'Step 1',
            subtitle: 'This is the first step',
            onTap: () {},
        ),
        ElevarmStepperStep(
            title: 'Step 2',
            subtitle: 'This is the second step',
            onTap: () {},
        ),
        ElevarmStepperStep(
            title: 'Step 3',
            subtitle: 'This is the third step',
            onTap: () {},
        ),
    ],
    currentStep: 0,
),

ElevarmSwitch #

Component Screenshot
ElevarmSwitch
import 'package:elevarm_ui/elevarm_ui.dart';

/// Switched on or not.
ElevarmSwitch(
    value: false,
    onChanged: (newValue) {},
)
/// With supporting texts.
ElevarmSwitch(
    value: false,
    onChanged: (newValue) {},
    title: 'Remember me',
    subtitle: 'Save my login details for next time.',
)

ElevarmTabBar #

Component Screenshot
ElevarmTabBar
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmTabBar(
    labels: const ['Petani', 'Komoditas'],
    activeIndex: 0,
    onChange: (int newIndex) {},
)

ElevarmTag #

Component Screenshot
ElevarmTag
import 'package:elevarm_ui/elevarm_ui.dart';

// Normal.
ElevarmTag(
    text: 'Label',
    size: ElevarmTagSize.sm,
)

// With trailing close icon.
ElevarmTag(
    text: 'Label',
    size: ElevarmTagSize.sm,
    trailing: ElevarmTagTrailing.closeIcon,
)

// With trailing count.
ElevarmTag(
    text: 'Label',
    size: ElevarmTagSize.sm,
    trailing: ElevarmTagTrailing.count,
    count: 5,
)

// With avatar.
ElevarmTag.avatar(
    text: 'Label',
    size: ElevarmTagSize.sm,
    avatarImage: const AssetImage('assets/images/female_avatar.png'),
)

// With dot.
ElevarmTag.dot(
    text: 'Label',
    size: ElevarmTagSize.sm,
)

// With checkbox.
ElevarmTag(
    text: 'Label',
    size: ElevarmTagSize.sm,
    showCheckbox: true,
    checkboxValue: _myCheckboxValue,
    onTap: () {
        setState(() {
            _myCheckboxValue = !_myCheckboxValue;
        });
    }
)

ElevarmTextDropdownInputField #

Component Screenshot
ElevarmTextDropdownInputField
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmTextDropdownInputField(
    label: 'Berat',
    hintText: '0',
    helperText: 'Berat komoditas.',
    errorText: 'This is an error message.',
    dropdownInitialValue: 'Kg',
    dropdownOptions: [
        ElevarmDropdownInputFieldOption(
            title: 'Kg',
            value: 'Kg',
        ),
        ElevarmDropdownInputFieldOption(
            title: 'Gr',
            value: 'Gr',
        ),
    ],
    dropdownOnChanged: (value) {},
    enabled: true,
)

ElevarmTextInputField #

Component Screenshot
ElevarmTextInputField
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmTextInputField(
    label: 'Email',
    hintText: 'olivia@untitledui.com',
    helperText: 'This is a hint text to help user.',
    suffixIconAssetName: ElevarmIconsOutline.helpCircle,
    onTapSuffix: null,
    errorText: null,
    enabled: true,
)

ElevarmTertiaryNeutralButton #

Component Screenshot
ElevarmTertiaryNeutralButton
import 'package:elevarm_ui/elevarm_ui.dart';

// Button with only text
ElevarmTertiaryNeutralButton.text(
    text: 'Button CTA',
    onPressed: () {},
)
// Button with text & icon (trailing and/or leading)
ElevarmTertiaryNeutralButton.icon(
    text: 'Button CTA',
    onPressed: () {},
    height: buttonSize['size'] as double,
    leadingIconAssetName: ElevarmIconsOutline.plus,
    trailingIconAssetName: null,
)
// Button with only icon
ElevarmTertiaryNeutralButton.iconOnly(
    iconAssetName: ElevarmIconsOutline.plus,
    onPressed: () {},
)

ElevarmTertiaryPrimaryButton #

Component Screenshot
ElevarmTertiaryPrimaryButton
import 'package:elevarm_ui/elevarm_ui.dart';

// Button with only text
ElevarmTertiaryPrimaryButton.text(
    text: 'Button CTA',
    onPressed: () {},
)
// Button with text & icon (trailing and/or leading)
ElevarmTertiaryPrimaryButton.icon(
    text: 'Button CTA',
    onPressed: () {},
    height: buttonSize['size'] as double,
    leadingIconAssetName: ElevarmIconsOutline.plus,
    trailingIconAssetName: null,
)
// Button with only icon
ElevarmTertiaryPrimaryButton.iconOnly(
    iconAssetName: ElevarmIconsOutline.plus,
    onPressed: () {},
)

showElevarmSelectDateRangeBottomSheet #

Component Screenshot
showElevarmSelectDateRangeBottomSheet
import 'package:elevarm_ui/elevarm_ui.dart';

// Show select date range bottom sheet
showElevarmSelectDateRangeBottomSheet(
    context: context,
    onPressedClose: () {},
    onPressedActivate: (selectedDateRange) {},
    onPressedReset: () {},
    selectedYear: 2020,
    initialOption: ElevarmSelectDateRangeBottomSheetOption.selectYear
);

showElevarmDatePickerDialog #

Component Screenshot
showElevarmDatePickerDialog
import 'package:elevarm_ui/elevarm_ui.dart';

// Show date picker dialog
showElevarmDatePickerDialog(
    context: context,
    initialDisplayDate: DateTime(2022, 1, 1),
    initialSelectedDate: DateTime(2022, 1, 1),
).then((value) {
    print("RESULT: $value");
});

// Show date range picker dialog
showElevarmDatePickerDialog(
    context: context,
    mode: ElevarmDatePickerMode.range,
    initialDisplayDate: DateTime(2022, 1, 1),
    initialSelectedRange: DateTimeRange(
        start: DateTime(2022, 1, 1),
        end: DateTime(2022, 1, 31),
    ),
).then((value) {
    print("RESULT: $value");
});

showElevarmSnackBar and showElevarmSnackBarDesktop #

Component Screenshot
showElevarmSnackBar
showElevarmSnackBarDesktop
import 'package:elevarm_ui/elevarm_ui.dart';

// Show Snackbar (for mobile).
showElevarmSnackBar(
    context: context,
    iconAssetName: ElevarmIconsOutline.plus,
    alignment: Alignment.topRight,
    iconColor: ElevarmColors.success,
    title: 'Perubahan Berhasil Dilakukan',
    subtitle: 'Setoran potongan kotor diubah dengan nilai potongan sebesar 5%',
    positiveText: 'Lihat Detail',
    onPositiveButton: (animationController) {
        animationController?.reverse();
    },
    negativeText: 'Tutup',
    onNegativeButton: (animationController) {
        animationController?.reverse();
    },
    onCloseButton: (animationController) {
        animationController?.reverse();
    },
    onAnimationControllerInit: (animationController) {
        /// Save AnimationController in a state.
        _snackBarAnimationController = animationController;
    },
);

// Show Snackbar (for desktop).
showElevarmSnackBarDesktop(
    context: context,
    iconAssetName: ElevarmIconsOutline.plus,
    alignment: Alignment.topRight,
    iconColor: ElevarmColors.success,
    title: 'Perubahan Berhasil Dilakukan',
    subtitle: 'Setoran potongan kotor diubah dengan nilai potongan sebesar 5%',
    positiveText: 'Lihat Detail',
    onPositiveButton: (animationController) {
        animationController?.reverse();
    },
    negativeText: 'Tutup',
    onNegativeButton: (animationController) {
        animationController?.reverse();
    },
    onCloseButton: (animationController) {
        animationController?.reverse();
    },
    onAnimationControllerInit: (animationController) {
        /// Save AnimationController in a state.
        _snackBarAnimationController = animationController;
    },
);

D. Advanced Component #

ElevarmMobilePaginationFooter #

Component Screenshot
ElevarmMobilePaginationFooter
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmMobilePaginationFooter(
    currentPage: _currentPage,
    numPages: 10,
    onPressedNext: _currentPage < 10 ? _handlePressedNext : null,
    onPressedPrevious:
        _currentPage > 1 ? _handlePressedPrevious : null,
),

ElevarmDektopPaginationFooter #

Component Screenshot
ElevarmDesktopPaginationFooter
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmDesktopPaginationFooter(
    currentPage: _currentPage,
    numPages: 10,
    onPressedNext: _currentPage < 10 ? _handlePressedNext : null,
    onPressedPrevious:
        _currentPage > 1 ? _handlePressedPrevious : null,
    onPressedPage: (int){},
    String previousIconAssetName = ElevarmIconsOutline.chevronLeftDouble,
    String nextIconAssetName = ElevarmIconsOutline.chevronRightDouble,
    double height = 40,
),

ElevarmOtpField #

Component Screenshot
ElevarmOtpField
import 'package:elevarm_ui/elevarm_ui.dart';

OtpFormField(
    length: 4 // length of fields,
    onChanged: (String otp) {} // callback on fields changed,
    onResendOtpCode: () {} // callback on tap resend otp code text,
    duration: 60 // resend timer duration. default: 30
),

E. ThemeData #

ElevarmThemeData.light() #

import 'package:elevarm_ui/elevarm_ui.dart';

MaterialApp(
    theme: ElevarmThemeData.light(),
)

F. Screens #

Elevarm404DesktopScreen #

Screen Screenshot
Elevarm404DesktopScreen
import 'package:elevarm_ui/elevarm_ui.dart';

Elevarm404DesktopScreen(
    prevNavButtonAction: () {} ,
    mainNavButtonAction: () {} ,
    prevNavButtonLabel = 'Kembali Ke Sebelumnya', // Default value
    mainNavButtonLabel = 'Pergi Ke Dashboard', // Default value
    highlight = "Ooppss!", // Default value
    title = "404 Page not Found", // Default value
    description = "Maaf, halaman yang Anda cari tidak ada atau telah dipindahkan.", // Default value
    image = "packages/elevarm_ui/assets/images/not_found_illustration.png", // Default value
),

ElevarmUnderConstructionDesktopScreen #

Screen Screenshot
ElevarmUnderConstructionDesktopScreen
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmUnderConstructionDesktopScreen(
    prevNavButtonAction: () {} ,
    mainNavButtonAction: () {} ,
    prevNavButtonLabel = 'Kembali Ke Sebelumnya', // Default value
    mainNavButtonLabel = 'Pergi Ke Dashboard', // Default value
    highlight = "Under Construction!", // Default value
    title = "Ooopss.. Error!", // Default value
    description = "Halaman yang Anda cari saat ini sedang dalam perbaikan dan akan segera kembali. Pantau terus!", // Default value
    image = "packages/elevarm_ui/assets/images/under_construction_illustration.png", // Default value
),

ElevarmErrorDesktopScreen #

Screen Screenshot
ElevarmErrorDesktopScreen
import 'package:elevarm_ui/elevarm_ui.dart';

ElevarmErrorDesktopScreen(
    prevNavButtonAction: () {} ,
    mainNavButtonAction: () {} ,
    prevNavButtonLabel = 'Kembali Ke Sebelumnya', // Default value
    mainNavButtonLabel = 'Pergi Ke Dashboard', // Default value
    title = "Ooopss.. Error!", // Default value
    description = "Halaman yang Anda cari tidak ada. Berikut ini beberapa tautan bermanfaat:", // Default value Default value
),

Development #

This section is intended for people that wants to develop elevarm_ui package.

Getting Started #

Follow instructions below to install this project on your machine.

  1. Clone this repository to your machine.
  2. Go inside the cloned repository:
    cd elevarm_app

  3. Switch to develop branch:
    git checkout develop

  4. Get all project dependencies:
    flutter pub get

  5. Activate dart_pre_commit by running the following command. dart_pre_commit is pre-commit hooks for formatting and linting code.
    dart run tool/setup_git_hooks.dart


Additional information #

Contact here: elevarm.com
