api_radar 0.0.1

A floating network debugger for Flutter. Inspect API calls (Dio) in real-time on your device.

API Radar 📡

A powerful, floating debugging tool for Flutter that inspects network traffic (Dio) in real-time. Designed for developers who need to debug APIs on the fly without connecting to a computer.

Stop guessing why your API failed. See it instantly on your device.

✨ Features

• Plug & Play: Just wrap your app and add the interceptor.
• Floating HUD: A draggable radar button that lives over your app.
• Live Inspection: See headers, bodies, and status codes instantly.
• Smart Error Detection:
  • 🟢 Green: Success (2xx)
  • 🔴 Red: Error (4xx/5xx) - Instantly alerts you!
  • 🟠 Orange: POST/PUT requests.
• Safe Mode: Does not crash your app on 403/404 errors.
• Copy Support: Long-press any JSON to copy it to your clipboard.

Screenshots 📸

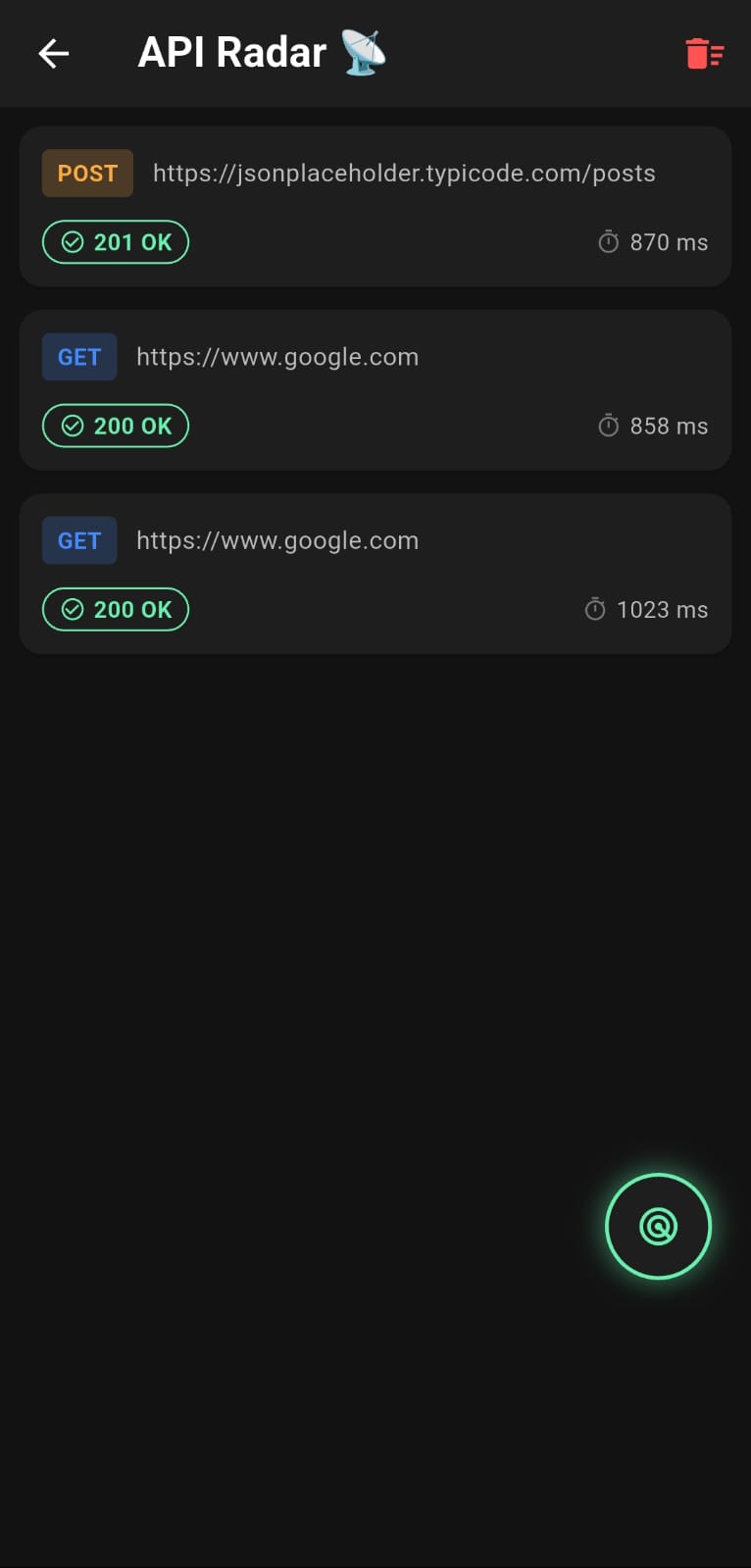

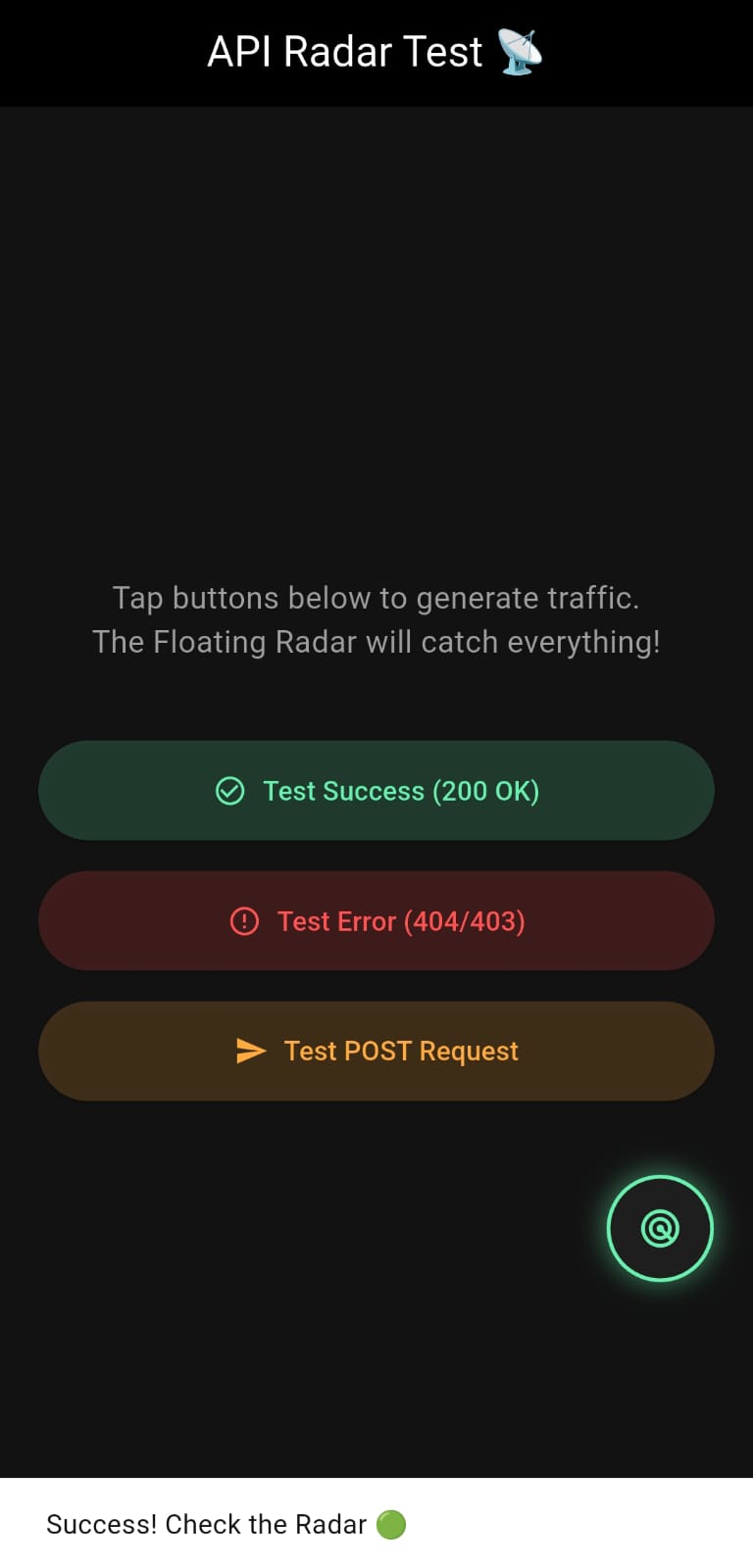

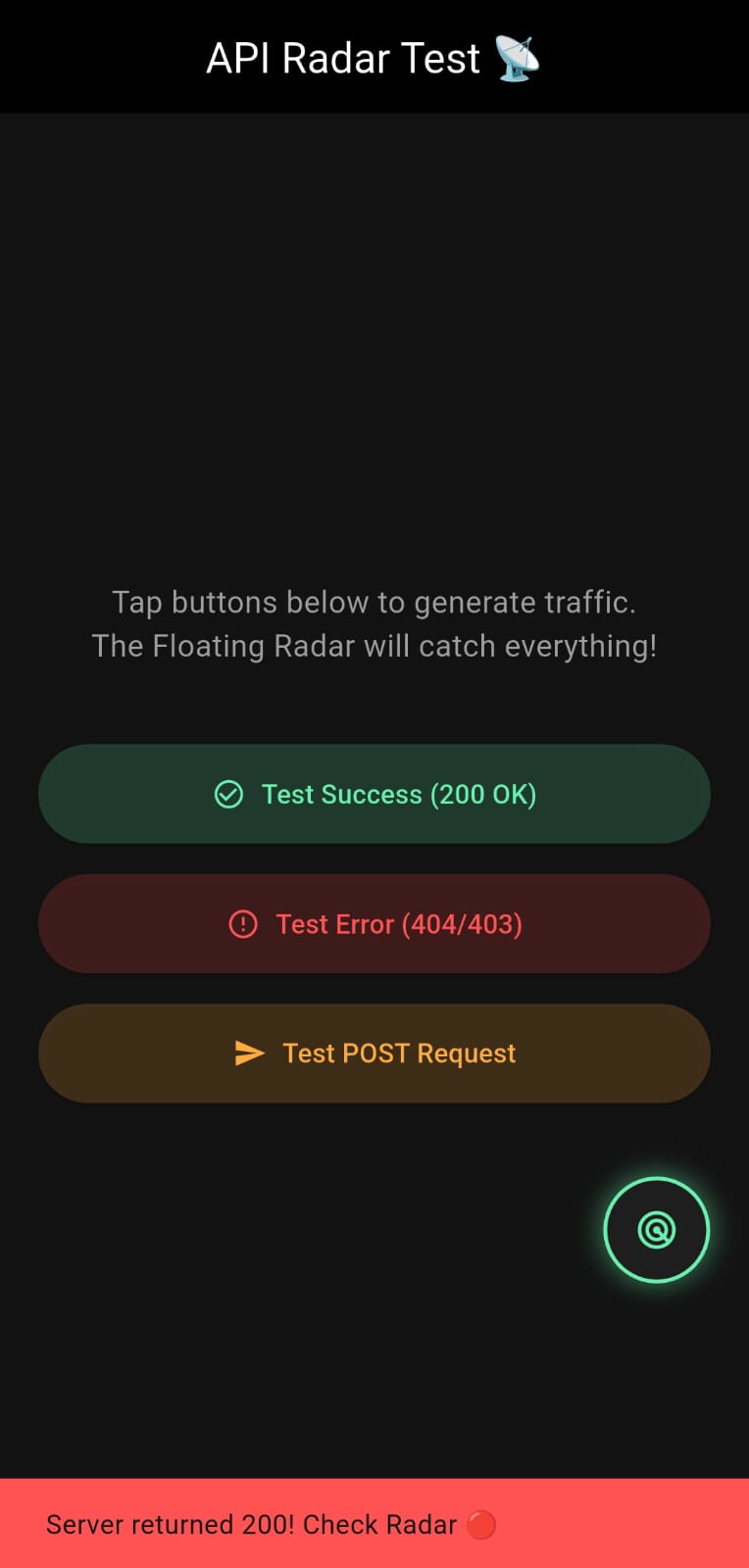

Success State 🟢	Error State 🔴	Dashboard 📋	Response with Icon ⭐

📦 Installation

Add this to your pubspec.yaml:

dependencies:
  api_radar: ^0.0.1

🚀 Usage

1. Wrap your App

• Initialize ApiRadar in your MaterialApp builder. This ensures the radar floats above all screens and can navigate correctly.

import 'package:flutter/material.dart';
import 'package:api_radar/api_radar.dart';

// 1. Create a Global Key for Navigation
final GlobalKey<NavigatorState> navigatorKey = GlobalKey<NavigatorState>();

void main() {
runApp(const MyApp());
}

 class MyApp extends StatelessWidget {
 const MyApp({super.key});

 @override
 Widget build(BuildContext context) {
 return MaterialApp(
 // 2. Pass the key to MaterialApp
 navigatorKey: navigatorKey,

 // 3. Initialize ApiRadar in the builder
   builder: (context, child) {
     return ApiRadar(
       navigatorKey: navigatorKey, // Important: Pass the key here too!
       enabled: true, // Tip: Use kDebugMode to auto-hide in release builds
       child: child!,
     );
   },
   home: const HomePage(),
  );
 }
 }

2. Add the Interceptor

• Add RadarInterceptor to your Dio instance. This connects the "Spy" to your network traffic.

import 'package:dio/dio.dart';
import 'package:api_radar/api_radar.dart';

void setupApi() {
  final dio = Dio();

  // Add the spy 🕵️‍♂️
  dio.interceptors.add(RadarInterceptor());
}

🛠️ Advanced Configuration

Hiding in Release Mode You usually don't want users to see the debug button. Use kDebugMode to hide it automatically.

import 'package:flutter/foundation.dart'; // Import this

// Inside your builder:
ApiRadar(
  enabled: kDebugMode, // True in Debug, False in Release
  navigatorKey: navigatorKey,
  child: child!,
);

Handling 403/404 Errors Gracefully By default, Dio throws an exception for 403/404 errors. To let Radar capture them without crashing your app, configure validateStatus:

final dio = Dio(
  BaseOptions(
    validateStatus: (status) => true, // Accept all status codes
  ),
);
