Zap Sizer

Zap Sizer is a powerful Flutter package designed to simplify responsive design by adapting your UI dynamically based on screen size, device type, and orientation. Whether you're building for mobile, tablet, desktop, or web, Zap Sizer provides precise control and flexibility to scale and render widgets properly across all devices.

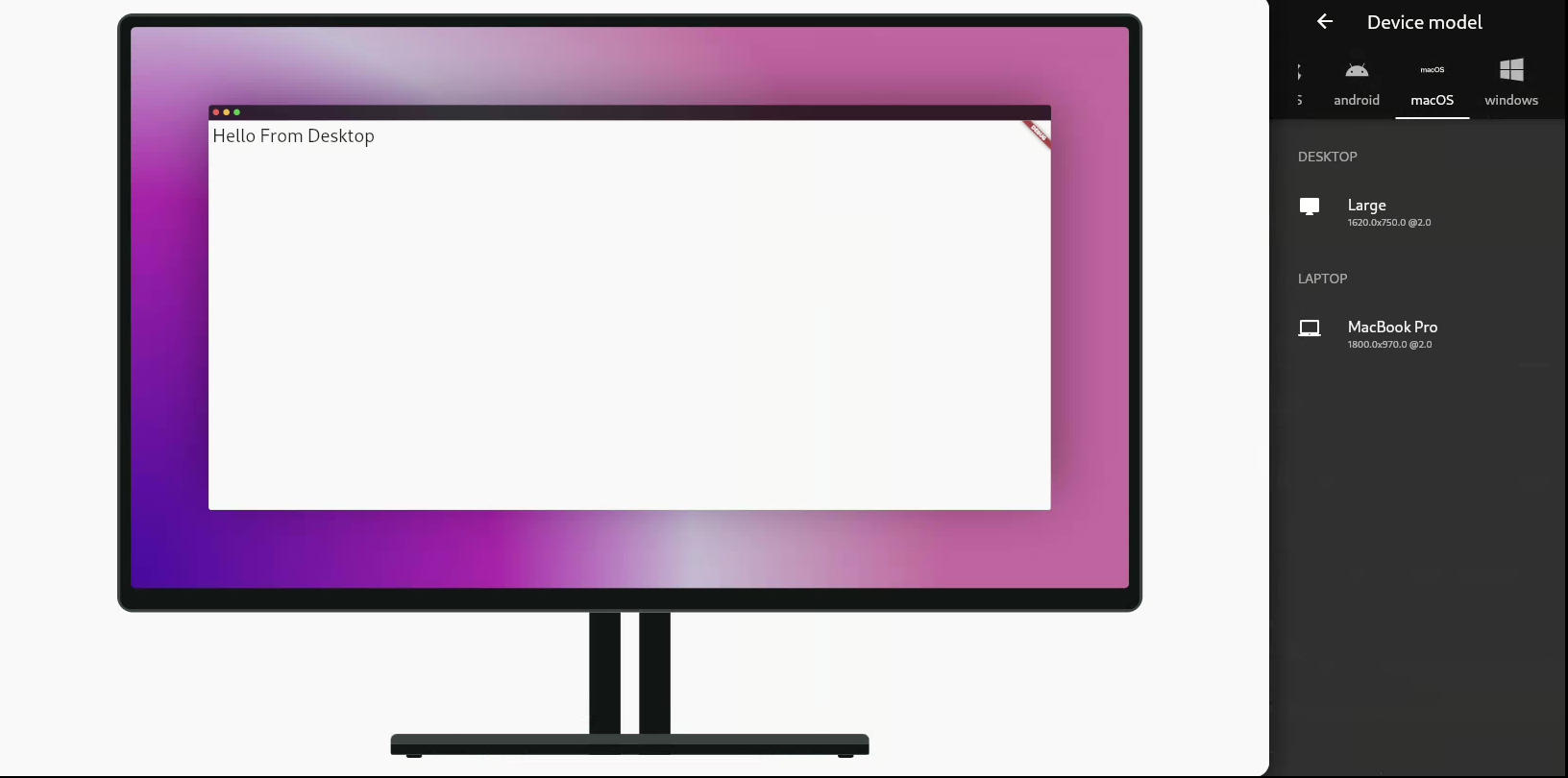

Watch Video

🔧 Getting Started

Add Zap Sizer to your Flutter project:

dependencies:
  zap_sizer:

Then wrap your root widget or screen widget with ZapSizer to initialize the device configuration:

ZapSizer(
  builder: (context, constraints) {
    return MaterialApp(
      home: HomePage(),
    );
  },
);

📱 DeviceData Class

DeviceData is a utility class that stores information about the current device, including screen size, orientation, platform, and resolution.

🔄 Initialization

DeviceData is automatically initialized when you wrap your widget tree with ZapSizer.

ZapSizer(
  builder: (context, constraints) {
    print(DeviceData.deviceType); // Android, iOS, Web, etc.
    print(DeviceData.screenType); // mobile, tablet, desktop
    return YourApp();
  },
);

🧾 Attributes

Property Type Description
deviceType DeviceType Current platform: Android, iOS, Web, macOS, etc.
screenType ScreenType Type of screen based on width: mobile, tablet, desktop
orientation DeviceOrientation Current screen orientation: portrait or landscape
width double Screen width in logical pixels
height double Screen height in logical pixels
pixelRatio double Number of physical pixels per logical pixel
aspectRatio double Ratio of width to height
dotsPerInch double DPI calculated from device pixel ratio (≈160×ratio)
isDarkMode bool Whether the current theme is dark
isMobile bool True if screen is mobile-sized
isTablet bool True if screen is tablet-sized
isDesktop bool True if screen is desktop-sized

🧱 AdaptiveBuilder Widget

The AdaptiveBuilder widget lets you build custom UIs based on the current device and screen configuration.

✅ Usage

AdaptiveBuilder(
  builder: (context, device, orientation, screenType) {
    return Column(
      children: [
        Text('Device: \$device'),
        Text('Orientation: \$orientation'),
        Text('Screen Type: \$screenType'),
      ],
    );
  },
);

🧠 AdaptiveWidget Widget

This widget renders different UIs depending on the platform and screen size.

✅ Usage

AdaptiveWidget(
  desktop: Text("Hello from Desktop"),
  tablet: Text("Hello from Tablet"),
  mobile: Text("Hello from Mobile"),
  android: Text("Hello from Android"),
  ios: Text("Hello from iOS"),
  notSupportedWidget: Text("Not Supported"),
);

📏 ZapResponsive Extension

The ZapResponsive extension adds smart measurement units directly to any number (num) type.

✅ Usage

double height = 50.0.h; // 50% of screen height
double width = 30.0.w;  // 30% of screen width
double fontSize = 16.0.sp; // Scaled font size
double mm = 10.0.mm;    // Convert inches to millimeters

📦 Methods

Method Returns Description
.h double Percentage of screen height
.w double Percentage of screen width
.sp double Scaled font size based on width, height, and pixel ratio
.dp double Value multiplied by device pixel ratio
.cm double Convert inches to centimeters (1 inch = 2.54 cm)
.mm double Convert inches to millimeters (1 inch = 25.4 mm)
.Q double Convert inches to Japanese Q units (1 inch = 101.6 Q)
.pc double Convert inches to picas (1 inch = 6 pc)
.pt double Convert inches to points (1 inch = 72 pt)

🔬 Example

ZapSizer(
  builder: (context, constraints) {
    return Scaffold(
      appBar: AppBar(title: Text("Zap Sizer Example")),
      body: AdaptiveBuilder(
        builder: (context, device, orientation, screen) {
          return Center(
            child: Container(
              width: 80.w, // 80% of screen width
              height: 30.h, // 30% of screen height
              color: Colors.blue,
              child: Text(
                "Responsive Text",
                style: TextStyle(fontSize: 24.sp),
              ),
            ),
          );
        },
      ),
    );
  },
);

✅ Benefits

  • 🔁 Adaptive layouts with minimal code
  • 🧠 Device-specific logic simplified
  • 🖥️ Responsive units for sizes, fonts, and spacing
  • 📱 Works on mobile, desktop, web, tablets
  • 🎯 Accurate DPI and physical unit support (mm, cm, etc.)

📌 Notes

  • Always wrap your app or screen with ZapSizer before using other features.
  • Works seamlessly with any Flutter layout or theme.
  • Can be extended with custom screen type breakpoints if needed.
