TargetedOverlay

Version GitHub license

A simple way to show overlays attached to target widgets.

Usage

TargetedOverlayMixin is mixin that can be used to attach overlays relative to specific widgets. The only things you need to configure is GlobalKeys to the target widgets and register them via the provided functions.

class Test extends StatefulWidget {
  const Test({super.key});

  @override
  State<Test> createState() => _TestState();
}

class _TestState extends State<Test> with TargetedOverlayMixin {
  final _key = GlobalKey();

  @override
  void initState() {
    super.initState();
    scheduleRegisterTargets([_key]);
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Targeted Overlay Example')),
      body: Center(
        child: GestureDetector(
          onTap: () {
            insertOverlay(
              context: context,
              key: _key,
              attachPoint: AttachPoint.topRight,
              offset: const Offset(-15, -12),
              builder: (remove) {
                return TapRegion(
                  onTapOutside: (_) => hideOverlays(
                    context: context,
                    keys: [_key],
                  ),
                  onTapInside: (_) => hideOverlays(
                    context: context,
                    keys: [_key],
                  ),
                  child: Material(
                    textStyle: const TextStyle(color: Colors.black),
                    type: MaterialType.transparency,
                    child: Container(
                      padding: EdgeInsets.symmetric(horizontal: 16, vertical: 8),
                      width: 90,
                      decoration: BoxDecoration(
                        color: Colors.white,
                        borderRadius: BorderRadius.circular(8),
                        border: Border.all(color: Colors.black),
                      ),
                      child: Text('Overlay', textAlign: TextAlign.center),
                    ),
                  ),
                );
              },
            );
          },
          child: Container(
            key: _key,
            width: 120,
            padding: const EdgeInsets.symmetric(vertical: 12, horizontal: 16),
            decoration: BoxDecoration(
              color: Colors.blue.shade100,
              borderRadius: BorderRadius.circular(16),
            ),
            child: const Text('Show Overlay'),
          ),
        ),
      ),
    );
  }
}

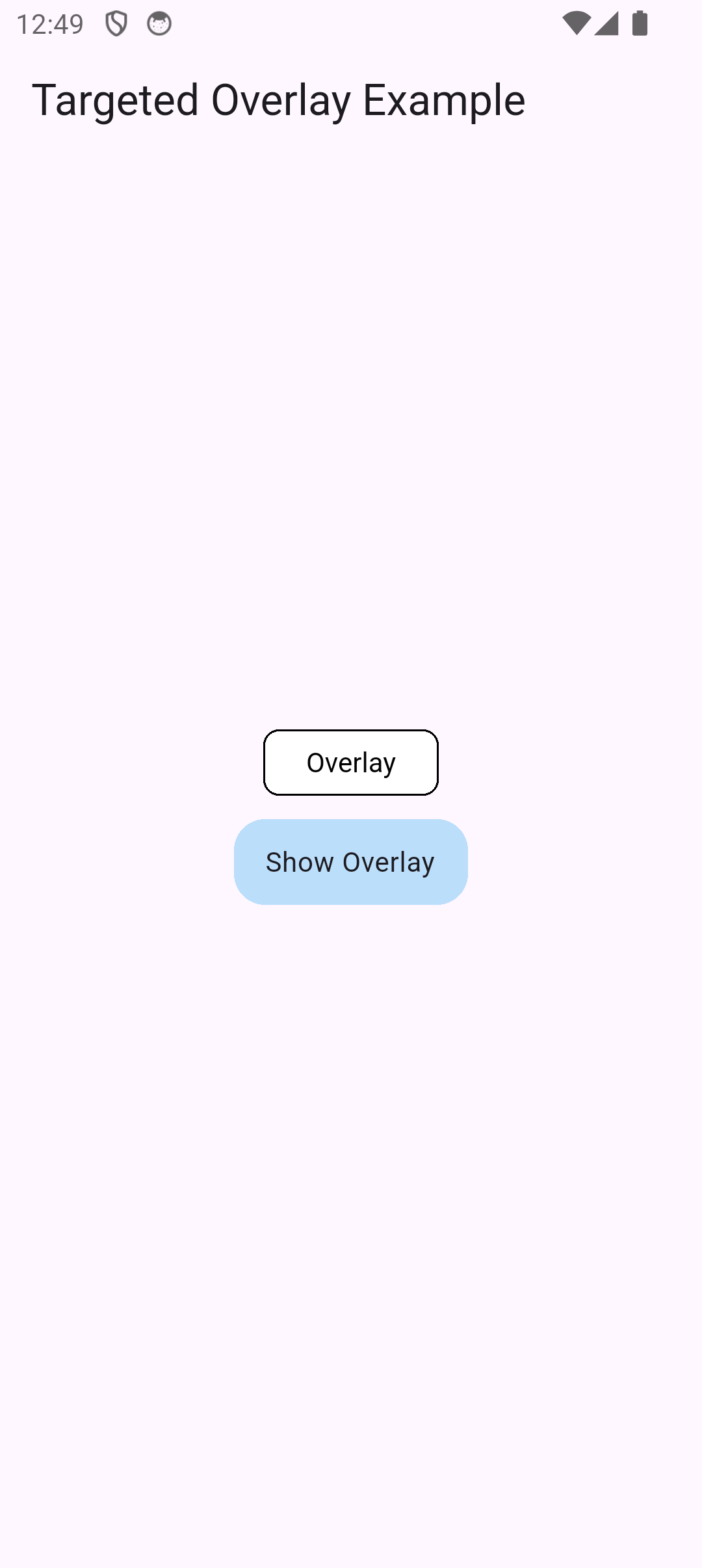

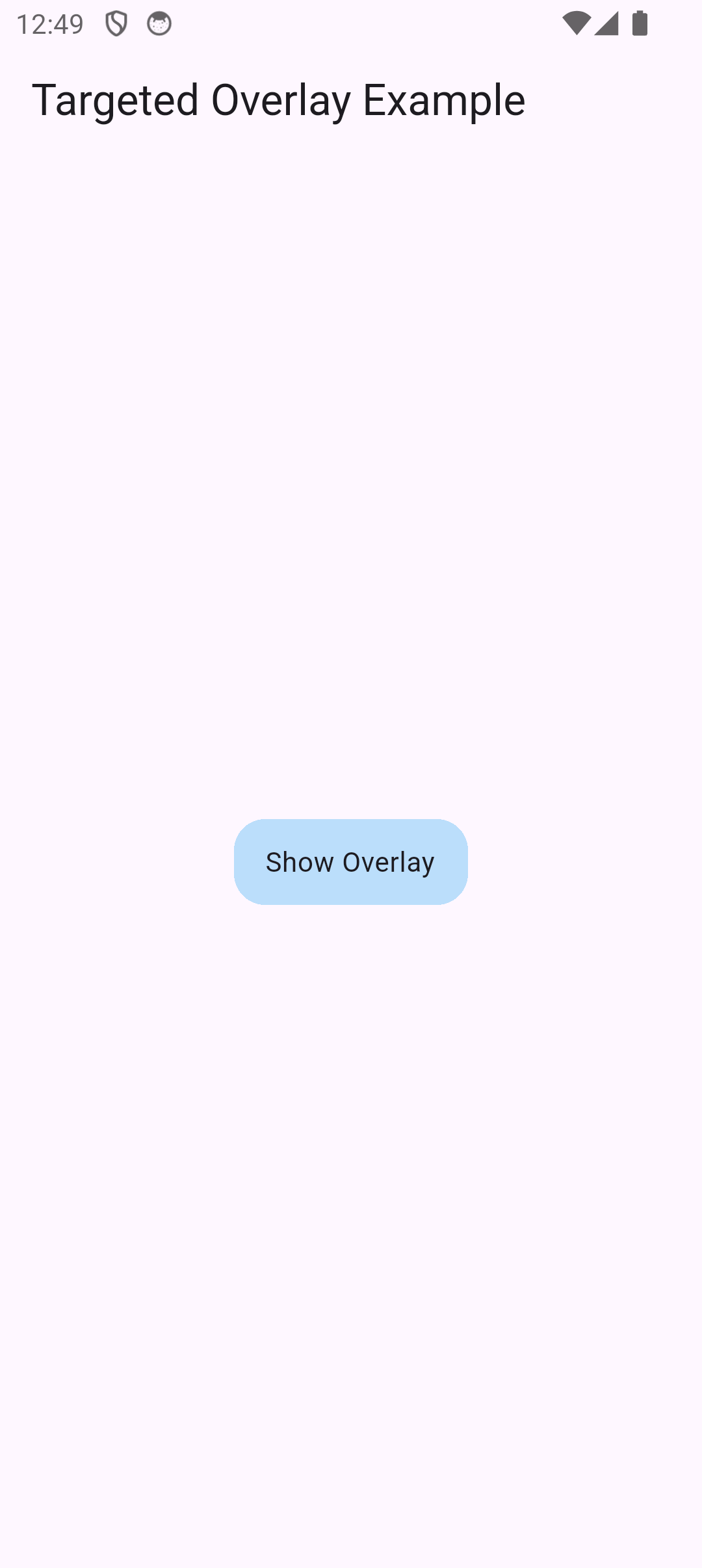

Initial Overlay shown
TargetedOverlay Demo Initial TargetedOverlay Demo Shown

Functions provided

Function name Description
scheduleRegisterTargets Registers the provided GlobalKeys to be used for overlays later. It schedules the registration after current frame has been rendered, as such it is safe to call in initState.
registerTargets Same as scheduleRegisterTargets but without scheduling.
updateTargets Updates the saved configuration for the registered GlobalKeys. This is needed if the layout changed and the widget's position changed.
insertOverlay The appId of the Huawei application. Note that in order to use this on Android, you need to add the logic in determineAndroidStore.
insertPostFrameOverlay Same as insertOverlay but schedules it for after the current frame. This is needed if you e.g. registered the target in initState and want to show it immediately, otherwise the registration will occure after trying to show the overlay.
hideOverlays Hide overlays without actually deregistering them.
clearOverlays Remove overlays and deregister them. No further inserting will do anything unless the keys are registered again.

Parameters for inserting overlays

Parameter Description
context Current BuildContext.
key GlobalKey of the widget the overlay will be attached to.
builder Builder method of the overlay widget.
attachPoint The point of the target widget where the overlay will be attached to.
axisMirrors and offset For precise control of the position, you can mirror the overlay based on the attach point and also manually offset the overlay with exact values.
fadeDuration Duration in which the overlay will fade out when removed.

"Limitation"

The overlay is not centered at the attachPoint, just attached at that coordinate. As such, the overlays will be positioned next to it. Best advice is to play around with the axisMirrors and offset parameters to fine-tune the position.

License

Copyright 2025 Norbert Csörgő

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
