Interceptly

Interceptly is a high-performance, client-agnostic network & realtime inspector for Flutter. It provides real-time traffic visualization for HTTP and bidirectional WebSockets with zero UI jank and minimal memory footprint.

The core interceptly package contains the inspection UI overlay, background isolate processing pipeline, hybrid storage engine, and realtime stream buffer. It is completely independent of specific HTTP/WebSocket networking libraries.

---

Install with AI agent

Paste this into your coding agent (OpenCode, Claude Code, Codex, ...):

Fetch and follow instructions from https://raw.githubusercontent.com/Tuanpluss02/interceptly/main/docs/integration-guide.md

The agent will detect your HTTP clients, add the right packages, wire up the inspector, and verify it works.

---

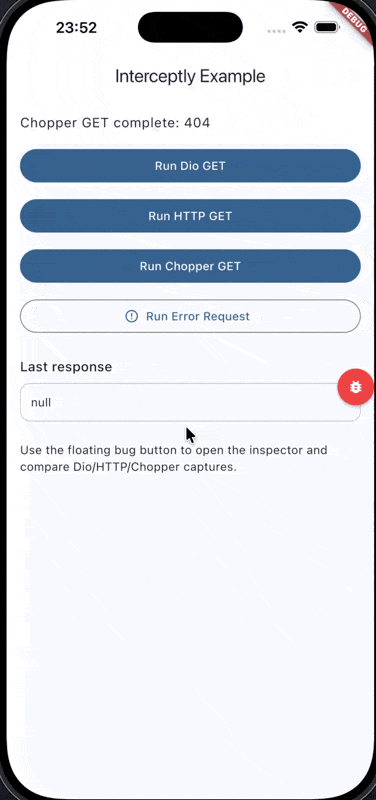

Preview

REST Inspector	Realtime Inspector

---

Features

• Client-Agnostic Core: Zero unnecessary dependencies bundled in core. Use only the adapters your app needs.
• High Performance: Background isolates handle payload parsing and serialization to prevent UI frame drops.
• Realtime WebSocket Support: Live inspection of incoming & outgoing frames (text, JSON, binary) with 60fps throttling and per-session FIFO ring buffering.
• Hybrid Storage: Smart memory management that offloads large payloads to temporary files.

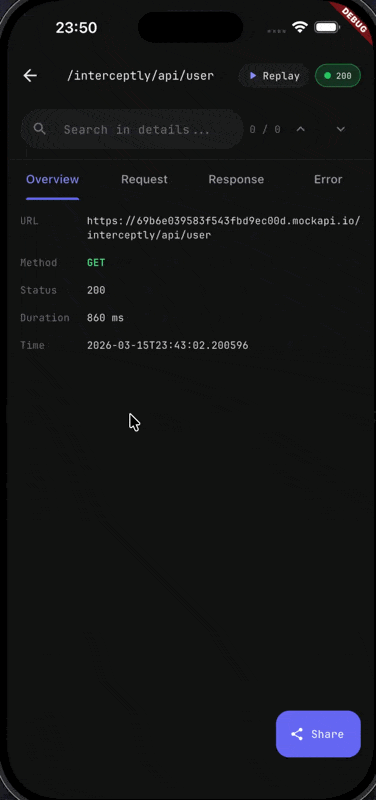

• Postman-like Replay: Built-in request editor to modify headers/body and re-send HTTP requests.
• Network Simulation: Global simulation profiles for Offline, Slow 3G, Fast 4G, or custom latency/bandwidth.
• Advanced Formatters: Specialized views for GraphQL operations, Multipart FormData, cURL generation, and Binary data.
• Master Search: Filter across URLs, headers, bodies, frames, and errors with instant highlight navigation.
• Endpoint Filtering: Synchronously filter URLs with the shouldCapture predicate to bypass analytics or unwanted endpoints.
• Export: Share or export traffic sessions as HAR, cURL commands, or Postman collections.
• AI Assistant Integration (MCP): Query, inspect, and replay traffic directly inside Cursor, Claude Desktop, and Windsurf via interceptly_mcp.

---

Architecture & Satellite Adapters

To inspect network traffic, pair interceptly with the adapter(s) corresponding to your networking client:

Client Library	Adapter Package	Import
Dio	interceptly_dio	import 'package:interceptly_dio/interceptly_dio.dart';
http	interceptly_http	import 'package:interceptly_http/interceptly_http.dart';
Chopper	interceptly_chopper	import 'package:interceptly_chopper/interceptly_chopper.dart';
web_socket_channel	interceptly_web_socket	import 'package:interceptly_web_socket/interceptly_web_socket.dart';
socket_io_client	interceptly_socket_io	import 'package:interceptly_socket_io/interceptly_socket_io.dart';
Model Context Protocol	interceptly_mcp	Standalone CLI for AI coding assistants

---

Installation

Add the core package to your pubspec.yaml:

flutter pub add interceptly

And add any network adapter(s) your application uses:

# Example: Adding Dio and WebSocket adapters
flutter pub add interceptly_dio
flutter pub add interceptly_web_socket

---

Quick Start

1. Initialize Interceptly

Initialize Interceptly in your app startup:

import 'package:flutter/foundation.dart';
import 'package:flutter/material.dart';
import 'package:interceptly/interceptly.dart';

final _navKey = GlobalKey<NavigatorState>();

void main() {
  WidgetsFlutterBinding.ensureInitialized();
  runApp(MaterialApp(navigatorKey: _navKey, home: const MyApp()));

  if (kDebugMode || kProfileMode) {
    Interceptly.init(
      navigatorKey: _navKey,
      settings: const InterceptlySettings(
        maxEntries: 1000,
        maxFramesPerSession: 1000,
      ),
      showFloatingButton: true, // Floating overlay bug button
    );
  }
}

2. Attach Adapters

Dio (package:interceptly_dio)

import 'package:dio/dio.dart';
import 'package:interceptly_dio/interceptly_dio.dart';

final dio = Dio()..interceptors.add(InterceptlyDioInterceptor());

HTTP (package:interceptly_http)

import 'package:http/http.dart' as http;
import 'package:interceptly_http/interceptly_http.dart';

final client = InterceptlyHttpClient(http.Client());
final response = await client.get(Uri.parse('https://api.example.com/data'));

Chopper (package:interceptly_chopper)

import 'package:chopper/chopper.dart';
import 'package:interceptly_chopper/interceptly_chopper.dart';

final chopper = ChopperClient(
  interceptors: [InterceptlyChopperInterceptor()],
);

WebSocket (package:interceptly_web_socket)

import 'package:interceptly_web_socket/interceptly_web_socket.dart';

final channel = InterceptlyWebSocketChannel.connect(
  Uri.parse('wss://echo.websocket.events'),
);

channel.stream.listen((message) {
  print('Received echo: $message');
});

channel.sink.add('Hello Interceptly!');

---

AI Assistant Integration (MCP)

Interceptly includes an official Model Context Protocol (MCP) server, allowing AI coding assistants (Cursor, Claude Desktop, Antigravity, Windsurf) to inspect your running app's network traffic in real time:

dart pub global activate interceptly_mcp

Add to your editor's MCP config:

{
  "mcpServers": {
    "interceptly": {
      "command": "dart",
      "args": [
        "pub",
        "global",
        "run",
        "interceptly_mcp",
        "--allow-mutation"
      ]
    }
  }
}

Once connected, ask your AI in natural language:

• "Why did the last request fail?"
• "Show me the request and response body for /api/v1/auth/login."
• "Export the checkout request as a cURL command."
• "Simulate Slow 3G network conditions."

See interceptly_mcp for full documentation and options.

---

Realtime API for Custom Protocols

For custom socket implementations, streaming clients, or proprietary transports, you can record realtime connections and frames directly using the Interceptly API:

// 1. Record connection opening
Interceptly.instance.recordRealtimeConnection(
  id: 'conn_123',
  url: 'wss://my-custom-socket.example.com',
  headers: {'User-Agent': 'FlutterApp'},
);

// 2. Record incoming or outgoing text frames
Interceptly.instance.recordRealtimeFrame(
  RealtimeFrame.text(
    id: RequestId.generate(),
    sessionId: 'conn_123',
    direction: FrameDirection.incoming,
    text: '{"event":"chat_message","body":"Hello!"}',
  ),
);

// 3. Record binary frames
Interceptly.instance.recordRealtimeFrame(
  RealtimeFrame.binary(
    id: RequestId.generate(),
    sessionId: 'conn_123',
    direction: FrameDirection.outgoing,
    bytes: uint8ListPayload,
  ),
);

// 4. Record connection closure
Interceptly.instance.closeRealtimeConnection(
  'conn_123',
  closeCode: 1000,
  closeReason: 'Normal closure',
);

---

Extending Interceptly: Traffic Collectors SPI

Interceptly follows the Bridge / SPI (Service Provider Interface) pattern. If you use a custom networking library (such as gRPC, GraphQL, Ktor bridge, or Socket.IO), you can easily build your own adapter by implementing the contract interfaces without re-implementing timing, simulation, or storage logic:

Custom HTTP Adapter

Delegate lifecycle events to HttpTrafficCollector (from package:interceptly/adapter.dart):

import 'package:interceptly/adapter.dart';

class MyCustomHttpInterceptor {
  MyCustomHttpInterceptor([
    HttpTrafficCollector? collector,
  ])  : collector = collector ?? HttpTrafficCollector.instance;

  final HttpTrafficCollector collector;

  Future<void> onSend(MyCustomRequest req) async {
    // 1. Notify start of request (applies pre-request latency/offline simulation)
    final context = await collector.startRequest(
      method: req.method,
      uri: req.uri,
      headers: req.headers,
      bodyBytes: req.bodyBytes,
      contentType: req.contentType,
    );
    req.extra['interceptly_context'] = context;
  }

  Future<void> onReceive(MyCustomResponse res) async {
    final context = res.request.extra['interceptly_context'] as HttpRequestContext?;
    if (context == null) return;

    // 2. Notify completed response (applies download throttle and records capture)
    await collector.completeResponse(
      context: context,
      statusCode: res.statusCode,
      headers: res.headers,
      bodyBytes: res.bodyBytes,
      responseContentType: res.contentType,
    );
  }

  void onError(MyCustomRequest req, Object error) {
    final context = req.extra['interceptly_context'] as HttpRequestContext?;
    if (context == null) return;

    // 3. Notify request failure
    collector.failRequest(
      context: context,
      error: error,
      errorMessage: error.toString(),
    );
  }
}

Custom Realtime Adapter

For custom WebSockets, SSE streams, or MQTT/Socket.IO connections, delegate to RealtimeTrafficCollector:

import 'package:interceptly/adapter.dart';

class MyCustomRealtimeClient {
  MyCustomRealtimeClient({
    RealtimeTrafficCollector? collector,
  })  : collector = collector ?? RealtimeTrafficCollector.instance;

  final RealtimeTrafficCollector collector;

  void onConnect(String sessionId, Uri endpoint) {
    collector.recordConnection(sessionId: sessionId, uri: endpoint);
  }

  void onMessageReceived(String sessionId, dynamic rawData) {
    collector.recordFrame(
      sessionId: sessionId,
      direction: FrameDirection.incoming,
      type: rawData is String ? FrameType.text : FrameType.binary,
      payload: rawData,
    );
  }

  void onMessageSent(String sessionId, dynamic rawData) {
    collector.recordFrame(
      sessionId: sessionId,
      direction: FrameDirection.outgoing,
      type: rawData is String ? FrameType.text : FrameType.binary,
      payload: rawData,
    );
  }

  void onDisconnect(String sessionId, int? code, String? reason) {
    collector.recordClose(
      sessionId: sessionId,
      closeCode: code,
      closeReason: reason,
    );
  }
}

---

Configuration Reference

All capture parameters and limits are configured via InterceptlySettings:

Parameter	Default	Description
bodyOffloadThreshold	50 KB	Body size above which payloads move from RAM to temporary files
previewTruncationBytes	16 KB	Inline byte budget for pending request rows awaiting a response
maxBodyBytes	5 MB	Hard cap before payload truncation; <= 0 means unlimited
maxUiPreviewBytes	2 MB	Max bytes decoded for UI detail display; <= 0 means unlimited
maxFramesPerSession	1000	Max realtime frames retained per WebSocket connection session
maxQueuedEvents	500	Pending capture events buffered before the background isolate is ready
maxEntries	5000	Maximum network requests/sessions retained in history
pendingTimeout	45 s	Duration after which an unfinished request is marked as timed out
urlDecodeEnabled	true	Decode URL percent-encodings in inspector views
shouldCapture	null	Optional predicate bool Function(String url); returns false to skip capture

---

Network Simulation

Simulate slow or offline network conditions globally:

// Apply built-in profiles
Interceptly.instance.setNetworkSimulation(NetworkSimulationProfile.slow3G);

// Or create a custom profile
Interceptly.instance.setNetworkSimulation(
  const NetworkSimulationProfile(
    name: 'High Latency 2G',
    latencyMs: 800,
    downloadKbps: 250,
    uploadKbps: 100,
  ),
);

// Clear simulation
Interceptly.instance.clearNetworkSimulation();

---

Entry-Point Configuration & Triggers

Interceptly.init Configuration Table

Parameter	Type	Default	Description
navigatorKey	GlobalKey<NavigatorState>	Required	Global navigator key used to mount overlay and push inspector screen
showFloatingButton	bool	true	Whether to display the draggable floating action button overlay
fabChild	Widget?	null	Optional custom widget rendered inside the floating action button
customTrigger	Stream<void>?	null	External event stream to trigger opening the inspector (e.g. shake detector, volume keys, gesture)
settings	InterceptlySettings?	Default settings	Storage thresholds, body caps, filtering predicates, and timeout durations

Overlay & Navigation Triggers

• Route Transition Observer: Set navigatorObservers: [Interceptly.navigatorObserver] on your MaterialApp to ensure the floating overlay button always remains on top across route transitions.
• Custom Trigger Stream: Supply customTrigger: shakeSensorStream to open the inspector on device shake or hardware buttons.
• Custom Button Icon: Pass fabChild: Icon(Icons.bug_report, color: Colors.amber) to customize button appearance.
• Programmatic Control:

  // Open inspector programmatically
  Interceptly.showInspector(context);

  // Temporarily hide or show the floating action button
  Interceptly.hideFloatingButtonForSession();
  Interceptly.showFloatingButtonForSession();
  final isHidden = Interceptly.isFloatingButtonHiddenForSession;

  // Clear all recorded history
  await Interceptly.instance.clear();

  // Remove overlay and cancel trigger subscriptions
  Interceptly.detach();


---

Storage Model

• Small Payloads: Kept in memory for instant responsiveness.
• Large Payloads: Offloaded to temporary files via a background worker isolate.
• Lazy Loading: Payloads are read from disk only when a record is viewed.
• Multi-tiered Limits: Separate caps protect memory footprint during pending requests, stored history, and UI rendering.

Example Application

An interactive Flutter showcase application demonstrating all adapters (Dio, HTTP, Chopper, WebSocket) is provided in the example directory:

cd packages/interceptly/example
flutter run

---

License

MIT License - see LICENSE for details.
